The ASTM A270 TP304 grade covers standard specifications of sanitary modules. Designed with an austenitic composition the ASTM A270 TP304 Tube is manufactured with a superior composition of nickel and chromium. The outstanding content in these tubes gives them enhanced resistance to corrosive and reducing media across stress-induced environments. The ASTM A270 TP304 Tubing has excellent tolerance to oxidative media and showcases enhanced workability and strength. These tubes have good formability and can have threaded, beveled, and plain ends.
The A270 Type 304 grade is generally produced in seamless and welded configurations. The A270 Type 304 Seamless Sanitary Tubing is manufactured via the extrusion process, where hot steel billets are passed through the metal to precisely shape them in the correct dimensions. Designed without welds or seams, these tubes have higher strength and load-bearing capacity compared to the ASTM A270 TP304 Stainless Steel Welded Sanitary Tubing. The welded tubing is; however, cheaper in comparison to seamless tubes and can be shaped in different sizes, which is not possible with the latter. The ASME SA270 Grade 304 Welded Tube is produced as sheets or strips are rolled and subsequently welded in an array of shop welding procedures. The pressurized vessel modules are subject to several tests and screening procedures before they become fit for use in these extreme conditions. ASME SA270 Gr 304 Welded Tube has a long service life and doesn’t deteriorate under any harsh environmental conditions. These tubes can be available in sizes above 12 inches or cut sizes. We have good ties with supply chains allowing us to deliver the best products to your doorstep within a short span of time. For any queries and questions about our products or their pricing point, contact us or visit us for more information.
Table of Content
Type | Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing |
Outer Diameter | 1/2 Inch |
Outer Diameter Tolerance | +/-0.005 Inch +/-0.13MM |
Standard | ASTM A270 A270M |
Wall Thickness | 16 Gauge (0.065 Inch) |
Length | 20 Inch |
Wall Thickness Tolerance | +/-10% |
Length Tolerance | +1/8 Inch / +3.18 MM |
Finish | 20Ra Inner Diameter 32Ra Outer Diameter |
Polish | Mechanical Polished |
Type | Seamless |
Certification | Dairy Grade and 3A – Food |
Mill Test Certificate | EN10204 3.1 |
Per Kg
ASME SA270 Tubing tp304 stainless steel piping ss sanitary pipe
$ 19.51
Per Kg
253ma Welded ASTM A270 TP304 Stainless Steel Tubes for Heat Exchanger
$ 21.68
Per Kg
ASME SA270 Tp304 large diameter thickness 36mm stainless steel tube
$ 30.78

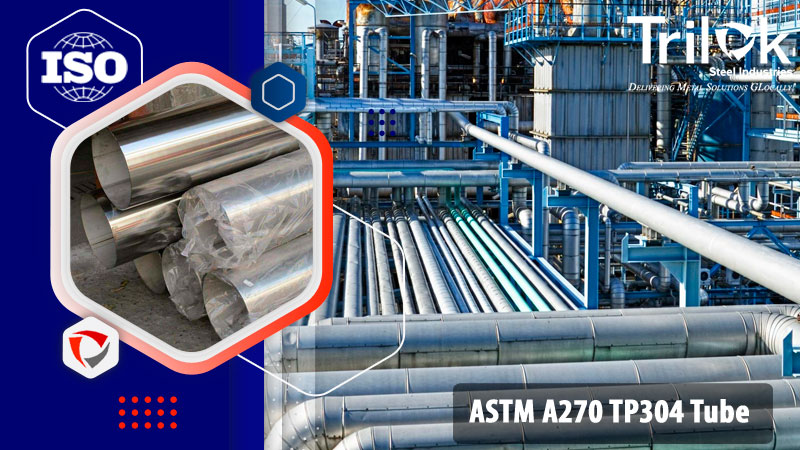

ASTM A270 TP304 Tube
ASME SA270 Grade 304 Welded Tube
A270 Type 304 Seamless Sanitary Tubing
ASTM A270 TP304 Tubing
ASME SA270 Grade 304 Stainless Steel Seamless Tubes
ASME SA270 Gr 304 Welded Tube
Nominal wall | Outer Diameter Size | Outside Diameter | Wall Thickness | Length |
0.065 (1.65) | 2-1/2 (63.5) | +/-0.010 (0.25) | +/-10% | +1/8 (3.18)/-0 |
0.065 (1.65) | 3/4 (19.1) | +/-0.005 (0.13) | +/-10% | +1/8 (3.18)/-0 |
0.065 (1.65) | 1 (25.4) | +/-0.005 (0.13) | +/-10% | +1/8 (3.18)/-0 |
0.083 (2.11) | 4 (101.6) | +/-0.015 (0.38) | +/-10% | +1/8 (3.18)/-0 |
0.065 (1.65) | 1/2 (12.7) | +/-0.005 (0.13) | +/-10% | +1/8 (3.18)/-0 |
0.065 (1.65) | 1-1/2 (38.1) | +/-0.008 (0.20) | +/-10% | +1/8 (3.18)/-0 |
0.065 (1.65) | 2 (50.8) | +/-0.008 (0.20) | +/-10% | +1/8 (3.18)/-0 |
0.065 (1.65) | 3 (76.2) | +/-0.010 (0.25) | +/-10% | +1/8 (3.18)/-0 |
0.109 (2.77) | 6 (152.4) | +/-0.030 (0.76) | +/-10% | +3/16 (4.76)/-0 |
0.109 (2.77) | 8 (203.2) | +/-0.030 (0.76) | +/-10% | +3/16 (4.76)/-0 |
Wall Thickness in inches | Outer Diameter in Inch | Minimum Tensile Strength (PSI) | Minimum Yield Strength (PSI) | Working Pressure | Theoretical Burst Pressure | Theoretical Yield Point | Collapse Pressure |
---|---|---|---|---|---|---|---|
0.020 | 0.250 | 75,000 | 30,000 | 3,571 | 14,286 | 5,714 | 4,416 |
0.028 | 0.250 | 75,000 | 30,000 | 5,412 | 21,649 | 8,660 | 5,967 |
0.035 | 0.250 | 75,000 | 30,000 | 7,292 | 29,167 | 11,667 | 7,224 |
0.049 | 0.250 | 75,000 | 30,000 | 12,089 | 48,355 | 19,342 | 9,455 |
0.065 | 0.250 | 75,000 | 30,000 | 20,313 | 81,250 | 32,500 | 11,544 |
0.020 | 0.375 | 75,000 | 30,000 | 2,239 | 8,955 | 3,582 | 3,029 |
0.028 | 0.375 | 75,000 | 30,000 | 3,292 | 13,166 | 5,266 | 4,145 |
0.035 | 0.375 | 75,000 | 30,000 | 4,303 | 17,213 | 6,885 | 5,077 |
0.049 | 0.375 | 75,000 | 30,000 | 6,634 | 26,534 | 10,614 | 6,816 |
0.065 | 0.375 | 75,000 | 30,000 | 9,949 | 39,796 | 15,918 | 8,597 |
0.020 | 0.500 | 75,000 | 30,000 | 1,630 | 6,522 | 2,609 | 2,304 |
0.028 | 0.500 | 75,000 | 30,000 | 2,365 | 9,459 | 3,784 | 3,172 |
0.035 | 0.500 | 75,000 | 30,000 | 3,052 | 12,209 | 4,884 | 3,906 |
0.049 | 0.500 | 75,000 | 30,000 | 4,571 | 18,284 | 7,313 | 5,304 |
0.065 | 0.500 | 75,000 | 30,000 | 6,588 | 26,351 | 10,541 | 6,786 |
0.083 | 0.500 | 75,000 | 30,000 | 9,319 | 37,275 | 14,910 | 8,307 |
0.020 | 0.625 | 75,000 | 30,000 | 1,282 | 5,128 | 2,051 | 1,859 |
0.028 | 0.625 | 75,000 | 30,000 | 1,845 | 7,381 | 2,953 | 2,568 |
0.035 | 0.625 | 75,000 | 30,000 | 2,365 | 9,459 | 3,784 | 3,172 |
0.049 | 0.625 | 75,000 | 30,000 | 3,487 | 13,947 | 5,579 | 4,335 |
0.065 | 0.625 | 75,000 | 30,000 | 4,924 | 19,697 | 7,879 | 5,591 |
0.083 | 0.625 | 75,000 | 30,000 | 6,781 | 27,124 | 10,850 | 6,910 |
0.095 | 0.625 | 75,000 | 30,000 | 8,190 | 32,759 | 13,103 | 7,734 |
0.109 | 0.625 | 75,000 | 30,000 | 10,043 | 40,172 | 16,069 | 8,639 |
0.028 | 0.750 | 75,000 | 30,000 | 1,513 | 6,052 | 2,421 | 2,156 |
0.035 | 0.750 | 75,000 | 30,000 | 1,930 | 7,721 | 3,088 | 2,669 |
0.049 | 0.750 | 75,000 | 30,000 | 2,818 | 11,273 | 4,509 | 3,664 |
0.065 | 0.750 | 75,000 | 30,000 | 3,931 | 15,726 | 6,290 | 4,749 |
0.083 | 0.750 | 75,000 | 30,000 | 5,330 | 21,318 | 8,527 | 5,905 |
0.095 | 0.750 | 75,000 | 30,000 | 6,362 | 25,446 | 10,179 | 6,637 |
0.109 | 0.750 | 75,000 | 30,000 | 7,683 | 30,733 | 12,293 | 7,453 |
0.120 | 0.750 | 75,000 | 30,000 | 8,824 | 35,294 | 14,118 | 8,064 |
0.020 | 0.875 | 75,000 | 30,000 | 898 | 3,593 | 1,437 | 1,340 |
0.028 | 0.875 | 75,000 | 30,000 | 1,282 | 5,128 | 2,051 | 1,859 |
0.035 | 0.875 | 75,000 | 30,000 | 1,630 | 6,522 | 2,609 | 2,304 |
0.049 | 0.875 | 75,000 | 30,000 | 2,365 | 9,459 | 3,784 | 3,172 |
0.065 | 0.875 | 75,000 | 30,000 | 3,272 | 13,087 | 5,235 | 4,126 |
0.083 | 0.875 | 75,000 | 30,000 | 4,390 | 17,560 | 7,024 | 5,152 |
0.095 | 0.875 | 75,000 | 30,000 | 5,201 | 20,803 | 8,321 | 5,807 |
0.109 | 0.875 | 75,000 | 30,000 | 6,221 | 24,886 | 9,954 | 6,543 |
0.120 | 0.875 | 75,000 | 30,000 | 7,087 | 28,346 | 11,339 | 7,100 |
0.028 | 1.000 | 75,000 | 30,000 | 1,112 | 4,449 | 1,780 | 1,633 |
0.035 | 1.000 | 75,000 | 30,000 | 1,411 | 5,645 | 2,258 | 2,027 |
0.049 | 1.000 | 75,000 | 30,000 | 2,037 | 8,149 | 3,259 | 2,796 |
0.065 | 1.000 | 75,000 | 30,000 | 2,802 | 11,207 | 4,483 | 3,647 |
0.083 | 1.000 | 75,000 | 30,000 | 3,732 | 14,928 | 5,971 | 4,567 |
0.095 | 1.000 | 75,000 | 30,000 | 4,398 | 17,593 | 7,037 | 5,159 |
0.109 | 1.000 | 75,000 | 30,000 | 5,227 | 20,908 | 8,363 | 5,827 |
0.120 | 1.000 | 75,000 | 30,000 | 5,921 | 23,684 | 9,474 | 6,336 |
0.134 | 1.000 | 75,000 | 30,000 | 6,865 | 27,459 | 10,984 | 6,963 |
0.035 | 1.250 | 75,000 | 30,000 | 1,112 | 4,449 | 1,780 | 1,633 |
0.049 | 1.250 | 75,000 | 30,000 | 1,595 | 6,380 | 2,552 | 2,260 |
0.065 | 1.250 | 75,000 | 30,000 | 2,176 | 8,705 | 3,482 | 2,958 |
0.083 | 1.250 | 75,000 | 30,000 | 2,871 | 11,485 | 4,594 | 3,719 |
0.095 | 1.250 | 75,000 | 30,000 | 3,361 | 13,443 | 5,377 | 4,213 |
0.109 | 1.250 | 75,000 | 30,000 | 3,961 | 15,843 | 6,337 | 4,776 |
0.120 | 1.250 | 75,000 | 30,000 | 4,455 | 17,822 | 7,129 | 5,207 |
0.134 | 1.250 | 75,000 | 30,000 | 5,117 | 20,468 | 8,187 | 5,742 |
0.035 | 1.500 | 75,000 | 30,000 | 918 | 3,671 | 1,469 | 1,367 |
0.049 | 1.500 | 75,000 | 30,000 | 1,311 | 5,243 | 2,097 | 1,896 |
0.065 | 1.500 | 75,000 | 30,000 | 1,779 | 7,117 | 2,847 | 2,487 |
0.083 | 1.500 | 75,000 | 30,000 | 2,333 | 9,333 | 3,733 | 3,136 |
0.095 | 1.500 | 75,000 | 30,000 | 2,719 | 10,878 | 4,351 | 3,559 |
0.109 | 1.500 | 75,000 | 30,000 | 3,188 | 12,754 | 5,101 | 4,043 |
0.120 | 1.500 | 75,000 | 30,000 | 3,571 | 14,286 | 5,714 | 4,416 |
0.134 | 1.500 | 75,000 | 30,000 | 4,079 | 16,315 | 6,526 | 4,881 |
0.148 | 1.500 | 75,000 | 30,000 | 4,610 | 18,439 | 7,375 | 5,336 |
0.035 | 1.750 | 75,000 | 30,000 | 781 | 3,125 | 1,250 | 1,176 |
0.049 | 1.750 | 75,000 | 30,000 | 966 | 3,864 | 1,546 | 1,434 |
0.065 | 1.750 | 75,000 | 30,000 | 1,505 | 6,019 | 2,407 | 2,146 |
0.083 | 1.750 | 75,000 | 30,000 | 1,965 | 7,860 | 3,144 | 2,711 |
0.095 | 1.750 | 75,000 | 30,000 | 2,284 | 9,135 | 3,654 | 3,080 |
0.109 | 1.750 | 75,000 | 30,000 | 2,668 | 10,672 | 4,270 | 3,504 |
0.120 | 1.750 | 75,000 | 30,000 | 2,980 | 11,921 | 4,768 | 3,832 |
0.134 | 1.750 | 75,000 | 30,000 | 3,391 | 13,563 | 5,425 | 4,242 |
0.148 | 1.750 | 75,000 | 30,000 | 3,817 | 15,268 | 6,107 | 4,645 |
0.165 | 1.750 | 75,000 | 30,000 | 4,357 | 17,430 | 6,972 | 5,124 |
0.035 | 2.000 | 75,000 | 30,000 | 680 | 2,720 | 1,088 | 1,032 |
0.049 | 2.000 | 75,000 | 30,000 | 966 | 3,864 | 1,546 | 1,434 |
0.065 | 2.000 | 75,000 | 30,000 | 1,303 | 5,214 | 2,086 | 1,887 |
0.083 | 2.000 | 75,000 | 30,000 | 1,697 | 6,788 | 2,715 | 2,387 |
0.095 | 2.000 | 75,000 | 30,000 | 1,968 | 7,873 | 3,149 | 2,715 |
0.109 | 2.000 | 75,000 | 30,000 | 2,294 | 9,175 | 3,670 | 3,092 |
0.120 | 2.000 | 75,000 | 30,000 | 2,557 | 10,227 | 4,091 | 3,384 |
0.134 | 2.000 | 75,000 | 30,000 | 2,901 | 11,605 | 4,642 | 3,751 |
0.148 | 2.000 | 75,000 | 30,000 | 3,257 | 13,028 | 5,211 | 4,111 |
0.165 | 2.000 | 75,000 | 30,000 | 3,705 | 14,820 | 5,928 | 4,542 |
Grades | Carbon | Phosphorus | Manganese | Sulfur | Chromium | Silicon | Nickel |
TP304 | 0.08 | 0.045 | 2 | 0.03 | 18.0-20.0 | 1 | 8.0-11.0 |
Material | Heat | Tensile Strength | Temperure | Elongation | Yield Strength |
Treatment | Ksi (MPa) | º F(º C) | Ksi (MPa) | ||
TP304 | Solution | 75(515) | 1900 (1040) | 35 | 30(205) |
Grade | Unified Numbering System | Old British | Euronorm | Swedish SS | Japanese Industrial Standards | ||
British Standards | European Standards | No | Name | ||||
304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
Grade | Density | Thermal Conductivity | Electrical Resistivity | Mean Coefficient of Thermal Expansion | Elastic Modulus | Specific Heat | |||
at 100°C | at 500°C | 0-100°C | 0-315°C | 0-538°C | |||||
304 | 8000 | 16.2 | 21.5 | 720 | 17.2 | 17.8 | 18.4 | 193 | 500 |
