ASTM A270 grade covers standard welded, seamless, and heavily cold-welded austenitic and ferritic grades intended for use in sanitary applications. The ASTM A270 Tubing is designed with different chemical constituents giving them enhanced resistance to corrosive and oxidative media across an array of harsh environments. ASTM A270 Sanitary Tube is designed in sizes up to 12 inches having a maximum outer diameter of 300mm. The tubes are very strong and don’t easily deteriorate in stress-induced conditions. The versatile A270 Sanitary Stainless Steel Tubing can be hot as well as cold-rolled to design the items in desired characteristics. Our institution ensures that we supply the best products to all our customers. We have tie-ups with different logistical and supply chains allowing us to supply all our products within a short span of time.
The ASTM A270 Stainless Steel Seamless Tubes are one of the strongest tubes in this range. Designed via an extrusion process, these tubes are produced by passing hot steel billets through metal. The absence of seams on the surface of these tubes propels them to have the outstanding load-bearing capacity in the system. ASME SA 270 Stainless Steel Pipe is designed to work in high-temperature and pressure applications. The pressurized vessel grade is very robust and doesn’t disorient easily under any conditions. The A270 Stainless Steel Tubing can be welded, making use of automated procedures. These tubes can be welded without the need for filler material and prior investigation should be performed on these tubes to ensure that are suitable for use in tough conditions. If you want to avail our products or want to know more about our items, visit any of our outlets or contact us for more information.
Table of Content
Outer Diameter | 1/2 Inch |
Wall Thickness | 16 Gauge |
Length | 20 Inch |
Outer Daimeter Tolerance | +/-0.005 Inch +/-0.13MM |
Standard | ASTM A270 / 3A / A270M |
WT Tolerance | +/-10% |
Length Tolerance | +1/8 Inch +3.18MM |
Material | SS 316, SS 304L, SS 304, SS 316L |
Certification | 3A – Food / Dairy Grade |
Finish | 20Ra Inner Diameter 32Ra Outer Diameter |
Polish | Mechanical Polished |
Type | Seamless |
Mill Test Certificate | EN10204 3.1 |
Per Kg
ASME SA270 TP304 material SS seamless sanitary pipe
$ 6.43
Per Kg
A270 Mirror Polished Seamless Welded Stainless Steel Pipe
$ 11.37
Per Kg
ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch Sanitary Tube
$ 8.27

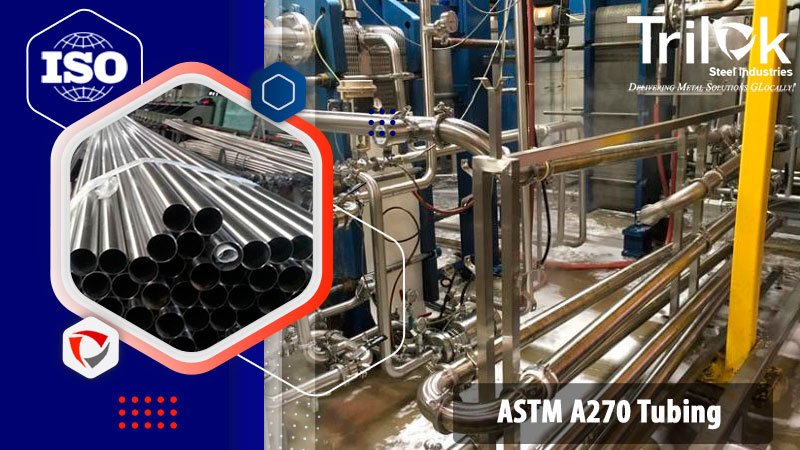

ASTM A270 Tubing
ASME SA 270 Stainless Steel Pipe
ASME SA270 Sanitary Tube
ASME SA270 Seamless Tube
SA 270 Stainless Steel BPE Tubing
A270 Stainless Steel Pipe
ASTM A270 Sanitary Stainless Steel Tubing
A270 Polished Tube
ASME SA270 SS Seamless Tubes
Nominal Wall Thickness | Outside Diameter | Weight | ||
---|---|---|---|---|
Inch | mm | Inch | mm | (kg/m) |
0.065 | 1.65 | 1/2 | 12.7 | 0.454 |
0.065 | 1.65 | 3/4 | 19.1 | 0.717 |
0.065 | 1.65 | 1 | 25.4 | 0.976 |
0.065 | 1.65 | 1 1/2 | 38.1 | 1.50 |
0.065 | 1.65 | 2 | 50.8 | 2.02 |
0.065 | 1.65 | 2 1/2 | 63.5 | 2.54 |
0.065 | 1.65 | 3 | 76.2 | 3.06 |
0.083 | 2.11 | 4 | 101.6 | 5.23 |
0.109 | 2.77 | 6 | 152.4 | 10.32 |
0.109 | 2.77 | 8 | 203.2 |
Material | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Molybdenum | Nitrogen | Niobium | Titanium |
304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | . | |||
304H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | ||||
304L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-13.0 | ||||
310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 24.0-26.0 | 19.0-22.0 | 0.75 | |||
316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | |||
316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | |||
316H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | |||
316Ti | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | 0.10 | 5x(C+N)-0.70 | |
321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 0.10 | 5C-0.70 | ||
321H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 4C-0.60 | |||
347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-13.0 | 10xC-1.00 | |||
347H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-13.0 | 8xC-1.00 |
Grade | Temperure º F(º C) |
Heat Treatment |
Yield Strength. | Tensile Strength | Elongation |
304 | 1900 (1040) | Solution | 30(205) | 75(515) | 35 |
304L | 1900 (1040) | Solution | 25(170) | 70(485) | 35 |
304H | 1900 (1040) | Solution | 30(205) | 75(515) | 35 |
310S | 1900 (1040) | Solution | 30(205) | 75(515) | 35 |
316 | 1900(1040) | Solution | 30(205) | 75(515) | 35 |
316L | 1900(1040) | Solution | 25(170) | 70(485) | 35 |
316H | 1900(1040) | Solution | 30(205) | 75(515) | 35 |
316Ti | 1900(1040) | Solution | 30(205) | 75(515) | 35 |
321 | 1900(1040) | Solution | 30(205) | 75(515) | 35 |
321H | Cold: 2000(1100) Hot: 1925(1050) |
Solution | 30(205) | 75(515) | 35 |
347 | 1900(1040) | Solution | 30(205) | 75(515) | 35 |
347H | Cold: 2000(1100) Hot: 1925(1050) |
Solution | 30(205) | 75(515) |
Grade | UNS (Unified Numbering System) | DIN/ Werkstoff Nr. |
---|---|---|
304L | S30403 | 1.4306 |
304 | S30400 | 1.4301 |
316 | S31600 | 1.4436 |
316L | S31603 | 1.4404 |
Outer Diameter inches | Wall Thcinches | Theoretical Yield Point | Minimum Tensile Strength | Theoretical Burst Pressure | Minimum Yield Strength | Working Pressure (PSI) | Collapse Pressure |
---|---|---|---|---|---|---|---|
0.375 | 0.049 | 10,614 | 75,000 | 26,534 | 30,000 | 6,634 | 6,816 |
2.000 | 0.049 | 1,546 | 75,000 | 3,864 | 30,000 | 966 | 1,434 |
0.250 | 0.020 | 5,714 | 75,000 | 14,286 | 30,000 | 3,571 | 4,416 |
0.500 | 0.035 | 4,884 | 75,000 | 12,209 | 30,000 | 3,052 | 3,906 |
0.250 | 0.035 | 11,667 | 75,000 | 29,167 | 30,000 | 7,292 | 7,224 |
0.250 | 0.049 | 19,342 | 75,000 | 48,355 | 30,000 | 12,089 | 9,455 |
0.250 | 0.065 | 32,500 | 75,000 | 81,250 | 30,000 | 20,313 | 11,544 |
0.250 | 0.028 | 8,660 | 75,000 | 21,649 | 30,000 | 5,412 | 5,967 |
0.375 | 0.020 | 3,582 | 75,000 | 8,955 | 30,000 | 2,239 | 3,029 |
0.375 | 0.028 | 5,266 | 75,000 | 13,166 | 30,000 | 3,292 | 4,145 |
0.375 | 0.035 | 6,885 | 75,000 | 17,213 | 30,000 | 4,303 | 5,077 |
0.375 | 0.065 | 15,918 | 75,000 | 39,796 | 30,000 | 9,949 | 8,597 |
0.500 | 0.020 | 2,609 | 75,000 | 6,522 | 30,000 | 1,630 | 2,304 |
0.500 | 0.028 | 3,784 | 75,000 | 9,459 | 30,000 | 2,365 | 3,172 |
0.500 | 0.049 | 7,313 | 75,000 | 18,284 | 30,000 | 4,571 | 5,304 |
0.500 | 0.065 | 10,541 | 75,000 | 26,351 | 30,000 | 6,588 | 6,786 |
0.500 | 0.083 | 14,910 | 75,000 | 37,275 | 30,000 | 9,319 | 8,307 |
0.625 | 0.020 | 2,051 | 75,000 | 5,128 | 30,000 | 1,282 | 1,859 |
0.625 | 0.028 | 2,953 | 75,000 | 7,381 | 30,000 | 1,845 | 2,568 |
0.625 | 0.035 | 3,784 | 75,000 | 9,459 | 30,000 | 2,365 | 3,172 |
0.625 | 0.049 | 5,579 | 75,000 | 13,947 | 30,000 | 3,487 | 4,335 |
0.625 | 0.065 | 7,879 | 75,000 | 19,697 | 30,000 | 4,924 | 5,591 |
0.625 | 0.083 | 10,850 | 75,000 | 27,124 | 30,000 | 6,781 | 6,910 |
0.625 | 0.095 | 13,103 | 75,000 | 32,759 | 30,000 | 8,190 | 7,734 |
0.625 | 0.109 | 16,069 | 75,000 | 40,172 | 30,000 | 10,043 | 8,639 |
0.750 | 0.028 | 2,421 | 75,000 | 6,052 | 30,000 | 1,513 | 2,156 |
0.750 | 0.035 | 3,088 | 75,000 | 7,721 | 30,000 | 1,930 | 2,669 |
0.750 | 0.049 | 4,509 | 75,000 | 11,273 | 30,000 | 2,818 | 3,664 |
0.750 | 0.065 | 6,290 | 75,000 | 15,726 | 30,000 | 3,931 | 4,749 |
0.750 | 0.083 | 8,527 | 75,000 | 21,318 | 30,000 | 5,330 | 5,905 |
0.750 | 0.095 | 10,179 | 75,000 | 25,446 | 30,000 | 6,362 | 6,637 |
0.750 | 0.109 | 12,293 | 75,000 | 30,733 | 30,000 | 7,683 | 7,453 |
0.750 | 0.120 | 14,118 | 75,000 | 35,294 | 30,000 | 8,824 | 8,064 |
0.875 | 0.020 | 1,437 | 75,000 | 3,593 | 30,000 | 898 | 1,340 |
0.875 | 0.028 | 2,051 | 75,000 | 5,128 | 30,000 | 1,282 | 1,859 |
1.000 | 0.109 | 8,363 | 75,000 | 20,908 | 30,000 | 5,227 | 5,827 |
0.875 | 0.035 | 2,609 | 75,000 | 6,522 | 30,000 | 1,630 | 2,304 |
0.875 | 0.049 | 3,784 | 75,000 | 9,459 | 30,000 | 2,365 | 3,172 |
0.875 | 0.065 | 5,235 | 75,000 | 13,087 | 30,000 | 3,272 | 4,126 |
0.875 | 0.083 | 7,024 | 75,000 | 17,560 | 30,000 | 4,390 | 5,152 |
1.000 | 0.049 | 3,259 | 75,000 | 8,149 | 30,000 | 2,037 | 2,796 |
0.875 | 0.095 | 8,321 | 75,000 | 20,803 | 30,000 | 5,201 | 5,807 |
0.875 | 0.109 | 9,954 | 75,000 | 24,886 | 30,000 | 6,221 | 6,543 |
0.875 | 0.120 | 11,339 | 75,000 | 28,346 | 30,000 | 7,087 | 7,100 |
1.000 | 0.028 | 1,780 | 75,000 | 4,449 | 30,000 | 1,112 | 1,633 |
1.000 | 0.035 | 2,258 | 75,000 | 5,645 | 30,000 | 1,411 | 2,027 |
1.000 | 0.065 | 4,483 | 75,000 | 11,207 | 30,000 | 2,802 | 3,647 |
1.000 | 0.083 | 5,971 | 75,000 | 14,928 | 30,000 | 3,732 | 4,567 |
1.500 | 0.049 | 2,097 | 75,000 | 5,243 | 30,000 | 1,311 | 1,896 |
1.000 | 0.095 | 7,037 | 75,000 | 17,593 | 30,000 | 4,398 | 5,159 |
1.000 | 0.120 | 9,474 | 75,000 | 23,684 | 30,000 | 5,921 | 6,336 |
1.500 | 0.035 | 1,469 | 75,000 | 3,671 | 30,000 | 918 | 1,367 |
1.000 | 0.134 | 10,984 | 75,000 | 27,459 | 30,000 | 6,865 | 6,963 |
1.250 | 0.035 | 1,780 | 75,000 | 4,449 | 30,000 | 1,112 | 1,633 |
1.250 | 0.049 | 2,552 | 75,000 | 6,380 | 30,000 | 1,595 | 2,260 |
1.250 | 0.065 | 3,482 | 75,000 | 8,705 | 30,000 | 2,176 | 2,958 |
1.250 | 0.083 | 4,594 | 75,000 | 11,485 | 30,000 | 2,871 | 3,719 |
1.250 | 0.095 | 5,377 | 75,000 | 13,443 | 30,000 | 3,361 | 4,213 |
1.250 | 0.109 | 6,337 | 75,000 | 15,843 | 30,000 | 3,961 | 4,776 |
1.250 | 0.120 | 7,129 | 75,000 | 17,822 | 30,000 | 4,455 | 5,207 |
1.250 | 0.134 | 8,187 | 75,000 | 20,468 | 30,000 | 5,117 | 5,742 |
1.500 | 0.065 | 2,847 | 75,000 | 7,117 | 30,000 | 1,779 | 2,487 |
1.500 | 0.083 | 3,733 | 75,000 | 9,333 | 30,000 | 2,333 | 3,136 |
1.500 | 0.095 | 4,351 | 75,000 | 10,878 | 30,000 | 2,719 | 3,559 |
1.500 | 0.109 | 5,101 | 75,000 | 12,754 | 30,000 | 3,188 | 4,043 |
1.500 | 0.120 | 5,714 | 75,000 | 14,286 | 30,000 | 3,571 | 4,416 |
1.500 | 0.134 | 6,526 | 75,000 | 16,315 | 30,000 | 4,079 | 4,881 |
1.500 | 0.148 | 7,375 | 75,000 | 18,439 | 30,000 | 4,610 | 5,336 |
1.750 | 0.035 | 1,250 | 75,000 | 3,125 | 30,000 | 781 | 1,176 |
1.750 | 0.049 | 1,546 | 75,000 | 3,864 | 30,000 | 966 | 1,434 |
1.750 | 0.065 | 2,407 | 75,000 | 6,019 | 30,000 | 1,505 | 2,146 |
1.750 | 0.083 | 3,144 | 75,000 | 7,860 | 30,000 | 1,965 | 2,711 |
1.750 | 0.095 | 3,654 | 75,000 | 9,135 | 30,000 | 2,284 | 3,080 |
1.750 | 0.109 | 4,213 | 75,000 | 10,672 | 30,000 | 2,668 | 3,504 |
1.750 | 0.120 | 4,768 | 75,000 | 11,921 | 30,000 | 2,980 | 3,832 |
1.750 | 0.134 | 5,425 | 75,000 | 13,563 | 30,000 | 3,391 | 4,242 |
1.750 | 0.148 | 6,107 | 75,000 | 15,268 | 30,000 | 3,817 | 4,645 |
1.750 | 0.165 | 6,972 | 75,000 | 17,430 | 30,000 | 4,357 | 5,124 |
2.000 | 0.035 | 1,088 | 75,000 | 2,720 | 30,000 | 680 | 1,032 |
2.000 | 0.065 | 2,086 | 75,000 | 5,214 | 30,000 | 1,303 | 1,887 |
2.000 | 0.083 | 2,715 | 75,000 | 6,788 | 30,000 | 1,697 | 2,387 |
2.000 | 0.095 | 3,149 | 75,000 | 7,873 | 30,000 | 1,968 | 2,715 |
2.000 | 0.109 | 3,670 | 75,000 | 9,175 | 30,000 | 2,294 | 3,092 |
2.000 | 0.120 | 4,091 | 75,000 | 10,227 | 30,000 | 2,557 | 3,384 |
2.000 | 0.134 | 4,642 | 75,000 | 11,605 | 30,000 | 2,901 | 3,751 |
2.000 | 0.148 | 5,211 | 75,000 | 13,028 | 30,000 | 3,257 | 4,111 |
2.000 | 0.165 | 5,928 | 75,000 | 14,820 | 30,000 | 3,705 | 4,542 |
