The ASTM A554 type covers standard specifications for stainless steel mechanical tubing. The ASTM A554 TP304 grade is an austenitic grade that is designed consisting of a superior content of nickel and chromium with other constituting alloys. This composition gives these modules enhanced resistance to corrosive and reducing media in the system. ASTM A554 Type 304 Tube works well in moderate to high temperature setups. The versatile grade of tubes have good strength allowing them to be highly stable in the system. The SA554 Grade Mt 304 Tubing is a pressurized vessel grade and is designed in sizes up to 16 inches with wall thicknesses above 0.51mm.

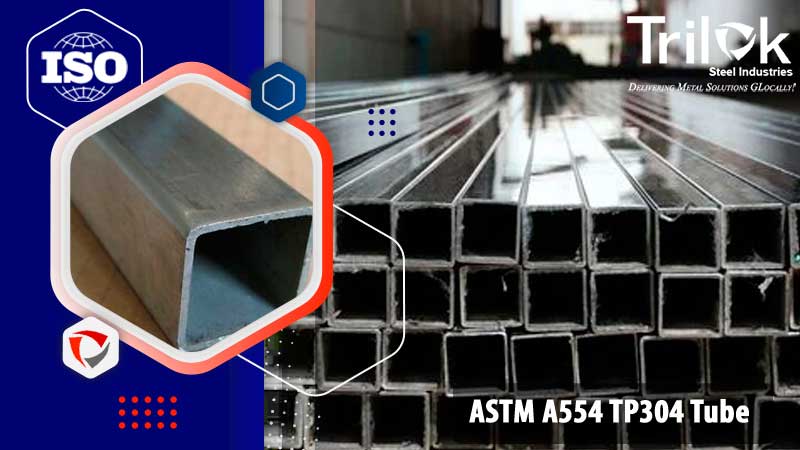

The tubes of the ASTM A554 type TP304 is furnished in a square, round, rectangle, and special shapes as per the requirements of the consumer. ASME SA554 Tp304 Square Pipe is designed for utilization in high temperature setups where normal grades would disorientate. Having a square cross sectional area, these pipes provide stability and support to different mechanical applications. The ASME SA554 Gr 304 Seamless Square Tube is a high-strength grade produced as hot steel billets are passed through the material grade to precisely shape it in the required sizes. These tubes have enhanced load-bearing capacity and can be furnished in hot or cold drawn conditions. SA554 Tp304 Cold Draw Seamless Tubes are processed soon after the hot drawing process at room temperature. These tubes exhibit an outstanding surface finish and have enhanced tolerance compared to the hot rolled counterparts. The A554 Type 304 Welded Tube is a durable grade that is produced as steel is flat-rolled and welded in place with an automated welding process. These tubes don’t require any addition of filler material to weld them in place. For any queries about these products or their pricing, contact us for more information.
Table of Content
Standards Specification | ASME SA554 TP304 Tube |
Standard | JIS, ASTM, EN, SUS, AISI, GB, DIN |
Manufacturing Type | DOM / Welded / Seamless / Fabricated / ERW / CDS / CDW / CEW |
Surface Finish | polished 320 grit, Mill finish, Polished 180 grit |
Wall Thickness in Inch | 0.049 - 0.375 Inch |
Sizes in Inch | ½ - 8 Inch Diameter |
Service | Decoiling, Bending, Punching, Welding, Cutting, Moulding |
Technique | Cold rolled, Cold drawn, Hot rolled, Extrusion Tube |
Per Kg
ASTM A554 grade 304 stainless steel mechanical tubing pipe
$ 1.45
Per Kg
A554 inox welded good polished ss TP304 pipe tube
$ 11.37
Per Kg
ASTM A554 SS304 Square Pipe Inox SS Seamless Tube
$ 1.55
ASME SA554 Grade 304 Seamless Square Tube
ASTM A554 TP304 Tubes
A554 Type 304 Tubing
ASTM A554 Tp304 Stainless Steel Welded Tube
SA554 Grade Mt 304 Tubing
ASTM A554 TP304 Welded Tubes
SA554 Tp304 Cold Draw Seamless Tubes
A554 Grade Mt 304 Tubing
ASME SA554 Tp304 Square Pipe
Grade | Carbon | Nickel | Manganese | Sulfur | Chromium | Phosphorus | Silicon |
304 | 0.08 | 8.0-11.0 | 2 | 0.03 | 18.0-20.0 | 0.045 | 1 |
Material | Temperure | Heat | Yield Strength | Tensile Strength | Elongation |
Min.º F(º C) | Treatment | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
304 | 1900 (1040) | Solution | 30(205) | 75(515) | 35 |
Grade | Unified Numbering System | Euronorm | Old British | Swedish SS | Japanese Industrial Standards | ||
No | Name | British Standards | European Standards | ||||
ASTM A554 TP304 | S30400 | 1.4301 | X5CrNi18-10 | 304S31 | 58E | 2332 | SUS 304 |
Grade |
Mean Coefficient of Thermal Expansion (μm/m/°C) | Density (kg/m3) | Elastic Modulus (GPa) | Specific Heat 0-100°C (J/kg.K) | Thermal Conductivity (W/m.K) | Electrical Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
TP304 | 17.2 | 17.8 | 18.4 | 8000 | 193 | 500 | 16.2 | 21.5 | 720 |
Gauge | 7 | 16 | 14 | 3/8 | 18 | 11 | 1/4 |
Inches | 0.180 | 0.065 | 0.083 | 0.375 | 0.049 | 0.120 | 0.250 |
2-1/2 | 5.68 | 2.72 | 3.88 | 7.67 | |||
6 | 14.07 | 28.53 | 9.46 | 18.77 | |||
8 | 38.55 | 26.03 | |||||
1/2 | 0.39 | 0.30 | |||||
3/4 | 65.00 | 0.81 | 0.50 | 1.13 | |||
1 | 2.17 | 0.83 | 1.03 | 0.63 | 1.45 | ||
1-1/4 | 2.99 | 1.08 | 1.37 | 0.82 | 1.93 | ||
5 | 11.90 | 23.53 | 8.02 | 16.35 | |||
5/8 | 0.40 | 0.38 | |||||
1-1/2 | 3.63 | 1.27 | 1.61 | 0.97 | 2.26 | 4.41 | |
1-3/4 | 3.75 | 1.49 | 1.88 | 1.13 | 2.66 | ||
2 | 4.46 | 1.69 | 2.14 | 1.30 | 3.06 | 6.01 | |
3 | 6.90 | 3.29 | 4.97 | 9.35 | |||
3-1/2 | 8.06 | 5.67 | 10.89 | ||||
4 | 9.27 | 18.52 | 6.26 | 12.68 |
Wall Thcickness in inches | Theoretical Yield Point ** (PSI) | Outer Diameter in inches | Theoretical Burst Pressure * (PSI) | Working Pressure (PSI) 25% of Burst | Tensile Strength (PSI) | Yield Strength (PSI) |
---|---|---|---|---|---|---|
0.049 | 10,614 | 0.375 | 26,534 | 6,634 | 75,000 | 30,000 |
0.028 | 8,660 | 0.250 | 21,649 | 5,412 | 75,000 | 30,000 |
0.035 | 11,667 | 0.250 | 29,167 | 7,292 | 75,000 | 30,000 |
0.049 | 19,342 | 0.250 | 48,355 | 12,089 | 75,000 | 30,000 |
0.065 | 32,500 | 0.250 | 81,250 | 20,313 | 75,000 | 30,000 |
0.020 | 3,582 | 0.375 | 8,955 | 2,239 | 75,000 | 30,000 |
0.028 | 5,266 | 0.375 | 13,166 | 3,292 | 75,000 | 30,000 |
0.020 | 5,714 | 0.250 | 14,286 | 3,571 | 75,000 | 30,000 |
0.035 | 6,885 | 0.375 | 17,213 | 4,303 | 75,000 | 30,000 |
0.065 | 15,918 | 0.375 | 39,796 | 9,949 | 75,000 | 30,000 |
0.020 | 2,609 | 0.500 | 6,522 | 1,630 | 75,000 | 30,000 |
0.028 | 3,784 | 0.500 | 9,459 | 2,365 | 75,000 | 30,000 |
0.035 | 4,884 | 0.500 | 12,209 | 3,052 | 75,000 | 30,000 |
0.065 | 10,541 | 0.500 | 26,351 | 6,588 | 75,000 | 30,000 |
0.083 | 14,910 | 0.500 | 37,275 | 9,319 | 75,000 | 30,000 |
0.020 | 2,051 | 0.625 | 5,128 | 1,282 | 75,000 | 30,000 |
0.028 | 2,953 | 0.625 | 7,381 | 1,845 | 75,000 | 30,000 |
0.049 | 7,313 | 0.500 | 18,284 | 4,571 | 75,000 | 30,000 |
0.035 | 3,784 | 0.625 | 9,459 | 2,365 | 75,000 | 30,000 |
0.049 | 3,784 | 0.875 | 9,459 | 2,365 | 75,000 | 30,000 |
0.049 | 5,579 | 0.625 | 13,947 | 3,487 | 75,000 | 30,000 |
0.065 | 7,879 | 0.625 | 19,697 | 4,924 | 75,000 | 30,000 |
0.083 | 10,850 | 0.625 | 27,124 | 6,781 | 75,000 | 30,000 |
0.095 | 13,103 | 0.625 | 32,759 | 8,190 | 75,000 | 30,000 |
0.109 | 16,069 | 0.625 | 40,172 | 10,043 | 75,000 | 30,000 |
0.028 | 2,421 | 0.750 | 6,052 | 1,513 | 75,000 | 30,000 |
0.109 | 12,293 | 0.750 | 30,733 | 7,683 | 75,000 | 30,000 |
0.035 | 3,088 | 0.750 | 7,721 | 1,930 | 75,000 | 30,000 |
0.049 | 4,509 | 0.750 | 11,273 | 2,818 | 75,000 | 30,000 |
0.065 | 6,290 | 0.750 | 15,726 | 3,931 | 75,000 | 30,000 |
0.083 | 8,527 | 0.750 | 21,318 | 5,330 | 75,000 | 30,000 |
0.095 | 10,179 | 0.750 | 25,446 | 6,362 | 75,000 | 30,000 |
0.120 | 14,118 | 0.750 | 35,294 | 8,824 | 75,000 | 30,000 |
0.020 | 1,437 | 0.875 | 3,593 | 898 | 75,000 | 30,000 |
0.028 | 2,051 | 0.875 | 5,128 | 1,282 | 75,000 | 30,000 |
0.035 | 2,609 | 0.875 | 6,522 | 1,630 | 75,000 | 30,000 |
0.065 | 5,235 | 0.875 | 13,087 | 3,272 | 75,000 | 30,000 |
0.083 | 7,024 | 0.875 | 17,560 | 4,390 | 75,000 | 30,000 |
0.095 | 8,321 | 0.875 | 20,803 | 5,201 | 75,000 | 30,000 |
0.109 | 9,954 | 0.875 | 24,886 | 6,221 | 75,000 | 30,000 |
0.120 | 11,339 | 0.875 | 28,346 | 7,087 | 75,000 | 30,000 |
0.028 | 1,780 | 1.000 | 4,449 | 1,112 | 75,000 | 30,000 |
0.035 | 2,258 | 1.000 | 5,645 | 1,411 | 75,000 | 30,000 |
0.049 | 3,259 | 1.000 | 8,149 | 2,037 | 75,000 | 30,000 |
0.065 | 4,483 | 1.000 | 11,207 | 2,802 | 75,000 | 30,000 |
0.083 | 5,971 | 1.000 | 14,928 | 3,732 | 75,000 | 30,000 |
0.095 | 7,037 | 1.000 | 17,593 | 4,398 | 75,000 | 30,000 |
0.109 | 8,363 | 1.000 | 20,908 | 5,227 | 75,000 | 30,000 |
0.120 | 9,474 | 1.000 | 23,684 | 5,921 | 75,000 | 30,000 |
0.134 | 10,984 | 1.000 | 27,459 | 6,865 | 75,000 | 30,000 |
0.035 | 1,780 | 1.250 | 4,449 | 1,112 | 75,000 | 30,000 |
0.049 | 2,552 | 1.250 | 6,380 | 1,595 | 75,000 | 30,000 |
0.065 | 3,482 | 1.250 | 8,705 | 2,176 | 75,000 | 30,000 |
0.083 | 4,594 | 1.250 | 11,485 | 2,871 | 75,000 | 30,000 |
0.095 | 5,377 | 1.250 | 13,443 | 3,361 | 75,000 | 30,000 |
0.109 | 6,337 | 1.250 | 15,843 | 3,961 | 75,000 | 30,000 |
0.120 | 7,129 | 1.250 | 17,822 | 4,455 | 75,000 | 30,000 |
0.134 | 8,187 | 1.250 | 20,468 | 5,117 | 75,000 | 30,000 |
0.035 | 1,469 | 1.500 | 3,671 | 918 | 75,000 | 30,000 |
0.049 | 2,097 | 1.500 | 5,243 | 1,311 | 75,000 | 30,000 |
0.065 | 2,847 | 1.500 | 7,117 | 1,779 | 75,000 | 30,000 |
0.083 | 3,733 | 1.500 | 9,333 | 2,333 | 75,000 | 30,000 |
0.095 | 4,351 | 1.500 | 10,878 | 2,719 | 75,000 | 30,000 |
0.109 | 5,101 | 1.500 | 12,754 | 3,188 | 75,000 | 30,000 |
0.120 | 5,714 | 1.500 | 14,286 | 3,571 | 75,000 | 30,000 |
0.134 | 6,526 | 1.500 | 16,315 | 4,079 | 75,000 | 30,000 |
0.148 | 7,375 | 1.500 | 18,439 | 4,610 | 75,000 | 30,000 |
0.035 | 1,250 | 1.750 | 3,125 | 781 | 75,000 | 30,000 |
0.049 | 1,546 | 1.750 | 3,864 | 966 | 75,000 | 30,000 |
0.065 | 2,407 | 1.750 | 6,019 | 1,505 | 75,000 | 30,000 |
0.083 | 3,144 | 1.750 | 7,860 | 1,965 | 75,000 | 30,000 |
0.095 | 3,654 | 1.750 | 9,135 | 2,284 | 75,000 | 30,000 |
0.109 | 4,269 | 1.750 | 10,672 | 2,668 | 75,000 | 30,000 |
0.120 | 4,768 | 1.750 | 11,921 | 2,980 | 75,000 | 30,000 |
0.134 | 5,425 | 1.750 | 13,563 | 3,391 | 75,000 | 30,000 |
0.148 | 6,107 | 1.750 | 15,268 | 3,817 | 75,000 | 30,000 |
0.165 | 6,972 | 1.750 | 17,430 | 4,357 | 75,000 | 30,000 |
0.035 | 1,088 | 2.000 | 2,720 | 680 | 75,000 | 30,000 |
0.049 | 1,546 | 2.000 | 3,864 | 966 | 75,000 | 30,000 |
0.065 | 2,086 | 2.000 | 5,214 | 1,303 | 75,000 | 30,000 |
0.083 | 2,715 | 2.000 | 6,788 | 1,697 | 75,000 | 30,000 |
0.095 | 3,149 | 2.000 | 7,873 | 1,968 | 75,000 | 30,000 |
0.109 | 3,670 | 2.000 | 9,175 | 2,294 | 75,000 | 30,000 |
0.120 | 4,091 | 2.000 | 10,227 | 2,557 | 75,000 | 30,000 |
0.134 | 4,642 | 2.000 | 11,605 | 2,901 | 75,000 | 30,000 |
0.148 | 5,211 | 2.000 | 13,028 | 3,257 | 75,000 | 30,000 |
0.165 | 5,928 | 2.000 | 14,820 | 3,705 | 75,000 | 30,000 |
Largest Specified Outer Diameter (in Inches/ mm) |
Outer Diameter | Wall Thickness | ||
inches | mm | inches | mm | |
½ to 1 (12.7 to 25.4) | 00.005 | 00.13 | 00.020 to 0.065 | 00.51 to 1.65 |
½ to 1 (12.7 to 25.4) | 00.010 | 00.25 | 0.065 to 0.134 | 1.65 to 3.40 |
2 to 2½ | 00.012 | 00.30 | 00.032 to 0.065 | 00.81 to 1.65 |
1 to 1½ | 00.008 | 00.20 | 00.025 to 0.065 | 00.64 to 1.65 |
5 to 7½ | 00.030 | 00.76 | 0.250 | 6.35 |
3½ to 5 | 00.020 | 00.51 | 00.035 to 0.165 | 00.89 to 4.19 |
1 to 1½ | 00.010 | 00.25 | 0.065 to 0.134 | 1.65 to 3.40 |
1½ to 2 | 00.010 | 00.25 | 00.025 to 0.049 | 00.64 to 1.24 |
Under ½ (12.7) | 00.004 | 00.10 | 00.020 to 0.049 | 00.51 to 1.24 |
1½ to 2 | 00.011 | 00.28 | 0.049 to 0.083 | 1.24 to 2.11 |
1½ to 2 | 00.012 | 00.30 | 0.083 to 0.149 | 2.11 to 3.78 |
7½ to 16 | 00.00125 in./ in. or mm/ mm of circumstances | all | all | |
2 to 2½ | 00.013 | 00.33 | 0.065 to 0.109 | 1.65 to 2.77 |
2 to 2½ | 00.014 | 00.36 | 0.109 to 0.165 | 2.77 to 4.19 |
2½ to 3½ | 00.014 | 00.36 | 00.032 to 0.165 | 00.81 to 4.19 |
2½ to 3½ | 00.020 | 00.51 | 0.165 | 4.19 |
3½ to 5 | 00.025 | 00.64 | 0.165 | 4.19 |
5 to 7½ | 00.025 | 00.64 | 00.049 to 0.250 | 1.24 to 6.35 |
