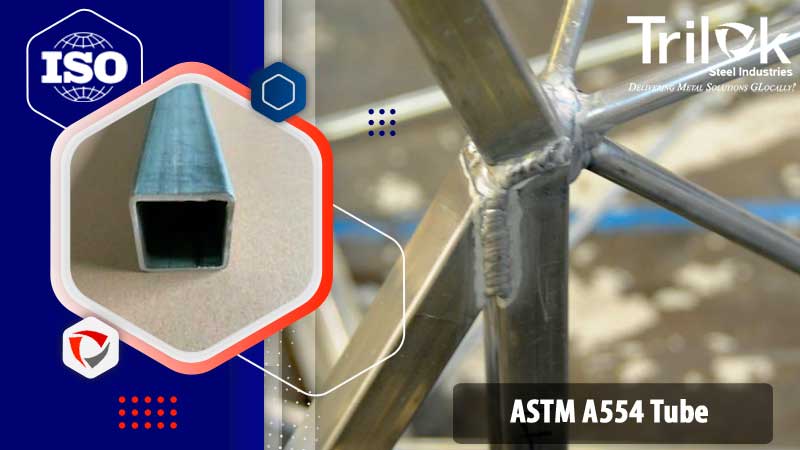

The ASTM A554 grade covers standard specifications for stainless steel mechanical tubing. The ASTM A554 tube is designed with a superior chemical composition consisting of carbon, manganese, phosphorous, sulfur, silicon, chromium, and nickel. The content in these tubes gives them enhanced resistance to corrosive and oxidative media. An SA554 Stainless Steel Tubing has excellent mechanical properties. These tubes have a minimum tensile strength of 75ksi with a minimum yield strength of 30ksi and can be elongated by 35% in the system. The tubes can be designed as square or rectangular shapes. The ASME SA554 SS Square Tubing is run over dies and then welded in place. This tubing can be also produced in seamless configurations. They are designed for use in high-temperature and pressure applications. SA554 SS Rectangular Tubes have enhanced stability and are designed with unequal rectangular cross sections. These tubes are very strong and can be availed in different sizes to meet product requirements. The ASTM A554 Ornamental Tubes is a shiny and aesthetically appealing grade that has excellent strength and durability. These tubes offer a perfect choice to replace traditional products for different applications. They are a common feature in 304 and 316 grades of steel.
The ASTM A554 Welded Mechanical Tubing is a durable grade that is produced as steel is flat-rolled and welded in place with an automated welding process. These tubes don’t require any addition of filler material to weld them in place. We keep stock of different sizes of tubes that can be purchased at any of our outlets. Our supply chain allows us to transport products to your doorstep within a short time frame. For any questions about these products or their pricing, contact us or visit any of our outlets for more information.
Table of Content
Standards Specification | ASME SA554 Tube |
Wall Thickness in Inch | 0.049 - 0.375 Inch |
Manufacturing Type | DOM / Welded / Seamless / Fabricated / ERW / CDS / CDW / CEW |
Surface Finish | polished 320 grit, Mill finish, Polished 180 grit |
Sizes in Inch | ½ - 8 Inch Diameter |
Standard | JIS, ASTM, EN, SUS, AISI, GB, DIN |
Service | Decoiling, Bending, Punching, Welding, Cutting, Moulding |
Technique | Cold rolled, Cold drawn, Hot rolled, Extrusion Tube |
Download PDF: Catalogue 1, Catalogue 2
Per Kg
ASME SA554 standard diameter 141mm 202mm 309mm welded stainless steel tube
$ 13.02
Per Kg
A554 Mirror Polished Square Round Seamless Welded Stainless Steel Pipe
$ 9.81
Per Kg
50.8mm 2inch A554 High Quality Mirror Finish Stainless Steel Round
$ 2.48
ASTM A554 Tubes
ASME SA554 SS Square Tubing
ASTM A554 Ornamental Tubes
ASTM A554 Welded Mechanical Tubing
SA554 SS Rectangular Tubes
SA554 Stainless Steel Tubing
ASTM A554 Stainless Steel Tubing
ASME SA554 Square Tube
ASTM A554 Stainless Steel Polished Tubes
Gauge | 7 | 16 | 3/8 | 14 | 1/4 | 18 | 11 |
---|---|---|---|---|---|---|---|
Inches | 0.180 | 0.065 | 0.375 | 0.083 | 0.250 | 0.049 | 0.120 |
1-3/4 | 3.75 | 1.49 | 1.88 | 1.13 | 2.66 | ||
5/8 | 0.40 | 0.38 | |||||
3/4 | 65.00 | 0.81 | 0.50 | 1.13 | |||
1 | 2.17 | 0.83 | 1.03 | 0.63 | 1.45 | ||
3-1/2 | 8.06 | 10.89 | 5.67 | ||||
6 | 14.07 | 28.53 | 18.77 | 9.46 | |||
8 | 38.55 | 26.03 | |||||
1/2 | 0.39 | 0.30 | |||||
1-1/4 | 2.99 | 1.08 | 1.37 | 0.82 | 1.93 | ||
1-1/2 | 3.63 | 1.27 | 1.61 | 4.41 | 0.97 | 2.26 | |
2 | 4.46 | 1.69 | 2.14 | 6.01 | 1.30 | 3.06 | |
2-1/2 | 5.68 | 2.72 | 7.67 | 3.88 | |||
3 | 6.90 | 3.29 | 9.35 | 4.97 | |||
4 | 9.27 | 18.52 | 12.68 | 6.26 | |||
5 | 11.90 | 23.53 | 16.35 | 8.02 |
Largest Specified Outer Diameter (in Inches/ mm) |
Outer Diameter | Wall Thickness | ||
inches | mm | inches | mm | |
½ to 1 (12.7 to 25.4) | 00.005 | 00.13 | 00.020 to 0.065 | 00.51 to 1.65 |
½ to 1 (12.7 to 25.4) | 00.010 | 00.25 | 0.065 to 0.134 | 1.65 to 3.40 |
2 to 2½ | 00.012 | 00.30 | 00.032 to 0.065 | 00.81 to 1.65 |
1 to 1½ | 00.008 | 00.20 | 00.025 to 0.065 | 00.64 to 1.65 |
5 to 7½ | 00.030 | 00.76 | 0.250 | 6.35 |
3½ to 5 | 00.020 | 00.51 | 00.035 to 0.165 | 00.89 to 4.19 |
1 to 1½ | 00.010 | 00.25 | 0.065 to 0.134 | 1.65 to 3.40 |
1½ to 2 | 00.010 | 00.25 | 00.025 to 0.049 | 00.64 to 1.24 |
Under ½ (12.7) | 00.004 | 00.10 | 00.020 to 0.049 | 00.51 to 1.24 |
1½ to 2 | 00.011 | 00.28 | 0.049 to 0.083 | 1.24 to 2.11 |
1½ to 2 | 00.012 | 00.30 | 0.083 to 0.149 | 2.11 to 3.78 |
7½ to 16 | 00.00125 in./ in. or mm/ mm of circumstances | all | all | |
2 to 2½ | 00.013 | 00.33 | 0.065 to 0.109 | 1.65 to 2.77 |
2 to 2½ | 00.014 | 00.36 | 0.109 to 0.165 | 2.77 to 4.19 |
2½ to 3½ | 00.014 | 00.36 | 00.032 to 0.165 | 00.81 to 4.19 |
2½ to 3½ | 00.020 | 00.51 | 0.165 | 4.19 |
3½ to 5 | 00.025 | 00.64 | 0.165 | 4.19 |
5 to 7½ | 00.025 | 00.64 | 00.049 to 0.250 | 1.24 to 6.35 |
GRADES | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Molybdenum |
304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Material | Yield Strength | Temperure | Tensile Strength | Heat | Elongation |
Ksi (MPa), Min. | Min.º F(º C) | Ksi (MPa), Min. | Treatment | ||
304 | 30(205) | 1900 (1040) | 75(515) | Solution | 35 |
304L | 25(170) | 1900 (1040) | 70(485) | Solution | 35 |
316 | 30(205) | 1900(1040) | 75(515) | Solution | 35 |
316L | 25(170) | 1900(1040) | 70(485) | Solution | 35 |
UNS | EN-standard Steel no. k.h.s DIN |
SAE grade | EN-standard Steel name |
S31600 | 1.4408 | 316 | G-X 6 CrNiMo 18-10 |
S31703 | 1.4438 | 317L | X2CrNiMo18-15-4 |
S40900 | 1.4512 | 409 | X6CrTi12 |
S41000 | 410 | ||
S30100 | 1.4310 | 301 | X10CrNi18-8 |
1.4318 | 301LN | X2CrNiN18-7 | |
S3043 | 1.4307 | 304L | X2CrNi18-9 |
S31653 | 1.4429 | 316LN | X2CrNiMoN17-13-3 |
S31000 | 1.4841 | 310 | X22CrNi2520 |
S30403 | 1.4306 | 304L | X2CrNi19-11 |
S30453 | 1.4311 | 304LN | X2CrNiN18-10 |
S30400 | 1.4301 | 304 | X5CrNi18-10 |
S30409 | 1.4948 | 304H | X6CrNi18-11 |
S30500 | 1.4303 | 305 | X5CrNi18-12 |
312 | X5CrNi30-9 | ||
S31008 | 1.4845 | 310S | X 5 CrNi 2520 |
S32100 | 1.4541 | 321 | X6CrNiTi18-10 |
S32109 | 1.4878 | 321H | X12CrNiTi18-9 |
S31603 | 1.4404 | 316L | X2CrNiMo17-12-2 |
S31600 | 1.4401 | 316 | X5CrNiMo17-12-2 |
S31653 | 1.4406 | 316LN | X2CrNiMoN17-12-2 |
S31603 | 1.4432 | 316L | X2CrNiMo17-12-3 |
S31603 | 1.4435 | 316L | X2CrNiMo18-14-3 |
S31600 | 1.4436 | 316 | X3CrNiMo17-13-3 |
S31635 | 1.4571 | 316Ti | X6CrNiMoTi17-12-2 |
S32304 | 1.4362 | 2304 | X2CrNi23-4 |
S31803/S32205 | 1.4462 | 2205 | X2CrNiMoN22-5-3 |
S32760 | 1.4501 | J405 | X2CrNiMoCuWN25-7-4 |
N08904 | 1.4539 | 904L | X1NiCrMoCu25-20-5 |
N08926 | 1.4529 | X1NiCrMoCuN25-20-7 | |
S31254 | 1.4547 | 254SMO | X1CrNiMoCuN20-18-7 |
