Suppliers of MIL-P-1144 Seamless stainless Steel Pipe, 304 MIL-P-1144 Welded stainless Steel Pipe Manufacturers in Mumbai


Stockholders of Stainless Steel 304L MIL-P-1144 Pipe, Exporters of MIL-P-1144 Corrosion Resistant Annealed Pipe, MIL-P-1144 High Temperature Pipe Manufacturer in India

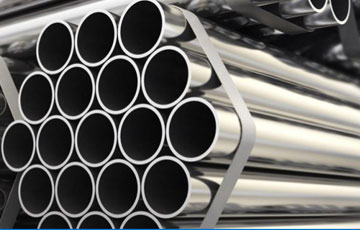

MIL-P-1144 Pipe
MIL-P-1144 Pipe

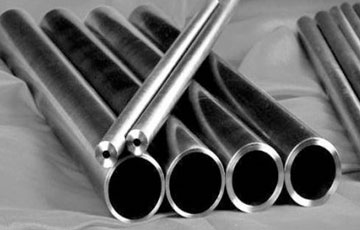

MIL-P-1144 Seamless Pipe
MIL-P-1144 Seamless Pipe

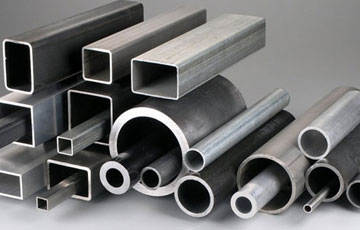

MIL-P-1144 Welded Pipe
MIL-P-1144 Welded Pipe

TRILOK STEEL INDUSTRIES is well known supplier and manufacturer of MIL-P-1144 Pipe. MIL-P-1144 specification covers seamless and welded austenitic steel pipe intended for elevated temperature and general corrosive service, including cryogenic application. Specific temperature limitations are given in MIL-STD-777.


MIL-P-1144 Specification (Seamless & Welded )

MISC SPECGRADE OR PROCESSDESCRIPTION
MIL-P-1144304, 304L, 316, 316L, 321, 347Pipe is intended for high-temperature and hydraulic br other pressure service under general corrosive conditions.

MIL-P-1144 Specification
MIL-P-1144 Nominal Pipe Size Designation2.000 inches
MIL-P-1144 Pipe Wall ThicknessSchedule 10
MIL-P-1144 Pipe First End Style:Plain
MIL-P-1144 Pipe Material304, 304L, 316, 316L, 321, 347
MIL-P-1144 Pipe Construction Seamless , Welded
MIL-P-1144 Pipe Length192.000 inches minimum random and 264.000 inches maximum random
MIL-P-1144 Pipe Heat TreatmentAnnealed
MIL-P-1144 Material Spec66 fed std single material response or aisi 304 assn std single material response or sae 30304 assn std single material response
MIL-P-1144 Pipe Nondefinitive Spec/std Data1 type and 2 class

MaterialSpecification NumberTemper
U.S. Govt.
304 Seamless & WeldedMIL-P-1144Annealed
304L Seamless & WeldedMIL-P-1144Annealed
316 Seamless & WeldedMIL-P-1144Annealed
316L Seamless & WeldedMIL-P-1144Annealed
321 Seamless & WeldedMIL-P-1144Annealed
347 Seamless & WeldedMIL-P-1144Annealed

TRILOK STEEL INDUSTRIES is PED approved MIL-P-1144 Pipe supplier, are the most versatile and widely used stainless steels in aircraft hydraulic fine Pipe. We are latrgest independent stockholder of MIL-P-1144 TP304 Seamless Pipe and MIL-P-1144 TP304 Welded Pipe with huge inventory in ready stock.A straight, one piece metallic MIL-P-1144 pipe in excess of 12 inches (304 mm) in length. MIL-P-1144 pipe may have external or internal threads or may be unthreaded for MIL-P-1144 pipe having external threads 12 inches (304 mm) or less in length see nipple, pipe. For Stainless Steel 304L Mil-p-1144 Pipe pipe having internal threads 12 inches (304 mm) or less in length see coupling, pipe.

MIL-P-1144 Stainless Steel Seamless Pipe Dealer, MIL-P-1144 Welded Pipe Importer, MIL-P-1144 Seamless Stainless Steel Pipe Distributor, MIL-P-1144 Pipe Trader, Distributors of MIL-P-1144 Seamless Pipe

Suppliers of MIL-P-1144 Stainless Steel Seamless Pipe, Buy MIL-P-1144 316L and MIL-P-1144 TPPipe at Cheap Price, MIL-P-1144 High Temperature hydraulic Pipe Supplier in Mumbai, India.



MIL-P-1144 Pipe Sizes / MIL-P-1144 TP 304 Stainless Steel Pipe Sizes

MIL-P-1144 Pipes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general MIL-P-1144 TP304 stainless steel seamless Pipe and MIL-P-1144 TP304L stainless steel seamless Pipe manufactured according to current standards.

MIL-P-1144 Pipe SIZES

PIPE SIZE OD IN INCHES A.S.A. Pipe Schedules
5s510s10203040s & Std. 406080s & E.H. 80100120140160DBL E.H.
1/8.405.035.1383.049.1863.049.1863.068.2447068.24470.95.31450.95.3145
1/4.540.049.2570.065.3297.065.3297.088.4248088.4248.119.5351.119.5351
3/8.675.049.3276.065.4235.065.4235.091.5676.091.5676.126.7338.126.7338
1/2.840.065.5383.065.5383.083.6710.083.6710.109.8510.109.8510.1471.088.1471.088.1871.304.2941.714
3/41.050.065.6838.065.6838.083.8572.083.8572.1131.131.1131.131.1541.474.1541.474.2181.937.3082.441
11.315.065.8678.065.8678.1091.404.1091.404.1331.679.1331.679.1792.172.1792.172.2502.844.3583.659
1-1/41.660.0651.107.0651.107.1091.806.1091.806.1402.273.1402.273.1912.997.1912.997.2503.765.3825.214
1-1/21.900.0651.274.0651.274.1092.085.1092.085.1452.718.1452.718.2003.631.2003.631.2814.859.4006.408
22.375.0651.604.0651.604.1092.638.1092.638.1543.653.1543.653.2185.022.2185.022.3437.444.4369.029
2-1/22.875.0832.475.0832.475.1203.531.1203.531.2035.793.2035.793.2767.661.2767.661.37510.01.55213.70
33.500.0833.029.0833.029.1204.332.1204.332.2167.576.2167.576.30010.25.30010.25.43714.32.60018.58
3-1/24.000.0833.472.0833.472.1204.973.1204.973.2269.109.2269.109.31812.51.31812.51.63622.85
44.500.0833.915.0833.915.1205.613.1205.613.23710.79.23710.79.28112.66.33714.98.33714.98.43719.01.53122.51.67427.54
4-1/25.000.24712.53.35517.61.71032.53
55.563.1096.349.1096.349.1347.770.1347.770.25814.62.25814.62.37520.78.37520.78.50027.04.62532.96.75038.55
66.625.1097.585.1097.585.1349.290.1349.290.28018.97.28018.97.43228.57.43228.57.56236.39.71845.30.86453.16
77.625.30123.57.50038.05.87563.08
Medium Type=Wall thickness in inches Bold Type=Steel weight per foot in pounds

MIL-P-1144 TP304 Pipe SIZES

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
1/4″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
3/8″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
1/2″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
3/4″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
1″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
1 1/4″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
1 1/2″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
2″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
2 1/2″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
3″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
4″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
5″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size
6″available MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe sizeavailable MIL-P-1144 Pipe size

Tube NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
MIL-P-1144 Stainless Steel Tube1/8″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube1/4″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube3/8″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube1/2″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube3/4″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube1″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube1 1/4″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube1 1/2″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube2″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube2 1/2″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube3″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube4″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube5″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size
MIL-P-1144 Stainless Steel Tube6″available MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe sizeavailable MIL-P-1144 stainless steel pipe size

TOP NUMBER: Wall Thickness in Inches
BOTTOM NUMBER: Weight Per Foot in Pound
TubeO.D. INCHES 5S510S10203040S & STD.406080S & E.H.80100120140160DBL. E.H.
1/8.405.035 .1383 .049 .1363 .049 .1363 .068 .2447 .068 .2447 .095 .3145 .095 .3145
1/4.540.049 .2570 .065 .3297 .065 .3297 .088 .4248 .088 .4248 .119 .5351 .119 .5351
3/8.675.049 .3276 .065 .4235 .065 .4235 .091 .5676 .091 .5676 .126 .7388 .126 .7388
1/2.840.065 .5383 .065 .5380 .083 .6710 .083 .6710 .109 .8510 .109 .8510 .147 1.088 .147 1.088 .187 1.304 .294 1.714
3/41.050.065 .6838 .065 .6838 .083 .8572 .083 .8572 .113 1.131 .113 1.131 .154 1.474 .154 1.474 .218 1.937 .308 2.441
11.315.065 .8678 .065 .8678 .109 1.404 .109 1.404 .133 1.679 .133 1.679 .179 2.172 .179 2.172 .250 2.844 .358 3.659
1 1/41.660.065 1.107 .065 1.107 .109 1.806 .109 1.806 .140 2.273 .140 2.273 .191 2.997 .191 2.997 .250 3.765 .382 5.214
1 1/21.900.065 1.274 .065 1.274 .109 2.085 .109 2.085 .145 2.718 .145 2.718 .200 3.631 .200 3.631 .281 4.859 .400 6.408
22.375.065 1.604 .065 1.604 .109 2.638 .109 2.638 .154 3.653 .154 3.653 .218 5.022 .218 5.022 .344 7.462 .436 9.029
2 1/22.875.083 2.475 .083 2.475 .120 3.531 .120 3.531 .203 5.793 .203 5.793 .276 7.661 .276 7.661 .375 10.01 .552 13.70
33.500.083 3.029 .083 3.029 .120 4.332 .120 4.332 .216 7.576 .216 7.576 .300 10.25 .300 10.25 .438 14.32 .600 18.58
3 1/24.000.083 3.472 .083 3.472 .120 4.973 .120 4.973 .226 9.109 .226 9.109 .318 12.51 .318 12.51 .636 22.85
44.500.083 3.915  .083 3.915 .120 5.613 .120 5.613 .237 10.79 .237 10.79 .337 14.98 .337 14.98  .438 19.00 .531 22.51 .674 27.54
4 1/25.000 .247 12.54 .355 17.60
55.563.109 6.349 .109 6.349 .134 7.770 .134 7.770 .258 14.62 .258 14.62 .375 20.78 .375 20.78 .500 20.78 .625 32.96 .750 38.55
66.625.109 7.585 .109 7.585 .134 9.289 .134 9.289 .280 18.97 .280 18.97 .432 28.57 .432 28.57 .562 36.39 .719 43.35 .864 53.16
TubeO.D. INCHES 5S510S10203040S & STD.406080S & E.H.80100120140160DBL. E.H.
77.625.301 23.54 .500 38.04 .875 63.08
88.625.109 9.914 .109 9.914 .148 13.40 .148 13.40 .250 22.36 .277 24.70 .322 28.55 .322 28.55 .406 35.64 .500 43.39 .500 43.39 .594 50.95 .719 60.71 .812 67.76 .906 74.69 .875 72.42
99.625.342 33.91 .500 48.73
1010.75.134 15.19 .134 15.19 .165 18.70 .165 18.70 .250 28.04 .307 34.24 .365 40.48 .365 40.48 .500 54.74 .500 54.74 .594 64.43 .719 77.03 .844 82.29 1.000 104.1 1.125 115.6 1.000 104.1
1111.75.375 45.56 .500 60.08
1212.75.156 21.07 .165 22.18 .180 24.16 .180 24.16 .250 33.38 .330 43.77 .375 49.56 .406 53.52 .562 73.15 .500 65.42 .688 88.63 .844 107.3 1.000 125.5 1.125 136.7 1.312 160.3 1.000 125.5
1414.00.156 23.07 .188 27.73 .250 36.71 .312 45.61 .375 54.57 .375 54.57 .438 63.44 .594 85.05 .500 72.09 .750 106.1 .938 130.9 1.094 150.8 1.250 170.2 1.406 189.1
1616.00.165 27.90 .188 31.75 .250 42.05 .312 52.27 .375 62.58 .375 62.58 .500 82.77 .656 107.5 .500 82.77 .844 136.6 1.031 164.8 1.219 192.4 1.438 223.6 1.594 245.3
1818.00165 31.43 .188 35.76 .250 47.39 .312 58.94 .438 82.15 .375 70.59 .562 104.7 750 138.2 .500 93.45 .938 170.9 1.156 208.0 1.375 244.1 1.562 274.2 1.781 308.5
2020.00.188 39.78 .218 46.05 .250 52.73 .375 78.60 .500 104.1 .375 78.60 .594 123.1 .812 166.4 .500 104.1 1.031 208.9 1.281 256.1 1.500 296.4 1.750 341.1 1.969 379.2
2424.00.218 55.37 .250 63.41 .250 63.41 .375 94.42 .562 140.7 .375 94.42 .688 171.3 .969 238.4 .500 125.5 1.219 296.8 1.531 367.4 1.812 429.4 2.062 483.1 2.344 542.1
2626.00.312 85.60 .500 136.17 .375 102.63 .500 136.17
2828.00.312 92.26 .500 146.85 .625 182.73 .375 110.64
3030.00.250 79.43 .312 98.93 .312 98.93 .500 157.53 .625 196.08 .375 118.65 .500 157.53
3232.00.312 105.59 .500 168.21 .625 209.43 .375 126.66 .688 230.08 .500 168.21
3434.00.312 112.25 .500 178.89 .625 222.78 .375 134.67 .688 244.77
3636.00.312 118.92 .500 189.57 .625 236.13 .375 142.68 .750 282.35 .500 189.57

MIL-P-1144 Welded Stainless Steel Tube Tolerances

NPS Designator Permissible Variations in Outside Diameter
Over In. Under In.
1/8 to 1-1/2, incl1/64 (0.015)1/32 (0.031)
Over 1-1/2 to 4, incl1/32 (0.031)1/32 (0.031)
Over 4 to 8, incl1/16 (0.062)1/32 (0.031)
Over 8 to 18, incl3/23 (0.093)1/32 (0.031)

Nominal Wall Thickness:

NPS Designator

Outside Diameter in.

Schedule 5S in.

Schedule 10S in.

Schedule 40S in.

Schedule 80S in.

1/40.5400.0650.0880.119
3/80.6750.0650.0910.126
1/20.8400.0650.0830.1090.147
3/41.0500.0650.0830.1130.154
1.01.3150.0650.1090.1330.179
1 1/41.6600.0650.1090.1400.191
1 1/21.9000.0650.1090.1450.200
22.3750.0650.1090.1540.218
2 1/22.8750.0830.1200.2030.276
33.5000.0830.1200.2160.300
3 1/24.0000.0830.1200.2260.318
44.5000.0830.1200.2370.337
55.5630.1090.1340.2580.375
66.6250.1090.1340.2800.432
88.6250.1090.1480.3220.500
1010.7500.1340.1650.3650.500
1212.7500.1560.1800.3750.500

Wall Thickness Tolerance MIL-P-1144 Pipes

NPSMIL-P-1144 Pipe Tolerance, %
+
1/8-2 1 /220.012.5
3~18, t/D≤ 5%22.512.5
3~18, t/D> 5%15.012.5
≥ 20, welded17.512.5
≥ 20, seamless, t/D≤ 5%22.512.5
≥ 20, seamless, t/D> 5%15.012.5

MIL-P-1144 Properties

MIL-P-1144 Chemical Composition

PIPE GRADESUNSCMnPSSiCrNiMoTiNbN
MIL-P-1144 TP304S304000.0820.0450.03118.0-20.08.0-11.0
MIL-P-1144 TP304LS304030.03520.0450.03118.0-20.08.0-13.0
MIL-P-1144 TP316S31600.0820.0450.03116.0-18.011.0-14.02.0-3.0
MIL-P-1144 TP316LS316030.03520.0450.03116.0-18.010.0-14.02.0-3.0
MIL-P-1144 TP321S32100.0820.0450.03117.0-19.09.0-12.00.1
MIL-P-1144 TP347S34700.0820.0450.03117.0-19.09.0-13.0

MIL-P-1144 Pipe Mechnaical Properties

MaterialHeatTemperureTensile StrengthYield StrengthElongation %, Min
TreatmentMin.Ksi (MPa), Min.Ksi (MPa), Min.
º F(º C)
MIL-P-1144 TP304Solution1900 (1040)75(515)30(205)35
MIL-P-1144 TP304LSolution1900 (1040)70(485)25(170)35
MIL-P-1144 TP316Solution1900(1040)75(515)30(205)35
MIL-P-1144 TP316LSolution1900(1040)70(485)25(170)35

Available Stock of MIL-P-1144 Pipe, MIL-P-1144 SEAMLESS Pipe

MIL-P-1144 TP304 Stainless Steel PipeMIL-P-1144 TP304 Stainless teel Pipe
MIL-P-1144 stainless steel PipeMIL-P-1144 Seamless Pipe
MIL-P-1144 TP304L Stainless Steel PipeMIL-P-1144 TP 316 Pipe
MIL-P-1144 Seamless Stainless Steel PipeMIL-P-1144 TP 316L Pipe
MIL-P-1144 TP304 Welded Stainless Steel PipeMIL-P-1144 Pipe
304 MIL-P-1144 Stainless Steel Round PipeMIL-P-1144 Grade 304 Pipe
MIL-P-1144 TP304 PipeMIL-P-1144 Grade 321 Pipe
MIL-P-1144 Corrosion Resistant PipeMIL-P-1144 Stainless Steel Seamless Pipe
MIL-P-1144 TP347 Stainless Steel PipeWelded stainless steel Pipe MIL-P-1144
MIL-P-1144 Corrision Resistant Stainless steel PipeMIL-P-1144 High Pressure Hydraulic Pipe
MIL-P-1144 PipeMIL-P-1144 Steel Pipe
MIL-P-1144 Seamless PipesMIL-P-1144 High Pressure Pipe



MIL-P-1144 Pipe Price List

MIL-P-1144 Stainless Steel Pipe

Product Name: MIL-P-1144 Stainless Steel Pipe
Manufacturer Test Certificate
IBR Test Certificate (Form III-D)
Laboratory Test Certificate from Govt. Approved Lab.
Under Third Party Inspection with Excise Gate Pass to avail
Modvat benefit.

MIL-P-1144 Stainless Steel Pipe Value Added Services

  • Draw & Expansion as per required Size & Length
  • Polish (Electro & Commercial) Heat Treatment
  • Bending
  • Annealed & Pickled
  • Sand Blasting
  • Machining Etc.

Internal and external protection

We perform sandblasting according to SA 2,5 and protect the Tube surfaces from rust using a primer such as clear varnish, epoxy or zinc phosphate, etc. Upon request, we provide Tube protection by means of polyethylene, polypropylene, fibre-cement casing, or with bitumen. All kinds of paint coatings and galvanisation are also available.


MIL-P-1144 Stainless Steel Pipe Advantages

These MIL-P-1144 Stainless Steel Tube grades are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • High strength
  • Resistant to high mechanical stresses
  • Resistant to high pressure
  • Resistant to high temperature
  • Good formability
  • Reusable
  • Corrision Resistant

MIL-P-1144 Pipe Packaging

MIL-P-1144 Pipe shall be properly separated by size’(outside ~~~me~~~, and wall thickness. The ends of MIL-P-1144 Pipe shall be sealed exclude dirt and dust.

MIL-P-1144 Pipe Packaging for shipment. Material shal1 be packaged for shipment in accordance with the methods prescribed in MIL-STD-163.

MIL-P-1144 Marking of shipments. Interior packages and exterior shfpping containers shal1 be marked in accordance with MIL-STO-129. The identification shall include the following information listed in the order shown: Stock No. or other identification number as specified in the purchase document Pipe, Size (diameter), Wall thickness ,Heat No., Type,Class,Quantity contained,Name of manufacturer,Name of contractor (if different from manufacturer),Contract or Order No.

Trilok Steel Industries
