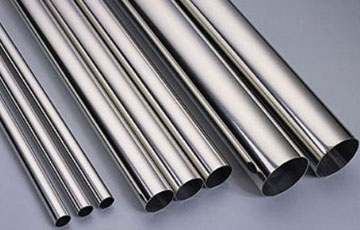

MIL-T-8506 Tube
MIL-T-8506 Tube

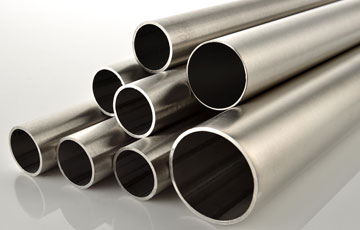

MIL-T-8506 TP304 Seamless Tube
MIL-T-8506 Seamless Tube

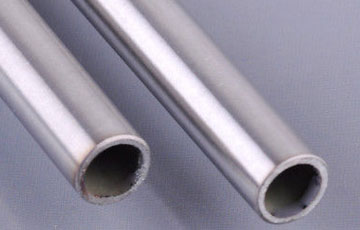

MIL-T-8506 TP304 stainless Tubing
MIL-T-8506 Welded Tube

TRILOK STEEL INDUSTRIES is well known supplier and manufacturer of MIL-T-8506 Tube. MIL-T-8506 specification covers seamless and welded tubing of corrosion resistant steel in the annealed condition. MIL-T-8506 Tubing Intended for use in the fabrication of aircraft parts requiring a high degree of resistance to corrosion. SAE-AMS-T-8506 Tubing not to be used in high pressure hydraulic control systems.


MIL-T-8506 Specification (Seamless & Welded)

MIL-T-8506 Tubing Stock Size Range:
OD:.032"- 5"
Walls:.006"- .250"
Tempers: Annealed

MISC SPEC GRADE OR PROCESS DESCRIPTION
MIL-T-8506 304 Tubing, Steel, Corrosion Resistant, (304) Annealed, Seamless, Welded.

Specification Size OD Range Inches Tolerances
O.D. Wall
Plus Minus Plus Minus

MIL-T-8506 (T-304)
Under 0.094 .001" .001" 10% 10%
0.094 to 0.187 .0015" .0015" 10% 10%
0.188 to 0.499 .003" .003" 10% 10%
0.500 to 0.999 .004" .004" 10% 10%
1.000 to 1.499 .005" .005" 10% 10%
1.500 to 1.999 .006" .006" 10% 10%
2.000 to 2.499 .007" .007" 10% 10%
2.500 to 3.499 .010" .010" 10% 10%
3.500 to 5.000 .015" .015" 10% 10%

Material Specification Number Temper
U.S. Govt. SAE
304 Seamless MIL-T-8504 AMS-5560 Annealed
304 Welded MIL-T-8504 AMS-5565 Annealed

Attribute Value
Specifications AMS-T-8506, MIL-T-8506, AMS 5565
AMS Number AMS T 8506
MIL-T-8506 Tube Special Features Aerospace vehicle hydraulic systems
Misc./Shape Tubing

MIL-T-8506 Specifications
MIL-T-8506 304 Seamless Stainless Tube

MIL-T-8506 Corrosion Resistant Tube
UNS S30400 Alloy 30304 MIL-T-8506


TRILOK STEEL INDUSTRIES is an ISO 9001-2008 MIL-T-8506 Tube supplier, the most versatile and widely used stainless steels in aerospace industry. We stock and distribute a large and diverse inventory of MIL-T-8506 TP304 Seamless Tube and MIL-T-8506 TP304 Welded Tube from industry-leading and widely accepted manufacturers who meet or exceed the stringent technical requirements. MIL-T-8506 Intended for use in the fabrication of aircraft parts requiring a high degree of resistance to corrosion. MIL-T-8506 Tubing not to be used in high pressure hydraulic control systems.

MIL-T-8506 Stainless Steel Seamless Tube Dealer, MIL-T-8506 Welded Tubes Importer, MIL-T-8506 Seamless Stainless Steel Tubing Distributor, MIL-T-8506 Tubing Trader, MIL-T-8506 Seamless Tubing

MIL-T-8506 TP304 Seamless stainless Steel Tubing, MIL-T-8506 Welded stainless Steel Tube, Suppliers of MIL-T-8506 Stainless Steel Seamless tube, MIL-T-8506 aircrfat hydraulic fine tubing Supplier in Mumbai, India.

MIL-T-8506 Tube Sizes / MIL-T-8506 TP 304 Stainless Steel tubing Sizes

MIL-T-8506 Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general MIL-T-8506 TP304 stainless steel seamless tube and MIL-T-8506 TP304 stainless steel welded tube manufactured according to current standards.

MIL-T-8506 TUBING SIZES

MIL-T-8506 TP304 TUBING SIZES

Tube TYPE NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
TP 304 Seamless Stainless Steel Tubing
1/8″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
1/4″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
3/8″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
1/2″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
3/4″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
1″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
1 1/4″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
1 1/2″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
2″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
2 1/2″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
3″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
4″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
5″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
TP 304 Seamless Stainless Steel Tubing
6″
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size
available MIL-T-8506 tube size

Tube NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
MIL-T-8506 Stainless Steel Tube
1/8″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
1/4″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
3/8″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
1/2″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
3/4″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
1″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
1 1/4″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
1 1/2″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
2″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
2 1/2″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
3″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
4″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
5″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
MIL-T-8506 Stainless Steel Tube
6″
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size
available MIL-T-8506 stainless steel pipe size

TOP NUMBER: Wall Thickness in Inches
BOTTOM NUMBER: Weight Per Foot in Pound

Tube SIZE
O.D. INCHES 5S 5 10S 10 20 30 40S & STD. 40 60 80S & E.H. 80 100 120 140 160 DBL. E.H.
1/8 .405 .035 .1383 .049 .1363 .049 .1363 .068 .2447 .068 .2447 .095 .3145 .095 .3145
1/4 .540 .049 .2570 .065 .3297 .065 .3297 .088 .4248 .088 .4248 .119 .5351 .119 .5351
3/8 .675 .049 .3276 .065 .4235 .065 .4235 .091 .5676 .091 .5676 .126 .7388 .126 .7388
1/2 .840 .065 .5383 .065 .5380 .083 .6710 .083 .6710 .109 .8510 .109 .8510 .147 1.088 .147 1.088 .187 1.304 .294 1.714
3/4 1.050 .065 .6838 .065 .6838 .083 .8572 .083 .8572 .113 1.131 .113 1.131 .154 1.474 .154 1.474 .218 1.937 .308 2.441
1 1.315 .065 .8678 .065 .8678 .109 1.404 .109 1.404 .133 1.679 .133 1.679 .179 2.172 .179 2.172 .250 2.844 .358 3.659
1 1/4 1.660 .065 1.107 .065 1.107 .109 1.806 .109 1.806 .140 2.273 .140 2.273 .191 2.997 .191 2.997 .250 3.765 .382 5.214
1 1/2 1.900 .065 1.274 .065 1.274 .109 2.085 .109 2.085 .145 2.718 .145 2.718 .200 3.631 .200 3.631 .281 4.859 .400 6.408
2 2.375 .065 1.604 .065 1.604 .109 2.638 .109 2.638 .154 3.653 .154 3.653 .218 5.022 .218 5.022 .344 7.462 .436 9.029
2 1/2 2.875 .083 2.475 .083 2.475 .120 3.531 .120 3.531 .203 5.793 .203 5.793 .276 7.661 .276 7.661 .375 10.01 .552 13.70
3 3.500 .083 3.029 .083 3.029 .120 4.332 .120 4.332 .216 7.576 .216 7.576 .300 10.25 .300 10.25 .438 14.32 .600 18.58
3 1/2 4.000 .083 3.472 .083 3.472 .120 4.973 .120 4.973 .226 9.109 .226 9.109 .318 12.51 .318 12.51 .636 22.85
4 4.500 .083 3.915  .083 3.915 .120 5.613 .120 5.613 .237 10.79 .237 10.79 .337 14.98 .337 14.98  .438 19.00 .531 22.51 .674 27.54
4 1/2 5.000  .247 12.54 .355 17.60
5 5.563 .109 6.349 .109 6.349 .134 7.770 .134 7.770 .258 14.62 .258 14.62 .375 20.78 .375 20.78 .500 20.78 .625 32.96 .750 38.55
6 6.625 .109 7.585 .109 7.585 .134 9.289 .134 9.289 .280 18.97 .280 18.97 .432 28.57 .432 28.57 .562 36.39 .719 43.35 .864 53.16
Tube SIZE
O.D. INCHES 5S 5 10S 10 20 30 40S & STD. 40 60 80S & E.H. 80 100 120 140 160 DBL. E.H.
7 7.625 .301 23.54 .500 38.04 .875 63.08
8 8.625 .109 9.914 .109 9.914 .148 13.40 .148 13.40 .250 22.36 .277 24.70 .322 28.55 .322 28.55 .406 35.64 .500 43.39 .500 43.39 .594 50.95 .719 60.71 .812 67.76 .906 74.69 .875 72.42
9 9.625 .342 33.91 .500 48.73
10 10.75 .134 15.19 .134 15.19 .165 18.70 .165 18.70 .250 28.04 .307 34.24 .365 40.48 .365 40.48 .500 54.74 .500 54.74 .594 64.43 .719 77.03 .844 82.29 1.000 104.1 1.125 115.6 1.000 104.1
11 11.75 .375 45.56 .500 60.08
12 12.75 .156 21.07 .165 22.18 .180 24.16 .180 24.16 .250 33.38 .330 43.77 .375 49.56 .406 53.52 .562 73.15 .500 65.42 .688 88.63 .844 107.3 1.000 125.5 1.125 136.7 1.312 160.3 1.000 125.5
14 14.00 .156 23.07 .188 27.73 .250 36.71 .312 45.61 .375 54.57 .375 54.57 .438 63.44 .594 85.05 .500 72.09 .750 106.1 .938 130.9 1.094 150.8 1.250 170.2 1.406 189.1
16 16.00 .165 27.90 .188 31.75 .250 42.05 .312 52.27 .375 62.58 .375 62.58 .500 82.77 .656 107.5 .500 82.77 .844 136.6 1.031 164.8 1.219 192.4 1.438 223.6 1.594 245.3
18 18.00 165 31.43 .188 35.76 .250 47.39 .312 58.94 .438 82.15 .375 70.59 .562 104.7 750 138.2 .500 93.45 .938 170.9 1.156 208.0 1.375 244.1 1.562 274.2 1.781 308.5
20 20.00 .188 39.78 .218 46.05 .250 52.73 .375 78.60 .500 104.1 .375 78.60 .594 123.1 .812 166.4 .500 104.1 1.031 208.9 1.281 256.1 1.500 296.4 1.750 341.1 1.969 379.2
24 24.00 .218 55.37 .250 63.41 .250 63.41 .375 94.42 .562 140.7 .375 94.42 .688 171.3 .969 238.4 .500 125.5 1.219 296.8 1.531 367.4 1.812 429.4 2.062 483.1 2.344 542.1
26 26.00 .312 85.60 .500 136.17 .375 102.63 .500 136.17
28 28.00 .312 92.26 .500 146.85 .625 182.73 .375 110.64
30 30.00 .250 79.43 .312 98.93 .312 98.93 .500 157.53 .625 196.08 .375 118.65 .500 157.53
32 32.00 .312 105.59 .500 168.21 .625 209.43 .375 126.66 .688 230.08 .500 168.21
34 34.00 .312 112.25 .500 178.89 .625 222.78 .375 134.67 .688 244.77
36 36.00 .312 118.92 .500 189.57 .625 236.13 .375 142.68 .750 282.35 .500 189.57

MIL-T-8506 Welded Stainless Steel Tube Tolerances

NPS Designator Permissible Variations in Outside Diameter
Over In. Under In.
1/8 to 1-1/2, incl 1/64 (0.015) 1/32 (0.031)
Over 1-1/2 to 4, incl 1/32 (0.031) 1/32 (0.031)
Over 4 to 8, incl 1/16 (0.062) 1/32 (0.031)
Over 8 to 18, incl 3/23 (0.093) 1/32 (0.031)

Nominal Wall Thickness:

Product

NPS Designator

Outside Diameter in.

Schedule 5S in.

Schedule 10S in.

Schedule 40S in.

Schedule 80S in.

MIL-T-8506 Tube 1/4 0.540 0.065 0.088 0.119
MIL-T-8506 Tube 3/8 0.675 0.065 0.091 0.126
MIL-T-8506 Tube 1/2 0.840 0.065 0.083 0.109 0.147
MIL-T-8506 Tube 3/4 1.050 0.065 0.083 0.113 0.154
MIL-T-8506 Tube 1.0 1.315 0.065 0.109 0.133 0.179
MIL-T-8506 Tube 1 1/4 1.660 0.065 0.109 0.140 0.191
MIL-T-8506 Tube 1 1/2 1.900 0.065 0.109 0.145 0.200
MIL-T-8506 Tube 2 2.375 0.065 0.109 0.154 0.218
MIL-T-8506 Tube 2 1/2 2.875 0.083 0.120 0.203 0.276
MIL-T-8506 Tube 3 3.500 0.083 0.120 0.216 0.300
MIL-T-8506 Tube 3 1/2 4.000 0.083 0.120 0.226 0.318
MIL-T-8506 Tube 4 4.500 0.083 0.120 0.237 0.337
MIL-T-8506 Tube 5 5.563 0.109 0.134 0.258 0.375
MIL-T-8506 Tube 6 6.625 0.109 0.134 0.280 0.432
MIL-T-8506 Tube 8 8.625 0.109 0.148 0.322 0.500
MIL-T-8506 Tube 10 10.750 0.134 0.165 0.365 0.500
MIL-T-8506 Tube 12 12.750 0.156 0.180 0.375 0.500

Wall Thickness Tolerance MIL-T-8506 Tubes

NPS MIL-T-8506 Tube Tolerance, %
+
1/8-2 1 /2 20.0 12.5
3~18, t/D≤ 5% 22.5 12.5
3~18, t/D> 5% 15.0 12.5
≥ 20, welded 17.5 12.5
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15.0 12.5

MIL-T-8506 Properties

MIL-T-8506 Chemical Composition

The below table shows the chemical composition of the used for MIL-T-8506 Seamless Stainless Steel Tubing:

Weight % Ni Cr Mn C Si Mo S P Cu
Minimum 8.00 18.00
Maximum 10.50 20.00 2.00 .08 1.00 .75 .03 .045 .75

MIL-T-8506 TUBE Mechanical Properties (.250" OD and over)

Typical Mechanical Properties

Nominal OD Nominal Wall Ultimate KSI Yield KSI Elongation in 2"
.187 and less .016 and less 115 max 30 30
Over .016 75-100 30 40
Over .187 .012 and 110 max 30 37
To .500 incl Less
Over .012 75-100 30 40
Over .500 All 75-100 30 40

Available Stock of MIL-T-8506 TUBE, MIL-T-8506 TP304 SEAMLESS TUBE

MIL-T-8506 TP304 Stainless Steel Tube MIL-T-8506 TP304 Stainless teel Tube
MIL-T-8506 stainless steel Tube MIL-T-8506 Tube
MIL-T-8506 TP304L Stainless Steel Tube MIL-T-8506 TP 304 Annealed Tube
MIL-T-8506 Seamless Stainless Steel Tube MIL-T-8506 TP 304 Tube
MIL-T-8506 TP304 Welded Stainless Steel Tube MIL-T-8506 Seamless Tube
304 MIL-T-8506 Stainless Steel Round Tube MIL-T-8506 Grade 304 Tube
MIL-T-8506  TP304 Tube MIL-T-8506 Gr. 304 Tube
MIL-T-8506 Corrosion Resistant Tube MIL-T-8506 Stainless Steel Seamless Tubing
MIL-T-8506 TP304 Stainless Steel Rectangular Tube Welded stainless steel tube MIL-T-8506
MIL-T-8506 1/8 Hard Stainless steel tube MIL-T-8506 Aerospace tubing
MIL-T-8506 Tubing MIL-T-8506 Steel tubing
AMS-T-8506 Seamless Tubes SAE MIL-T-8506 Tube

MIL-T-8506 TUBE Price List

MIL-T-8506 TP 304 Seamless Stainless Steel Tubing

Product Name: MIL-T-8506 TP 304 Seamless Stainless Steel Tubing
Manufacturer Test Certificate
IBR Test Certificate (Form III-D)
Laboratory Test Certificate from Govt. Approved Lab.
Under Third Party Inspection with Excise Gate Pass to avail
Modvat benefit.

MIL-T-8506 TP 304 Seamless Stainless Steel Tubing Value Added Services

  • Draw & Expansion as per required Size & Length
  • Polish (Electro & Commercial) Heat Treatment
  • Bending
  • Annealed & Pickled
  • Sand Blasting
  • Machining Etc.

Internal and external protection

We perform sandblasting according to SA 2,5 and protect the Tube surfaces from rust using a primer such as clear varnish, epoxy or zinc phosphate, etc. Upon request, we provide Tube protection by means of polyethylene, polypropylene, fibre-cement casing, or with bitumen. All kinds of paint coatings and galvanisation are also available.

MIL-T-8506 TP 304 Seamless Stainless Steel Tubing Advantages

These MIL-T-8506 Stainless Steel Tube grades are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • High strength
  • Resistant to high mechanical stresses
  • Resistant to high pressure
  • Resistant to high temperature
  • Good formability
  • Reusable

MIL-T-8506 Tubing Packaging

MIL-T-8506 tubing shall be properly separated by size’(outside ~~~me~~~, and wall thickness. The ends of MIL-T-8506 tubing shall be sealed exclude dirt and dust.

MIL-T-8506 Tubing Packaging for shipment. Material shal1 be packaged for shipment in accordance with the methods prescribed in MIL-STD-163.

MIL-T-8506 Marking of shipments. Interior packages and exterior shfpping containers shal1 be marked in accordance with MIL-STO-129. The identification shall include the following information listed in the order shown: Stock No. or other identification number as specified in the purchase document TUBING, STEEL, CORROSION-RESISjANT [304), AEROSPACE VEHICLE HYDRAULIC SYSTEM, 1/8 HARD ‘CONDITION MIL-T-8506 Size (diameter), Wall thickness ,Heat No., Type,Class,Quantity contained,Name of manufacturer,Name of contractor (if different from manufacturer),Contract or Order No.

Trilok Steel Industries
