SS 304 Precision Tubing and Stainless Steel Seamless Capillary Tubing exporter and supplier in Mumbai


A capillary tube is an instrument utilized for measurement in different systems. Stainless Steel Capillary Tube is produced making use of rigid material that helps in facilitating capillary action in the system. The action of capillary flow can take place in the vertical or horizontal direction. The Stainless Steel Seamless Capillary Tubing is amongst the strongest type of tubes in this range that is produced via an extrusion process, allowing the tubes to be cognizant with different service requirements. The thickness of these tubes is measured based on their outer diameter. The wall thickness of these tubes has a standard gauge reading between 7 to 22 that corresponds to different thicknesses.

A SS 304 Precision Tubing grade is manufactured in precise dimensions. These tubes have enhanced resistance against corrosive and oxidative media across an array of environments. These tubes are highly precise and have high brightness as they are produced in cold drawn or cold rolled conditions. The SS 1/16 In. Precision Tubing is a precise flexible component that is utilized in creating a soft grip on an array of components. These tubes allow for flow to take place in an upward direction that is against the force of gravity. The 304L Industrial Capillary Tubes is a low carbon grade that showcases outstanding strength and tolerance allowing them to work in harsh environments. These tubes are commonly seen in pressure meters, sheath tubing, Coriolis tubing, sensors, hydraulic tubing systems, pressure transducers, etc. Our institution has contacts with the best supply and logistical chains allowing us to deliver products in a short span of time. For any queries and questions about our products or their price point, contact us or visit us for more.

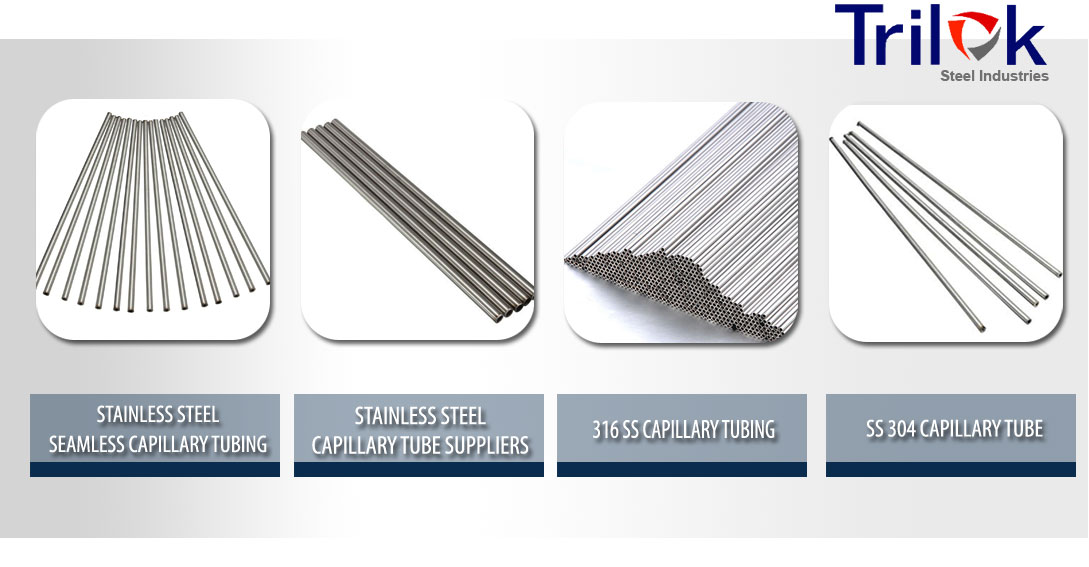

Stainless Steel Capillary Tube

Buy Smallest ID and OD Thin wall Stainless Steel Capillary Pipe & SS 1/16 In. Precision Tubing at competitive pricing in Mumbai.


Stainless Steel Capillary Tube Suppliers

Stainless Steel Capillary Tube Suppliers

SS 304 Capillary Tube

SS 304 Capillary Tube

SS 316L Capillary Tube

SS 316L Capillary Tube

Trilok Steel Industries

Table of Content


Stainless Steel Capillary Tube Specification

Looking for 316 Stainless Steel Capillary Tubing suppliers For HPLC? Wide stock of SS Seamless Precision Tube for UHPLC

Stainless Steel Capillary Tube Size Range 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Stainless Steel Capillary Tube Suppliers Thickness 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Stainless Steel Capillary Tube Wall Thickness 0.08 – 0.2 mm
Stainless Steel Capillary Tube Outside Diameter 0.3 –12.0 mm
Stainless Steel Capillary Tube Specification ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688
Stainless Steel Capillary Tube Material SS 304, SS 304L, SS 316, SS 316L
Stainless Steel Capillary Tube Finish Pickled, Polished, Bright Annealed, Electrolytic Polished
Stainless Steel Capillary Tube Form Round, Strait, Hydraulic etc.
Stainless Steel Capillary Tube Type As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed
Stainless Steel Capillary Tube Mill Test Certificate EN10204 3.1
Stainless Steel Capillary Tube Packing Sleeved, Ends Capped, Wooden Boxed

Stainless Steel Capillary Tube Price

check latest updated price of stainless steel Capillary Tube.

SS 304 / 316L Capillary Tube Price

Looking to buy Stainless Steel 304 Capillary Tube? Check our latest price of SS 304 Capillary Tube
Check available sizes in SS Evaporator Coil Capillary Tube in India, Buy 304L Industrial Capillary Tubes and 316L Stainless Steel Precision Tubing at factory price

Types of Stainless Steel Capillary Tube Suppliers

Stainless Steel Capillary Tube

Stainless Steel Capillary Tube

SS 304L Capillary Tube

SS 304L Capillary Tube

SS 316 Capillary Tube

SS 316 Capillary Tube

Stainless Steel 316L Capillary Tube

Stainless Steel 316L Capillary Tube

SS 201 Capillary Tube

SS 201 Capillary Tube

SS Seamless Capillary Tube

SS Seamless Capillary Tube

Stainless Steel Capillary Tubing

Stainless Steel Capillary Tubing

SS Capillary Tube

SS Capillary Tube

Stainless Steel Capillary Tube Sizes

Stainless steel Capillary Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a stainless steel Capillary Tube is manufactured according to current standards API, ASTM, and ASME. If required for special projects we can also supply large diameter Capillary Tubes.

Stainless Steel Capillary Tube Sizes

Dimensions and Wall Thickness of Stainless Steel Capillary Tube

Gauge Outside Diameter Tolerance mm Regular Wall (RW) mm Thin Wall (TW) mm Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114   0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114   0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127   0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292

Stainless Steel Capillary Tube Schedule Chart

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
1/4″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
3/8″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
1/2″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
3/4″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
1″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
1 1/4″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
1 1/2″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
2″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
2 1/2″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
3″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
4″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
5″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes
6″ available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes available SS Capillary Tube sizes

Ss Capillary Tube Pressure Rating

AVE. WALL INCHES MIN YIELD STRENGTH (PSI) MIN TENSILE STRENGTH (PSI) THEORETICAL BURST PRESSURE * (PSI) WORKING PRESSURE (PSI) 25% OF BURST THEORETICAL YIELD POINT ** (PSI) COLLAPSE PRESSURE *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,304
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,304
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,304
0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260

Stainless Steel Capillary Tube Dimensional Tolerances

SIZE OD NOMINAL WALL THICKNESS OUTSIDE DIAMETER TOLERANCE LENGTH TOLERANCE WALL THICKNESS TOLERANCE
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (%)
½ 12.7 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
¾ 19.1 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
1 25.4 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
1½ 38.1 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
2 50.8 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
2½ 63.5 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
3 76.2 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
4 101.6 0.083 2.11 +/-0.015 +/-0.38 +⅛, -0 +3.18, -0 +/-10.0%
6 152.4 0.109 2.77 +/-0.030 +/-0.76 +1, -0 +25.4, -0 +/-10.0%

Stainless Steel Capillary Tube Chemical Composition

The below table shows the chemical composition of the used for Stainless Steel Capillary Tube:

STAINLESS STEEL CAPILLARY TUBE GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

Stainless Steel Capillary Tube Mechanical Properties

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35

Stainless Steel Capillary Tubing Equivalent Grades

GRADE UNS NO DIN/WERKSTOFF
Stainless Steel Capillary Tube 304 S30400 1.4301
Stainless Steel Capillary Tube 304L S30403 1.4306
Stainless Steel Capillary Tube 316 S31600 1.4436
Stainless Steel Capillary Tube 316L S31603 1.4404

Available Stock of SS Capillary Tube

Stainless Steel Capillary Tube Importer Stainless Steel Seamless Capillary Tube Supplier
Stainless Steel Bright Polished Capillary Tube Stainless Steel Capillary Tubing Manufacturer in India
Stainless Steel Seamless Capillary Tube Supplier Stainless Steel Capillary Tubing Importer
Seamless Stainless Steel Capillary Tube Suppliers ESI Stainless Steel Capillary Tube Trader
Stainless Steel Capillary Tube Manufacturer in India Stainless Steel Welded Capillary Tube Exporter
304 Stainless Steel Capillary Tube 316L Stainless Steel Capillary Tube
Stainless Steel 201 Capillary Tubes Supplier Polished 316 Stainless Steel Capillary Tube Supplier
Stainless Steel 202 Capillary Tube Manufacturer in India Stainless Steel 304 / 304L Capillary Tube Manufacturer in India
SS Capillary Tube Manufacturer in India 316 Stainless Steel Capillary Tube Supplier
304 Stainless Steel Capillary Tube supplier ASTM304 Stainless Steel Capillary Tube Supplier
stainless steel Capillary tubing stockist od 8mm x 6mm od 304 Stainless Steel Capillary Tube
Mirror Polished stainless steel Capillary Tube Suppliers Stainless Steel Electropolished Capillary Tubes Supplier
high quality stainless steel Capillary Tube Supplier 316 Stainless Steel Capillary Tube Manufacturer in India
stainless steel Capillary Tube Importer ASTM / ASME Stainless Steel Capillary Tube Supplier
stainless steel Capillary tubing Trader SS 304l Capillary Tube Supplier
Stainless steel Capillary tube Exporter SS 316L Capillary Tube Supplier
stainless steel Capillary tubing Supplier Stainless Steel Welded Capillary Tube Supplier
SS welded Capillary Tube Supplier Stainless Steel Seamless Capillary Tube Exporter
Bright Polished, Cleaned, Passivated Capillary Tubes Steel Capillary Tubes
316 Stainless Steel Capillary Tubing Stainless Steel 1/16 in. Capillary Tubing
Capillary tubing Supplier in India AISI Stainless Steel Capillary Tubes

Stainless Steel Capillary Tube Price List

  • stainless steel Capillary Tube
    FOB Price: US $1o00-2100 / Ton
  • 201 316 stainless steel Capillary tube
    FOB Price: US $1400-2500 / Ton
  • 202 stainless steel seamless Capillary Tube
    FOB Price: US $1-4000 / Ton
  • 316l Stainless Steel Capillary Tube
    FOB Price: US $1200-2200 / Ton
  • 316L Capillary Stainless Steel Tube
    FOB Price: US $1500-2200 / Ton
  • high quality seamless Capillary Tube 316 stainless steel
    FOB Price: US $1400-2200 / Metric Ton
  • 304 stainless steel Capillary Tube
    FOB Price: US $1200-2200 / Ton
  • 304 stainless steel Capillary Tube
    FOB Price: US $1200-2000 / Ton
  • China warehouse stainless steel Capillary Tube
    FOB Price: US $1000-2200 / Ton
  • Capillary stainless steel tube for sale
    FOB Price: US $2100-3500 / Ton
  • High Quality 316 316L 304L 304 Stainless Steel Capillary Tube Price
    FOB Price: US $1200-2200 / Ton
  • 201 stainless steel Capillary Tube
    FOB Price: US $1000-2500 / Metric Ton
  • Factory wholesale stainless steel Capillary Tube 304 for sale
    FOB Price: US $4-5 / Kilogram
  • price of stainless steel Capillary Tube
    FOB Price: US $1000-3500 / Metric Ton
  • polished stainless steel Capillary Tube price
    FOB Price: US $1200-2200 / Metric Ton
  • welded stainless steel Capillary Tube
    FOB Price: US $1000-2200 / Ton
  • Welded Stainless Steel Capillary Tube
    FOB Price: US $690-1200 / Ton
  • Stainless Steel 201 Capillary Tube
    FOB Price: US $1000-3000 / Ton
  • Capillary tubing price
    FOB Price: US $100-1000 / Ton
  • China new 304 stainless steel Capillary Tube price per meter
    FOB Price: US $2-2.5 / Kilogram
  • bright polished stainless steel Capillary tube
    FOB Price: US $1500.0-2300.0 / Metric Tons
  • Stainless Steel Welded Capillary Tube
    FOB Price: US $1-30 / Kilogram
  • Hot Sale and Factory Price AISI 201 304 430 stainless steel series Capillary Tubes competitive price
    FOB Price: US $800-2000 / Metric Ton
  • 304 Welded Stainless Steel Capillary Tube Manufacturer
    FOB Price: US $780-1690 / Ton
  • China Manufacturers Capillary Stainless Steel Tube
    FOB Price: US $1200-2500 / Ton
  • Capillary stainless steel tube
    FOB Price: US $1-15 / Kilogram
  • SS304/316 Stainless Steel Capillary Tube
    FOB Price: US $1600-2800 / Ton
  • Stainless Steel Capillary Tube manufacturers price
    FOB Price: US $1000-4500 / Ton
  • 201 304 316 stainless steel Capillary Tube
    FOB Price: US $1000-3500 / Ton

STAINLESS Steel Capillary TubeS STOCK SUPPLY APPLICATIONS

These stainless steel Capillary Tubes are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • Stainless Steel Capillary Tube for Chemical and petrochemical
  • Stainless Steel Capillary Tube used for Power generation
  • Stainless Steel Capillary Tubing for Renewable energy
  • Stainless Steel Capillary Tube for Pulp and Paper
  • Stainless Steel Capillary Tube for Process piping
  • Stainless Steel Capillary Tubing used for Pharmaceutical
  • Stainless Steel Capillary Tube applications for Food and beverage
  • Stainless Steel Capillary Tube used for Oil and gas
  • Stainless Steel Capillary Tube applications in Mining
  • Stainless Steel Capillary Tube used for Water/waste
  • Stainless Steel Capillary Tube application for Marine Industry
  • SS Capillary Tube application for Fertilizers

Stainless Steel


Stainless Steel Tube


Stainless Steel Seamless Pipe

Stainless Steel Gasket

Stainless Steel O Rings


ASTM Standards



Pipe Specifications



Stainless Steel Pipe Weight Calculator
Trilok Steel Industries
