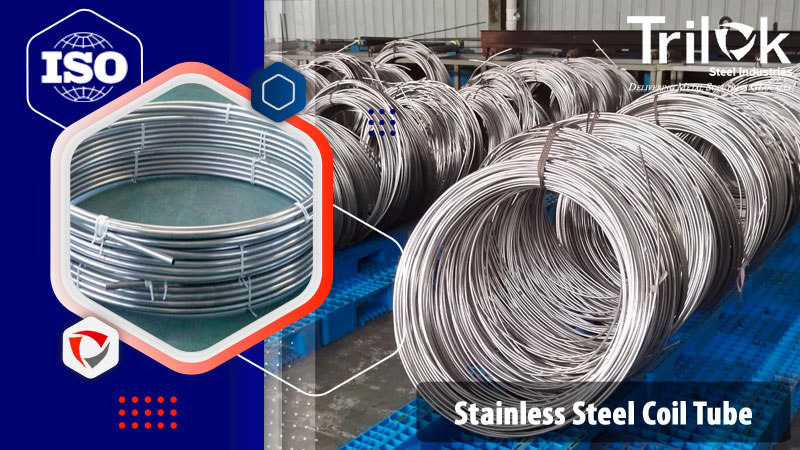

A coil tube is a continuous length small diameter module. Stainless Steel Coiled Tubing is designed to withstand extreme pressures and temperatures. They have a superior chemical composition and are a feature in drilling and oilfield applications. A SS Coil Tube is generally designed with sizes of 25mm to 83mm and is supplied in a spool of a large reel. These tubes enable the pumping of fluid to take place without the need for gravity. We are the Stainless Steel Coil Tube manufacturer in India who believes in quality over anything and supply the best products across all our outlets. Our tie-ups with the best logistical supply chains allow us to transport and supply all our products to your doorstep in a short span of time.
A coiled tube of the stainless steel grade is manufactured in either the 304 or 316 configurations. ASTM A213 Grade 304 Coiled Tube is commonly seen in high temperature and pressure boilers, heat exchangers, and superheaters. These tubes possess a chemical composition of chromium and nickel with other small constituents. The SS 316 Chemical Injection Line enables the injection of inhibitors in the system. The line is designed with a superior composition of nickel, chromium, and molybdenum that gives it an edge over the SS304 grade items. The 316L Stainless Steel Coil Tubing is a low-carbon tubing that is utilized in an array of applications. This tubing is resistant to sensitization and can be welded to an array of modules quite easily. For any questions and queries about our products or customization or value added services, contact us or visit any of our outlets for more information.
Table of Content
Standard | ASTM A213/ASME SA213, ASTM A269 /ASME SA 269, EN10216-5, JIS G3463 |
---|---|
Tolerance | D4/T4 |
Strength | Burst Tensile |
END | Plain End |
Hardness | Rockwell |
Soundness Tests | Eddy Current Ultrasonic |
Leak & Strength | Hydrostatic |
Available sizes in stock |
|
Per Kg
304l seamless stainless steel coiled tubing
$ 1.86
Per Kg
316l Stainless Steel Seamless Coil Pipe
$ 2.01
Per Kg
304 Tube 9.52*1.24m Stainless Steel Coil tubing
$ 2.58
Stainless Steel Coil Tube
ASTM A213 Grade 304 Coiled Tube
SS 316 Chemical Injection Line
1 Inch Stainless Steel Coil Tubing
316L Stainless Steel Coil Tubing
Welded Stainless Steel Coil Tubing
Seamless Stainless Steel Tubing Coil
ASME SA213 Gr 316L Coiled Tube
A213 Grade 304L Seamless Coil Tube
Nominal size in inches | Outside diameter in mm | Outside diameter in inches | Wall thickness in mm | Wall thickness in inches | Weight [lbs/feet] | Weight [kg/meter] |
---|---|---|---|---|---|---|
1 25 | 33.4 | 1.32 | 3.38 | 0.133 | 1.68 | 2.5 |
1/4 8 | 13.7 | 0.54 | 2.24 | 0.088 | 0.42 | 0.63 |
3/8 10 | 17.1 | 0.68 | 2.31 | 0.091 | 0.57 | 0.84 |
12 300 | 323.8 | 12.75 | 10.31 | 0.406 | 53.52 | 79.73 |
1/2 15 | 21.3 | 0.84 | 2.77 | 0.109 | 0.85 | 1.27 |
1/8 6 | 10.3 | 0.41 | 1.73 | 0.068 | 0.24 | 0.37 |
2 1/2 65 | 73 | 2.875 | 5.16 | 0.203 | 5.79 | 8.63 |
3/4 20 | 26.7 | 1.05 | 2.87 | 0.113 | 1.13 | 1.69 |
1 1/4 32 | 42.2 | 1.66 | 3.56 | 0.14 | 2.27 | 3.39 |
1 1/2 40 | 48.3 | 1.9 | 3.68 | 0.145 | 2.72 | 4.05 |
8 200 | 219.1 | 8.625 | 8.18 | 0.322 | 28.55 | 42.55 |
2 50 | 60.3 | 2.375 | 3.91 | 0.154 | 3.65 | 5.44 |
3 80 | 88.9 | 3.5 | 5.49 | 0.216 | 7.58 | 11.29 |
3 1/2 90 | 101.6 | 4 | 5.74 | 0.226 | 9.11 | 13.57 |
4 100 | 114.3 | 4.5 | 6.02 | 0.237 | 10.79 | 16.07 |
5 125 | 141.3 | 5.563 | 6.55 | 0.258 | 14.62 | 21.77 |
6 150 | 168.3 | 6.625 | 7.11 | 0.28 | 18.97 | 28.26 |
10 250 | 273 | 10.75 | 9.27 | 0.365 | 40.48 | 60.31 |
14 350 | 355.6 | 14 | 11.13 | 0.437 | 54.57 | 94.55 |
16 400 | 406.4 | 16 | 12.7 | 0.5 | 82.77 | 123.3 |
18 450 | 457 | 18 | 14.27 | 0.562 | 104.67 | 155.8 |
20 500 | 508 | 20 | 15.09 | 0.594 | 123.11 | 183.42 |
24 600 | 610 | 24 | 17.48 | 0.688 | 171.29 | 255.41 |
32 800 | 813 | 32 | 17.48 | 0.688 | 230.08 | 342.91 |
Grade | Carbon | Chromium | Nickel | Molybdenum | Magnesium | Silicon | Phosphorus | sulfur |
---|---|---|---|---|---|---|---|---|
304 | 0.08 | 18 To 20 | 8 To 11 | - | 2 | 1 | 0.045 | .030 |
316L | 0.03 | 16 To 18 | 10 To 14 | 2 To 3 | 2 | 1 | 0.045 | .030 |
317L | .035 | 18 To 20 | 11 To 15 | 3 To 4 | 2 | 1 | 0.045 | .030 |
Material | Tensile Strength | Temperure | Elongation | Yield Strength |
---|---|---|---|---|
Ksi | Minimum | Ksi | ||
304L | 70 | 1900 | 35 | 25 |
304 | 75 | 1900 | 35 | 30 |
316 | 75 | 1900 | 35 | 30 |
316L | 70 | 1900 | 35 | 25 |
Wall Thickness | Outer Diameter in Inch | Inner Diameter |
---|---|---|
.020 | 1/8 | .085 |
.035 | (.1250) | .055 |
.035 | 1/4 | .180 |
.035 | 5/16 | .243 |
.035 | 3/8 | .305 |
.035 | 1/2 | .430 |
.049 | (.5000) | .402 |
.049 | 3/4 | .652 |
Size in Inch | Outer Diameter | Wall Thickness | Length |
---|---|---|---|
.125 X .035 W | 0.125 | 0.035 | 6,367 |
.250 X .035 W | 0.250 | 0.035 | 2,665 |
.250 X .035 W (15 Ra Max) | 0.250 | 0.035 | 2,665 |
.250 X .049 W | 0.250 | 0.049 | 2,036 |
.250 X .065 W | 0.250 | 0.065 | 1,668 |
.375 X .035 W | 0.375 | 0.035 | 1,685 |
.375 X .035 W (15 Ra Max) | 0.375 | 0.035 | 1,685 |
.375 X .049 W | 0.375 | 0.049 | 1,225 |
.375 X .065 W | 0.375 | 0.065 | 995 |
.500 X .035 W | 0.500 | 0.035 | 1,232 |
.500 X .049 W | 0.500 | 0.049 | 909 |
.500 X .049 W (15 Ra Max) | 0.500 | 0.049 | 909 |
.500 X .065 W | 0.500 | 0.065 | 708 |
.750 X .049 W | 0.750 | 0.049 | 584 |
.750 X .065 W | 0.750 | 0.065 | 450 |
6 MM X 1 MM W | 6mm | 1mm | 2,610 |
8 MM X 1 MM W | 8mm | 1mm | 1,863 |
10 MM X 1 MM W | 10mm | 1mm | 1,449 |
12 MM X 1 MM W | 12mm | 1mm | 1,188 |
