SS 304 Condenser Coil Tubing and 316 Stainless Steel Shell And Tube Condenser Supplier in Mumbai

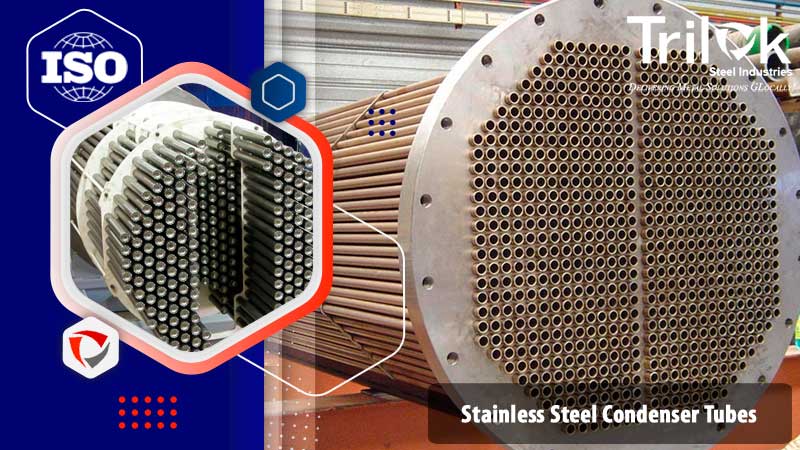

Stainless Steel Condenser Tubes

Condenser tubes are modules that are produced to efficiently condense process fluid from the outside of a tube. A SS Condenser Tubing is utilized in high temperature and pressure applications and don’t easily disorientate under pressure. These tubes showcase enhanced strength and torsion. The SS Condensing Tube is highly efficient across oxidative and corrosive media in stress-induced setups. These tubes are widely used in chillers, refrigerators, and cooling applications. A Stainless Steel Steam Condenser Tube helps in condensing fluids and gases through the exhaust systems to provide maximum efficiency for the system to function. We are the Stainless Steel Condenser Tubes Manufacturer In India who believes in quality over anything. These tubes are produced with the best raw material and cutting-edge technology.

The SS condenser tubes are designed in common 304 and 316 configurations. A SS 304 Condenser Coil Tubing is an elongated long tube designed with an 18/8 chromium and nickel composition. This gives the tubes excellent resistance and tolerance in stress-induced environments. The versatile 316 Stainless Steel Shell And Tube Condenser is manufactured with a superior content of nickel, chromium, and molybdenum in the system. These components have higher resistance to reductive media when compared to the SS304 grade. They also show tolerance to pitting and crevice corrosion. The Stainless Steel 316L Seamless Condenser Tubes are low-carbon modules that are produced via an extrusion process giving them superior strength and load-bearing capacity in a wide range of applications. All these tubes can be custom designed in different shapes and sizes as per the requirements of the purchaser. If you have any questions or queries about our products or their pricing, contact us or visit any of our outlets for more information.

We supply SS Condensing Tube for heating, reheating and cooling systems as per American specification


Specification of Stainless Steel Condenser Tubes

Grades 316N, 316, 316L 309S, 310S 316LN, 304N 317, 304LN, 316Ti 304H 347H, 347 304, 321 317L 321H, 304L 310H
Manufacturing Type Fabricated / Seamless / ERW / DOM / Welded / CDW / CDS / CEW / 100% X Ray Welded
ASTM Specification ASTM A213, ASTM A312, ASTM A269
Delivery Condition Bright Annealed (BA), Annealed and Pickled (AP), Polished, Cold Drawn, MF
Processing Service Decoiling, Bending, Welding, Punching, Cutting, Moulding
International Standard
  • Japanese
    JIS G3463
  • French
    NFS 49-214
  • UK
    BS3059-2
    BS3605
  • German
    DIN 17459
    AD Merkblatt W2
  • Russian
    TU 14-3-460-75E
    TU 14-3-796-79
Technique Cold rolled, Cold drawn, Hot rolled, Extrusion Tube

SS 304 Condenser Coil Tubing Price List

Stockist and distributor of Stainless Steel 316L Seamless Condenser Tubes for pharmaceutical & chemical companies, View Dimensions and updated price list

Trilok Steel Industries

Per Kg

304 mirror polished 38mm stainless steel Condenser tube


$ 10.35

Trilok Steel Industries

Per Kg

Stainless Steel 304 Heat Exchanger triclamp Condenser Tube

$ 8.17

Trilok Steel Industries

Per Kg

stainless steel 4*48 inch condenser 3/8 inch Cooling tube


$ 6.20

Types of 316 Stainless Steel Shell And Tube

Stainless Steel Shell And Tube Condenser

Stainless Steel Shell And Tube Condenser

Stainless Steel Seamless Condenser Tubes

Stainless Steel Seamless Condenser Tubes

Steam Condenser Tube

Steam Condenser Tube

Stainless Steel Steam Condenser Tube

Stainless Steel Steam Condenser Tube

Stainless Steel Condenser Tube

Stainless Steel Condenser Tube

Ss Seamless Condenser Tubes

Ss Seamless Condenser Tubes

Stainless Steel Condenser Tubing

Stainless Steel Condenser Tubing

Condenser Tube

Condenser Tube

Ss 304l Condenser Tube

Ss 304l Condenser Tube

SS Condensing Tube pressure rating

Pipe Size in Inches Pipe Schedule 500 100 300 200 400 600 700 650 750
4 40 1014 1531 1187 1321 1091 967 919 938 909
80 1466 2213 1715 1909 1577 1397 1328 1355 1314
160 2386 3601 2791 3106 2566 2273 2161 2206 2138
1 1/2 40 1496 2257 1750 1947 1608 1425 1354 1383 1340
80 2108 3182 2466 2744 2267 2009 1909 1949 1889
160 3060 4619 3580 3984 3291 2916 2772 2829 2743
2 40 1260 1902 1474 1640 1355 1201 1141 1165 1129
80 1820 2747 2129 2369 1957 1734 1648 1682 1631
160 2980 4499 3486 3880 3205 2840 2699 2755 2671
8 40 711 1073 832 926 765 678 644 657 637
80 1121 1692 1311 1459 1205 1068 1015 1036 1005
160 2103 3175 2460 2738 2262 2004 1905 1944 1885
6 40 808 1219 945 1052 869 770 732 747 724
80 1267 1913 1483 1650 1363 1208 1148 1172 1136
160 2179 3289 2549 2836 2343 2076 1973 2014 1953
1 40 2019 3048 2362 2629 2171 1924 1824 1867 1810
80 2791 4213 3265 3634 3002 2659 2528 2580 2501
160 4068 6140 4759 5296 4375 3876 3684 3761 3646
3 40 1196 1806 1400 1558 1287 1140 1084 1106 1072
80 1691 2553 1979 2202 1819 1612 1532 1564 1516
160 2544 3840 2976 3312 2736 2424 2304 2352 2280
5 40 889 1342 1040 1158 956 847 805 822 797
80 1312 1981 1535 1709 1411 1250 1189 1213 1176
160 2262 3414 2646 2945 2433 2155 2049 2091 2027
10 40 645 974 755 840 694 615 584 596 578
80 1066 1609 1247 1388 1147 1016 966 986 956
160 2085 3147 2439 2714 2242 1986 1880 1927 1868

Stainless Steel Steam Condenser Tube Chemical Composition

Buy Japan/ Europe origin Stainless Steel Steam Condenser Tube at lowest price in India as per DIN 17459, JIS G3463, BS3059-2BS3605 standards
Grades Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel Molybdenum
TP304 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP316 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP304L 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316L 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

SS Condenser Tubing Mechanical Properties

Grade Elongation (min. %) Temperature Range (ºC [ºF]) Tensile Stress (min. MPa) Yield Stress (min. MPa) Hardness
(max.
Rockwell)
TP310H 35 590 [1095] 515 205 90 HRB
TP304H 35 590 [1095] 515 205 90 HRB
TP321H 35 600 [1110] 515 205 90 HRB
TP347HFG 35 650 [1200] 550 205 90 HRB
TP347/347H 35 610 [1130] 515 205 90 HRB
TP316H 35 610 [1130] 515 205 90 HRB
TP310HCbN 30 670 [1240] 655 295 100 HRB
S30432 35 650 [1200] 590 235 95 HRB

Stainless Steel Condenser Tubes Size Chart

View Stainless Steel Condenser Tubes and SS Condenser Tubing dimensions, Specifications and Price List
Sizes in Sizes in Inches Sizes in Decimal
7.94 5/16 .3125
3.18 1/8 .1250
4.76 3/16 .1875
50.80 2 2.00
1.59 1/16 .0625
38.10 1 1/2 1.50
6.35 1/4 .2500
19.05  3/4 .7500
14.29  9/16 .5625
31.75 1 1/4 1.25
9.53 3/8 .3750
11.11 7/16 .4375
12.70  1/2 .5000
23.81 15/16 .9375
15.88 5/8 .6250
17.46  11/16 .6875
20.64 13/16 .8125
22.23 7/8 .8750
25.40 1 1.00

Stainless Steel Steam Condenser Tube Wall Thickness

Gauge Typical Value in Inch Thickness Range in Inch
19 0.042 0.038 through 0.042
11 0.12 0.112 through 0.122
17 0.058 0.053 through 0.058
15 0.072 0.066 through 0.074
20 0.035 0.031 through 0.035
22 0.028 0.025 through 0.029
10 0.134 0.126 through 0.136
18 0.049 0.044 through 0.049
12 0.109 0.101 through 0.111
9 0.148 0.140 through 0.150
16 0.065 0.060 through 0.065
13 0.095 0.087 through 0.097
14 0.083 0.075 through 0.085
8 0.165 0.157 through 0.167
7 0.18 0.175 through 0.185
