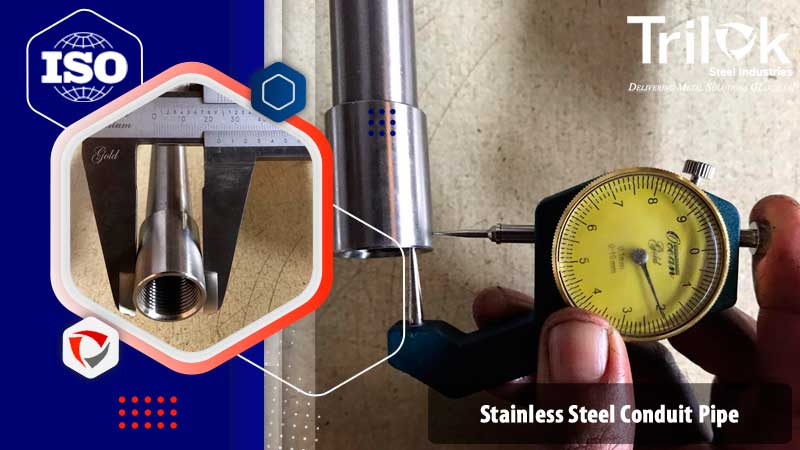

What is Stainless Steel Conduit Pipe?
A stainless steel conduit is a heavy-duty galvanized tube that can be installed with threaded fittings. These pipes are very flexible and are utilized to provide protection to electrical wiring in a structure or building components. These pipes are very rigid and provide support to different applications.
What are stainless steel conduits used for?
A conduit pipe is used to provide protection from damage to electrical cables, and panels. They can also be used to add an aesthetical appeal to a wide spectrum of homes or commercial spaces.
What is BS 4568 Stainless Steel Conduit Pipe?
The BS 4568 conduit pipe is a high quality galvanized pipe that has a smooth surface finish. These pipes have a aesthetic wall surface without any spots or bubbles. They are available in lengths up to 4 meters and can be availed in sizes up to 32mm. The conduit pipes can be used alongside mechanical equipment for protective wire installation.
What is AISI 316L Rigid Stainless Steel Conduit?
The rigid 316L grade is a low carbon version of the stainless steel component. The rigid modules are heavy-duty galvanized modules that are typically installed with threaded fittings. They provide protection against damage and provide structural support to different applications.
What is SS 304 Conduit Tube?
The SS 304 conduit tube is a high strength grade that is designed with a superior composition of nickel and chromium, giving these tubes enhanced corrosion and oxidation resistance properties. These tubes are capable of withstanding harsh conditions like humidity, extreme heat, or salinity.
Table of Content
Materials | Stainless Steel 304/ Stainless Steel 316 |
Conduit Type | Rigid |
Nominal Diameter | 25mm |
Thread Size | 1.5mm |
Outer Diameter | 25mm |
Length | 3m |
Colour | Metal |
Sizes | 20mm, 25mm, 32mm, 40mm, 50mm, ¾" NPT, 1" NPT, 1 ¼" NPT, 1 ½" NPT, 2" NPT |
Finish | Brushed |
Connection Type | Threaded |
Standards | CSA C22.2 No.45.2-08 Certified, cULus Listed, E98405 Listed, UL 6A |
Per Kg
rigid steel electrical conduit 3/4 Inch
$ 2.93
Per Kg
Stainless Steel Ermc Ss-1 1/4 Rigid Conduit Ss 304 Pipe
$ 9.79
Per Kg
Ss Flexible Conduit Pipe- 1-ss 304 Double Lock Conduit 6mm
$ 10.65
Per Kg
Per Kg
Per Kg
ASTM A554 Grade 316l Conduit Tube
Stainless Steel Conduit Tube
ASTM A554 Grade 316 Conduits
Stainless Steel Conduit Pipe
BS 316S11 Conduit Pipe
ASTM A554 Grade 304 Conduit Pipe
Stainless Steel Conduits
ASTM A554 Grade 304l Conduit Tubes
EN 1.4401 Conduit Tube
EMT Tube
Electrical Metallic Tubing
Ss 304l Conduits
En 1.4404 Conduit Tube
Stainless Steel 304 Conduit Pipe
Bs 316s31 Conduit Pipe
Ss 304 Conduit Tube
En 1.4307 Conduit Tube
32mm Stainless Steel Conduit
Aisi 316l Rigid Stainless Steel Conduit
Bs 304s31 Conduit Pipe
Bs 304s11 Conduit Pipe
316 Stainless Steel Conduits
Stainless Steel Flexible Conduit
En 1.4301 Conduit Tube
CSA C22.1
Article 344 National Electrical Code (NEC)
NSF/ANSI 169 Certified
UL/cUL 6A
Canadian Electrical Code (CEC)
UL File #E230584
Internal Diameter | Coiling Diameter | Outer Diameter | Weight | Weight | Length Option | Length Option |
mm | mm | mm | Kg.s / Mts | Lb.s /ft | In Mts | In ft |
6 | 50 | 8 | 0.062 | 0.042 | 100 | 300 |
16 | 125 | 19 | 0.165 | 0.111 | 25 | 150 |
4 | 50 | 5.8 | 0.035 | 0.024 | 125 | 400 |
5 | 50 | 6.8 | 0.045 | 0.03 | 100 | 300 |
15 | 125 | 18 | 0.155 | 0.104 | 25 | 150 |
7.5 | 50 | 10 | 0.077 | 0.052 | 50 | 200 |
21 | 150 | 25 | 0.24 | 0.161 | 25 | 100 |
12.7 | 100 | 15.7 | 0.13 | 0.087 | 50 | 200 |
3.2 | 40 | 4.85 | 0.03 | 0.02 | 150 | 500 |
7 | 50 | 9.5 | 0.072 | 0.048 | 50 | 200 |
12 | 100 | 15 | 0.125 | 0.084 | 50 | 200 |
9 | 75 | 12 | 0.09 | 0.061 | 50 | 200 |
5.5 | 50 | 7.5 | 0.055 | 0.037 | 100 | 300 |
10 | 100 | 13 | 0.1 | 0.067 | 50 | 200 |
6.4 | 50 | 8.4 | 0.065 | 0.044 | 100 | 300 |
8 | 50 | 10.5 | 0.085 | 0.057 | 50 | 200 |
19 | 125 | 22 | 0.225 | 0.151 | 25 | 100 |
25 | 150 | 29 | 0.275 | 0.185 | 25 | 100 |
Material | Product Name | Trade Size |
---|---|---|
316 | 3/4 Inch Three Piece Coupling 316 | 3/4 |
316 | 1 Inch Three Piece Coupling 316 | 1 |
304 | Conduit 1/2 Inch 304 | 1/2 |
304 | 1/2 Inch Hygienic Conduit 304 | 1/2 |
304 | Conduit 3/4 Inch 304 | 3/4 |
304 | 3/4 Inch Hygienic Conduit 304 | 3/4 |
304 | Conduit 1 Inch 304 | 1 |
304 | 1 Inch Hygienic Conduit 304 | 1 |
304 | Conduit 1-1/4 Inch 304 | 1-1/4 |
304 | 1-1/4 Inch Hygienic Conduit 304 | 1-1/4 |
304 | Conduit 1-1/2 Inch 304 | 1-1/2 |
304 | 1-1/2 Inch Hygienic Conduit 304 | 1-1/2 |
304 | Conduit 2 Inch 304 | 2 |
304 | 2 Inch Hygienic Conduit 304 | 2 |
304 | Conduit 2-1/2 Inch 304 | 2-1/2 |
304 | Conduit 3 Inch 304 | 3 |
304 | Conduit 4 Inch 304 | 4 |
316 | Conduit 1/2 Inch 316 | 1/2 |
316 | 1/2 Inch Hygienic Conduit 316 | 1/2 |
316 | Conduit 3/4 Inch 316 | 3/4 |
316 | 3/4 Inch Hygienic Conduit 316 | 3/4 |
316 | Conduit 1 Inch 316 | 1 |
316 | 1 Inch Hygienic Conduit 316 | 1 |
316 | Conduit 1-1/4 Inch 316 | 1-1/4 |
316 | 1-1/4 Inch Hygienic Conduit 316 | 1-1/4 |
316 | Conduit 1-1/2 Inch 316 | 1-1/2 |
316 | 1-1/2 Inch Hygienic Conduit 316 | 1-1/2 |
316 | Conduit 2 Inch 316 | 2 |
316 | 2 Inch Hygienic Conduit 316 | 2 |
316 | Conduit 2-1/2 Inch 316 | 2-1/2 |
316 | Conduit 3 Inch 316 | 3 |
316 | Conduit 4 Inch 316 | 4 |
304 | Coupling 1/2 Inch 304 | 1/2 |
304 | Coupling 3/4 Inch 304 | 3/4 |
304 | Coupling 1 Inch 304 | 1 |
304 | Coupling 1-1/4 Inch 304 | 1-1/4 |
304 | Coupling 1-1/2 Inch 304 | 1-1/2 |
304 | Coupling 2 Inch 304 | 2 |
304 | Coupling 2-1/2 Inch 304 | 2-1/2 |
304 | Coupling 3 Inch 304 | 3 |
304 | Coupling 4 Inch 304 | 4 |
316 | Coupling 1/2 Inch 316 | 1/2 |
316 | Coupling 3/4 Inch 316 | 3/4 |
316 | Coupling 1 Inch 316 | 1 |
316 | Coupling 1-1/4 Inch 316 | 1-1/4 |
316 | Coupling 1-1/2 Inch 316 | 1-1/2 |
316 | Coupling 2 Inch 316 | 2 |
316 | Coupling 2-1/2 Inch 316 | 2-1/2 |
316 | Coupling 3 Inch 316 | 3 |
316 | Coupling 4 Inch 316 | 4 |
Size in Inch | Weight Per Feet (lbs) | Length in Inch | Outer Diameter | Inner Diameter |
---|---|---|---|---|
1/2 | 0.82 | 9' 11-1/4 | 0.840 | 0.622 |
3/4 | 1.09 | 9' 11-1/4 | 1.050 | 0.824 |
1 | 1.61 | 9' 11 | 1.315 | 1.049 |
1-1/4 | 2.18 | 9' 11 | 1.660 | 1.380 |
1-1/2 | 2.63 | 9' 11 | 1.900 | 1.610 |
2 | 3.5 | 9' 11 | 2.375 | 2.067 |
2-1/2 | 5.59 | 9' 10-1/2 | 2.875 | 2.469 |
3 | 7.27 | 9' 10-1/2 | 3.500 | 3.068 |
4 | 10.08 | 9' 10-1/4 | 4.500 | 4.026 |
5 | 14.61 | 9' 10 | 5.563 | 5.073 |
6 | 18.97 | 9' 10 | 6.625 | 6.093 |
Conduit EMT pipe is designed in accordance with the most recent edition of the following specifications.
Rigid Steel EMT (ANSI® C80.3) is an American National Standard.
EMT-Steel Underwriters Laboratories Standard (UL797)
Article 358 of the National Electric Code® (NEC®) of 2002 (1999 NEC® Article 348)
Protective casing
Electronic shielding
Wiring conduit or armor cable
Capillary Armour
Stainless Steel Pipe
ASTM Standards
Pipe Specifications
High Corrosion Resistance
Food processing lines, chemical facilities, water treatment plants, seaside operations, and other corrosive environments benefit from stainless steel (SUS304) construction..
IMC Conduit Compliant
Internal diameter and length meet IMC specifications. In a number of applications, it can be used with steel conduit for a more flexible and dependable electrical installation. Stainless conduit fittings aid in the creation of a professional-looking wiring system.
Long Life Expectancy
Wherever they are installed, conduit systems must stay in good working order. Stainless steel conduit has a long service life and requires little maintenance, which is especially important in high-altitude applications.
Outstanding Appearance
For a greater appearance, stainless steel conduit has been polished to a bright gloss. This ensures a pleasing appearance, which is particularly important for food processing operations.
