Trilok Steel Industries is well known Stainless Steel Corrugated Tube Suppliers has many characters of the good flexible, lightweight, corrosion resistance, fatigue resistance, resistance the high and low temperature. SS Corrugated Tubes are mostly used in petrochemical, metallurgical power, aerospace, construction, steel, shipbuilding, docks, rubber, paper, textile, transportation and other industries. SS 304 Corrugated tubes and SS 316 Corrugated tubes formed with corrugated shape on outside surface. Stainless Steel Corrugated Tubing is suitable for conveying all types of liquid and gases with extreme low and high temperature requirements. SS 316 Corrugated Tubes can be used to connect the form of tube flexible and soft, with good defensive displacement and vibration and noise reduction, mainly used on heat exchangers. SS Corrugated Tubes is used as an alternative to the older standard "black iron" (steel) gas pipe. The inner SS layer of typical residential CSST is 0.2 to 0.3 mm thick while the wall thickness of typical residential “black iron” gas pipe is 3 to 4 mm thick. Corrugated Stainless Steel Tube is more expensive than “black iron” gas pipe. However, Corrugated Stainless Steel Tubing requires fewer joints, may be safer during earthquakes, and may be easier to install. As a largest stockholder of stainless steel Corrugated Tube includes grades 304 SS Corrugated Tubing, Stainless Steel 304L Corrugated Tube, Stainless Steel 316 Corrugated Tube, Stainless steel 316L Corrugated Tube and Stainless Steel 201 Corrugated Tube those are used in various indutsrial applications.

Stainless Steel Corrugated Tube Suppliers

Trilok Steel Industries is one of the renowned exporter, stockholder of Welded Corrugated Stainless Steel Tube. Our offered Stainless Steel Corrugated Tube is actually used for components of energy type tools such as steam super-heaters, boilers, steam pipelines, and so on. Corrugated SS Tubing is prepared from low alloyed and heat resisting steels which can survive the weight at soaring temperature and pressure. We are specialises in the supply of high quality seamless corrugated tubing in stainless steel 304 and 316 grades which are highly resistant to corrosion. Trilok Steel Industries is PED approved manufacturer & Govt. of India recognized Export House and an ISO 9001 : 2008 accredited company. Stainless Steel 304 Corrugated Tube are supplied as cold drawn or hot rolled in countries like Malaysia, Philippines, Zimbabwe, Brisbane, UK, South Africa, Australia, UAE and Sydney. We are also well known Stainless Steel Corrugated Tube Manufacturer in India. Buy Corrugated Tube Material at attractive price and discounted rates in cities of India such as Ahmedabad (Gujarat), Aurangabad, Gurgaon, Indore, Khopoli, Kolhapur, Jaipur, Kolkata, Faridabad, Nagpur, Raipur.

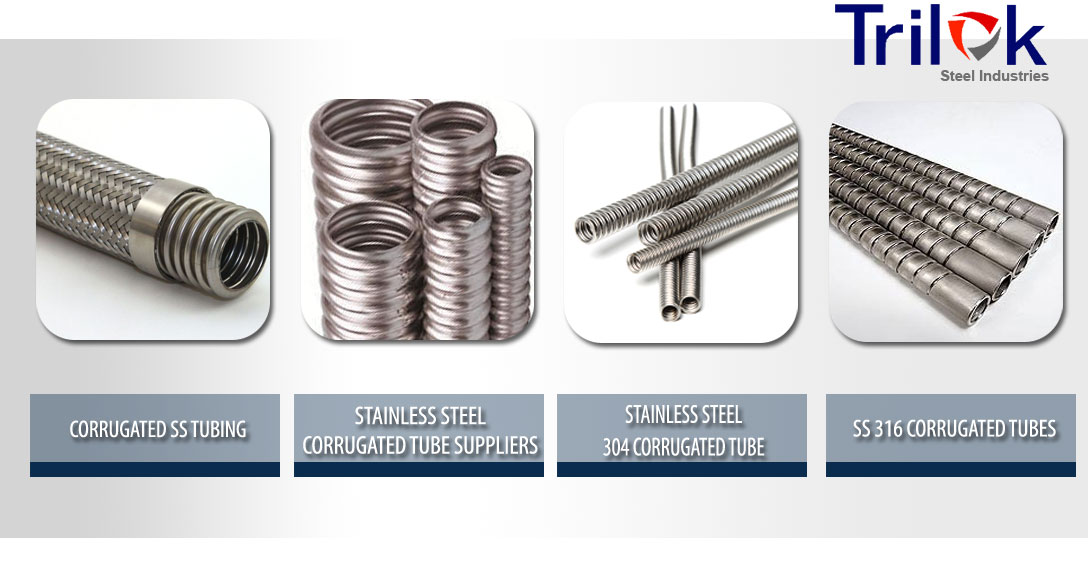

Stainless Steel Corrugated Tube Suppliers
Stainless Steel Corrugated Tube Suppliers
Stainless Steel 304 Corrugated Tube
304 SS Corrugated Tubing
SS 316 Corrugated Tubes
SS 316 Corrugated Tubes

Stainless Steel Corrugated Tube Specification

Stainless Steel Corrugated Tube Size Range 6.35 mm To 50.8 mm OD
Stainless Steel Corrugated Tube Length As per Customer requirement, Maximum upto 22 Meter Long.
Stainless Steel Corrugated Tube Thickness 0.50 mm TO 6.0 mm
Stainless Steel Corrugated Tube Dimenisons ASTM, AISI, ASME, JIS, DIN, EN, GB, BS, SUS
Stainless Steel Corrugated Tube Standard ASTM A / ASME SA213
Stainless Steel Corrugated Tube Material SS 304, SS 304L, SS 316, SS 316L
Stainless Steel Corrugated Tube Form Round, Square, Rectangular, Coil, U Tube, Pan Cake.
Stainless Steel Corrugated Tube Shapes Straight tube, Coil tubing
Stainless Steel Corrugated Tube Type As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed
Stainless Steel Corrugated Tube Finish SS cottugated tubes and corrugated pipes can be supplied in mechanical polished with various grits like at 80, 120, 240, 320, 400, 600 grit and mirror polished.
Stainless Steel Corrugated Tube Packing Sleeved, Ends Capped, Wooden Boxed

Get Stainless Steel Welded Corrugated Tube At Affordable Price, Wide Inventory Of Corrugated Stainless Steel Tubing, Corrugated Steel Tube Manufacturers In India, Exporters Of Stainless Steel 304 Corrugated Tube, Stainless Steel Corrugated Tubing Suppliers In India.

Get Free Sample Of SS 316 Corrugated Tubes, Available Stock Of Glass Corrugated Tube, Manufacturers Of SS 304 Corrugated Tube In India, We Provide Different Stainless Steel Corrugated Tubing Grades And Also Supply High-quality Corrugated Tube Heat Exchanger.

Types of Stainless Steel Corrugated Tube

Stainless Steel 304 Corrugated Tube
Stainless Steel 304L Corrugated Tube
Stainless Steel 316 Corrugated Tube
Stainless Steel 316L Corrugated Tube

Stainless Steel 201 Corrugated Tube
SS Seamless Corrugated Tube
Stainless Steel Corrugated Tubing
Stainless Steel Corrugated Tube

Stainless Steel Corrugated Tube Sizes

Stainless steel Corrugated Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a stainless steel Corrugated Tube is manufactured according to current standards API, ASTM, and ASME. If required for special projects we can also supply large diameter Corrugated Tubes.

STAINLESS STEEL CORRUGATED TUBE SIZES

Dimensions and Wall Thickness of Stainless Steel Corrugated Tube

NOMINAL DIAMETER (INCHES) NUMBER OF BRAIDS NOMINAL OD (INCHES) STATIC
MINIMUM BEND RADIUS (INCHES)
DYNAMIC
MINIMUM BEND RADIUS (INCHES)
MAXIMUM
WORKING PRESSURE
@ 70°
F (PSIG)
BURST PRESSURE
@ 70 F (PSIG)
WEIGHT PER FOOT
(POUNDS)
 1/4 0 0.386     188   0.05
1 0.434 1.18 3.94 1955 7821 0.121
 3/8 0 0.634     156   0.132
1 0.682 1.57 3.94 1546 6186 0.225
 1/2 0 0.764     94   0.168
1 0.812 1.77 5.51 1176 4693 0.308
 3/4 0 1.106     78   0.285
1 1.154 2.17 6.3 960 3839 0.438
1    0 1.445     56   0.39
1 1.509 2.56 7.09 978 3911 0.722
1 1/4 0 1.787     39   0.478
1 1.851 3.15 8.66 711 2844 0.893
1 1/2 0 2.157     31   0.644
1 2.237 3.54 10.24 569 2275 1.227
2    0 2.709     23   0.84
1 2.789 4.33 12.99 551 2204 1.613
2 1/2 0 3.189     21   0.941
1 3.279 6.5 14.96 402 1607 2.117
3    0 3.78     17   1.169
1 3.87 8.5 17.72 338 1351 2.58
4    0 4.764     14   1.626
1 4.854 11.02 22.05 238 953 3.272
5    0 5.945     21   2.755
1 6.035 13.98 27.95 224 896 4.872
6    0 7.047     21   3.32
1 7.137 15.98 33.86 149 597 5.941
8    0 9.094     17   3.998
1 9.184 18.98 41.73 192 768 9.307

STAINLESS STEEL CORRUGATED TUBE SCHEDULE CHART

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes

1/4″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes

3/8″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes

1/2″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
3/4″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
1″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
1 1/4″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
1 1/2″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
2″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
2 1/2″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
3″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
4″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
5″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes

6″
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes
available stainless steel Corrugated Tube sizes


STAINLESS STEEL CORRUGATED TUBE PRESSURE RATING

Pressure Rating for Stainless Steel Corrugated Metal Hoses, Stainless Steel Corrugated Tube

SIZE SINGLE BRAID DOUBLE BRAID
Nominal Size Static  Dynamic bend radius Max. working Test pressure Burst  Static  Dynamic bend radius Max. working Test pressure Burst
bend radius pressure pressure bend radius pressure pressure
Inch mm mm mm bar bar bar mm mm bar bar bar
1/4 6 25 100 154 230 616 25 100 246 369 984
3/8 10 40 150 105 157 420 40 150 168 252 672
1/2 12 50 200 88 132 352 50 200 140 210 560
5/8 16 50 200 73 109 292 50 200 116 174 464
3/4 20 70 200 64 96 256 70 200 102 153 408
1 25 90 200 50 75 200 90 200 80 120 320
32 110 250 42 63 168 110 250 67 100 268
1 ½ 40 130 250 32 48 128 130 250 51 76 204
2 50 175 350 31 46 124 175 350 49 73 196
2 ½ 65 200 410 26 39 104 200 410 41 61 164
3 80 205 450 18 27 72 205 450 28 42 112
4 100 230 560 16 24 64 230 560 26 39 104
5 125 280 660 16 24 64 280 660 25 37 100
6 150 320 815 12 18 48 320 815 20 30 80
8 200 435 1015 10 16 40 435 1015 16 24 64
10 250 560 1220 6.5 10 26 560 1220 10.5 16 42

STAINLESS STEEL CORRUGATED TUBE DIMENSIONAL TOLERANCES

SIZE OD   NOMINAL WALL THICKNESS   OUTSIDE DIAMETER TOLERANCE   LENGTH TOLERANCE   WALL THICKNESS TOLERANCE
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (%)
½ 12.7 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
¾ 19.1 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
1 25.4 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
38.1 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
2 50.8 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
63.5 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
3 76.2 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
4 101.6 0.083 2.11 +/-0.015 +/-0.38 +⅛, -0 +3.18, -0 +/-10.0%
6 152.4 0.109 2.77 +/-0.030 +/-0.76 +1, -0 +25.4, -0 +/-10.0%

STAINLESS STEEL CORRUGATED TUBES, SEAMLESS CAPIILARY TUBE, WELDED CORRUGATED TUBES EX- STOCK

304 Stainless Steel Corrugated Tube
304L Stainless Steel Corrugated Tube
304H Stainless Steel Corrugated Tube
309 Stainless Steel Corrugated Tube
310 Stainless Steel Corrugated Tube
310S Stainless Steel Corrugated Tube
316 Stainless Steel Corrugated Tube
316L Stainless Steel Corrugated Tube
316Ti Stainless Steel Corrugated Tube
321/321H Stainless Steel Corrugated Tube
347/347H Stainless Steel Corrugated Tube
304 SS Corrugated Tube
304L SS Corrugated Tube
304H SS Corrugated Tube
309 SS Corrugated Tube
310 SS Corrugated Tube
SS Seamless Corrugated Tube
310S SS Corrugated Tube
316 SS Corrugated Tube
316L SS Corrugated Tube
316Ti SS Corrugated Tube
321/321H SS Corrugated Tube
347/347H SS Corrugated Tube
304 Stainless Steel Corrugated Tube
304L Stainless Steel Corrugated Tubing
304H Stainless Steel Corrugated Tubing
309 Stainless Steel Corrugated Tubing
310 Stainless Steel Corrugated Tubing
310S Stainless Steel Corrugated Tubing
316 Stainless Steel Corrugated Tubing
316L Stainless Steel Corrugated Tubing
316Ti Stainless Steel Corrugated Tubing
321/321H Stainless Steel Corrugated Tubing
347/347H Stainless Steel Corrugated Tubing

Stainless Steel Corrugated Tube Chemical Composition

The below table shows the chemical composition of the used for Stainless Steel Corrugated Tube:

STAINLESS STEEL CORRUGATED TUBE GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

STAINLESS STEEL Corrugated Tube Mechanical Properties

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35

Stainless Steel Corrugated Tubing Equivalent Grades

GRADE UNS NO DIN/WERKSTOFF
Stainless Steel 304 Corrugated Tube S30400 1.4301
Stainless Steel 304H Corrugated Tube S30409
Stainless Steel 304L Corrugated Tube S30403 1.4306
Stainless Steel 310S Corrugated Tube S31008 1.4845
Stainless Steel 316S Corrugated Tube S31600 1.4436
Stainless Steel 316H Corrugated Tube S31609
Stainless Steel 316 TI Corrugated Tube S31635 1.4571
Stainless Steel 316L (2.5 MIN MOLY) Corrugated Tube S31603 1.4435
Stainless Steel 316L Corrugated Tube S31603 1.4404
Stainless Steel 317L Corrugated Tube S31703 1.4438
Stainless Steel 321 Corrugated Tube S32100 1.4541
Stainless Steel 321H Corrugated Tube S32109
Stainless Steel 347 Corrugated Tube S34700 1.4550

Available Stock of SS Corrugated Tube

Stainless Steel Corrugated Tube Importer Stainless Steel Seamless Corrugated Tube Supplier
High Pressure Stainless Steel Corrugated Tubes Stainless Steel Corrugated Tubing Manufacturer in India
Stainless Steel Seamless Corrugated Tube Supplier Stainless Steel Corrugated Tubing Importer
Seamless Stainless Steel Corrugated Tube Supplier ESI Stainless Steel Corrugated Tube Trader
Check Stainless Steel Corrugated Tube Weight Per Foot Stainless Steel Corrugated Tubing Metric
Stainless Steel Corrugated Tube Manufacturer in India Stainless Steel Welded Corrugated Tube Exporter
304 Stainless Steel Corrugated Tube 316L Stainless Steel Corrugated Tube
Stainless Steel 201 Corrugated Tubes Supplier Polished 316 Stainless Steel Corrugated Tube Supplier
Available 3/8 Corrugated Stainless Steel Tubing 3/4 Corrugated Stainless Steel Tubing Stockholders in India
1/2 Flashshield Corrugated Stainless Steel Tubing 1/2 Corrugated Stainless Steel Tubing Suppliers in India
Stainless Steel 202 Corrugated Tube Manufacturer in India Stainless Steel 304 / 304L Corrugated Tube Manufacturer in India
SS Corrugated Tube Manufacturer in India 316 Stainless Steel Corrugated Tube Supplier
304 Stainless Steel Corrugated Tubes Dealers In India Stainless Steel Corrugated Tubing Properties
304 Stainless Steel Corrugated Tube supplier ASTM304 Stainless Steel Corrugated Tube Supplier
stainless steel Corrugated tubing stockist od 8mm x 6mm od 304 Stainless Steel Corrugated Tube
Mirror Polished stainless steel Corrugated Tube Supplier Stainless Steel Electropolished Corrugated Tubes Supplier
high quality stainless steel Corrugated Tube Supplier 316 Stainless Steel Corrugated Tube Manufacturer in India
stainless steel Corrugated Tube Importer ASTM / ASME Stainless Steel Corrugated Tube Supplier
1 Corrugated Stainless Steel Tubing Corrugated Stainless Steel Tubing Natural Gas
Corrugated Tube Manufacturers Suppliers of Black Corrugated Tube
Corrugated Heater Tube Manufacturers in India S31603 Stainless Steel Corrugated Tube
stainless steel Corrugated tubing Trader SS 304l Corrugated Tube Supplier
Stainless steel Corrugated tube Exporter SS 316L Corrugated Tube Supplier
stainless steel Corrugated tubing Supplier Stainless Steel Welded Corrugated Tube Supplier
SS welded Corrugated Tube Supplier Stainless Steel Seamless Corrugated Tube Exporter
High precision 304 316 316L heat exchanger stainless steel corrugated tube Corrugated Stainless Steel Tubing Manufacturer in India
Exporters of Stainless Steel 304L Corrugated Tube 304 Corrugated Tubes Distributors
316 Stainless Steel Corrugated Tubing Stainless Steel Hot Rolled Corrugated Tubes
Corrugated tubing Supplier in India AISI Stainless Steel Corrugated Tubes

Stainless Steel Corrugated Tube Price List


STAINLESS Steel Corrugated TubeS STOCK SUPPLY APPLICATIONS

These stainless steel Corrugated Tubes are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • Stainless Steel Corrugated Tube for Chemical and petrochemical
  • Stainless Steel Corrugated Tube used for Power generation
  • Stainless Steel Corrugated Tubing for Renewable energy
  • Stainless Steel Corrugated Tube for Pulp and Paper
  • Stainless Steel Corrugated Tube for Process piping
  • Stainless Steel Corrugated Tubing used for Pharmaceutical
  • Stainless Steel Corrugated Tube applications for Food and beverage
  • Stainless Steel Corrugated Tube used for Oil and gas
  • Stainless Steel Corrugated Tube applications in Mining
  • Stainless Steel Corrugated Tube used for Water/waste
  • Stainless Steel Corrugated Tube application for Marine Industry
  • SS Corrugated Tube application for Fertilizers
Distributors Of Stainless Steel 304L Corrugated Tube, Discount On Seamless Stainless Steel Corrugated Tube, Suppliers Of Stainless Steel 316 Corrugated Tubing, Wholersalers Of Stainless Steel 316L Corrugated Tube, Stainless Steel 201 Corrugated Tubes Manufacturers In India
Trilok Steel Industries
