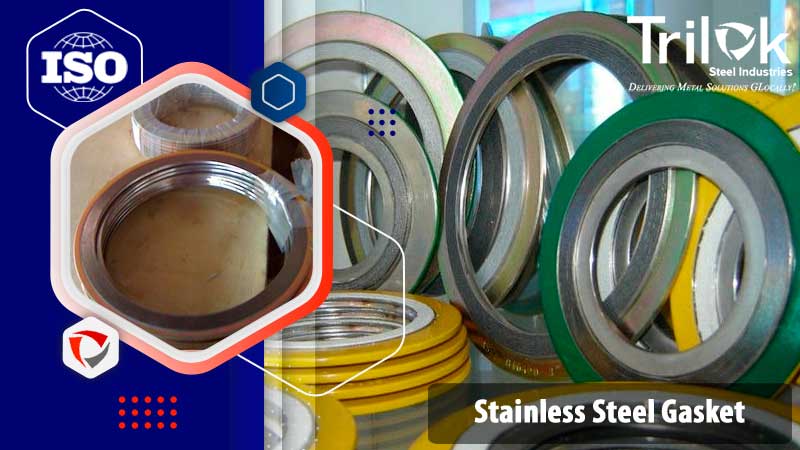

A steel gasket is a device that is utilized to provide a sealant to different materials. These steel gaskets ensure a leak-proof sealing to different components and have enhanced resistance to corrosive and oxidative media across stress-induced environments. The SS 304 Gasket Material is produced with a superior composition of nickel and chromium. This gives the material superior strength and allows them to be utilized in an array of corrosive and oxidative media. SS 304 Ring Gaskets are designed without any bolt holes. They are positioned on the interior side of the bolts of the components. They can be easily installed without the need for fully disassembling the entire joint.
The 316 Ss Spiral Wound Gasket is designed via a superior chemical composition, allowing them to be utilized in industrial plants. They can withstand high temperatures and pressures, thereby preventing any leaks across their lifespan. A Stainless Steel 316 Spiral Wound Gasket is designed with three elements namely an outer ring, an inner ring, and possess a sealing element. These gaskets are semi-metallic grade and are mostly seen in oil, gas, and petrochemical industries. The Stainless Steel Spiral Wound Gasket is easy to install and place within the system. The construction of these gaskets depends on the mechanical characteristics of the metal grade rather than the virtues of standard gasket types. They are preferred in modules that have low or fluctuating bolt loads. We are the Stainless Steel Gasket Manufacturer In India who can custom design all our products in an array of shapes and sizes. These products are produced by making use of the latest technology and best raw materials to produce top-of-line products. If you have any questions or queries about our products or their pricing, contact us or visit any of our outlets for more information.
Specifications | ASTM B182 |
Sizes | 1/2 To 60 Inches |
Standard | ASME B16.20 |
Material | SS 304/ SS 304l SS 316/SS 316l |
Thickness | 4.5mm, 3.2mm,7.3mm, 6.4mm |
Per Kg
ASME B16.20 400mm Stainless Steel Spiral Wound Gasket
$ 10.35
Per Kg
Industrial seal metallic spiral wound gasket
$ 1.24
Per Kg
Graphite stainless steel spiral wound gasket
$ 1.86
Stainless Steel Gaskets
Stainless Steel 316 Spiral Wound Gasket
SS 304 Ring Gaskets
316 Ss Spiral Wound Gasket
Stainless Steel Spiral Wound Gasket
SS 304 Gasket
Raw Material | Temperature | Hardness | Abbreviations Marker | |
Brucellosis | Rockwell | |||
Soft Iron | -60 540 | 90 | 56 | D |
321SS | -200 700b | 160 | 83 | 321 |
Low Cb Steel | -40 540 | 120 | 68 | S |
304LSS | -250 450 | 150 | 83 | 304L |
316SS | -200 700b | 160 | 83 | 316 |
Nickel 200 | -200 760 | 110 | ||
304SS | -250 700b | 160 | 83 | 304 |
316LSS | -200 450 | 150 | 83 | 316L |
347SS | -200 700b | 160 | 83 | 347 |
410SS | -40 650 | 170 | 86 | 410 |
5Cr-0.5Mo | -29 650 | 130 | ||
Titanium | -200 540 | 215 | ||
Monel 400 | -100 760 | 150 | ||
Aluminum | -200 425 | 35 | ||
Inconel 600 | -100 1095 | 150 | ||
Incoloy 825 | -100 1095 | 160 | ||
Copper | -100 315 | 80 | ||
Hastelloy C276 | -100 1095 | 200 |
Trilok Steel Industries manufactures a broad range of high performance industrial gaskets that are popularly used in the oil-field drilling, offshore and onshore petrochemical industry, valves and pipework assemblies. TSI specializes in production of Ring-Joint Gaskets in compliance to international standards i.e. ASME B16.20 and API 6A series.
Ring-Joint Gaskets are engineered in a detailed manner to withstand high temperature and high pressure as an efficient sealing solution. It is for this reason that these are produced in high-nickel content alloys like Monel, Inconel, Duplex, Stainless Steel, Hastelloy and Zirconium. With its global network for sourcing, TSI ensures no compromise on the quality through in-house inspection facility. Having invested in a state-of-the-art production facility, we ensure that most advanced technologies are used in the production of Ring Joint Gaskets.
Trilok Steel Industries provide remarkable process capability and control with the help of outstanding infrastructure for manufacturing industrial products. Having a unique combination of advanced equipment, well-defined procedures and highly trained personnel, TSI provides just-in-time delivery and a competitive cost performance across a broad range of dimensions and materials.
Contact us with details of Precision Machined Components you would like to develop and buy from us. The complete range is stocked and available for immediate delivery in our distribution center. All gaskets are individually boxed and marked with item number and heat number for easy identification and traceability.

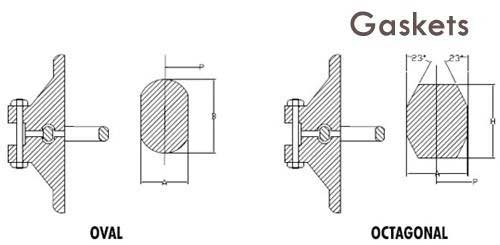

Style R comes in two basic styles: Oval and Octagonal used in pressures upto 10,000 PSI. Octagonal is preferred over Oval due to higher sealing efficiency. These are designed for flanges with standard ring-joint grooves. The hardness of the ring gasket should always be 30% lesser than the hardness of the flanges to prevent flange deformation.
Specification: ASME B 16.20, API 6A, ISO 10423, EN 1514-2, 12560-6
International Standards: ASME B 16.5 ASME B 16.47 Series A, BS 1560, BS EN 1092, BS1560
Material: Duplex, Avesta 254 SMO, Nickel 200, Nickel 201, Monel 400, Inconel 600, Inconel 600, Inconel 625, Incoloy 800, Incoloy 825, Hastelloy B2, Hastelloy C276, Titanium, Zirconium
Nominal Pipe Size: ½” to 36” Ring Numbers: R11 to R105
Pressure Classes: 150-2500# and 10,000 PSI
Surface Finish: Sealing faces (23° angled faces) shall not be greater than 1.6 μm Ra / 63 μin RMS. Packing: Wooden
Value-Added Services: Protective Coating of Soft Iron and Low carbon Steel with electroplated zinc to a maximum Ports: Mumbai, Maharashtra, Chennai, Mundra
Marking: Manufacturer’s Name/Identification Trademark, Gasket Ring Number, Gasket Material identification. Application: •Refineries • Power plants • Petrochemical industry • Pipelines • Valves • Pressure vessels • Oil & Gas
Heat Exchangers • Boilers • Compressors • Pumps
Nominal Pipe Size (Inches) | PRESSURE RATING (PSI) | |||||||||
ASME B16.5 | API 6B | ASME B16.47 SERIES A | ||||||||
150# | 300#-600# | 900# | 1500# | 2500# | 2000# | 3000# | 5000# | 300#-600# | 900# | |
1/2 | R 11 | R 12 | R 12 | R 13 | ||||||
3/4 | R 13 | R 14 | R 14 | R 16 | ||||||
1 | R 15 | R 16 | R 16 | R 16 | R 18 | R 16 | R 16 | R 16 | ||
1 1/4 | R 17 | R 18 | R 18 | R 18 | R 21 | R 18 | R 18 | R 18 | ||
1 1/2 | R 19 | R 20 | R 20 | R 20 | R 23 | R 20 | R 20 | R 20 | ||
2 | R 22 | R 23 | R 24 | R 24 | R 26 | R 23 | R 23 | R 24 | ||
2 1/2 | R 25 | R 26 | R 27 | R 27 | R 28 | R 26 | R 26 | R 27 | ||
3 | R 29 | R 31 | R 31 | R 35 | R 32 | R 31 | R 31 | R 35 | ||
3 1/2 | R 33 | R 34 | R 37 | |||||||
4 | R 36 | R 37 | R 37 | R 39 | R 38 | R 37 | R 37 | R 39 | ||
5 | R 40 | R 41 | R 41 | R 44 | R 42 | R 41 | R 41 | R 44 | ||
6 | R 43 | R 45 | R 45 | R 46 | R 47 | R 45 | R 45 | R 46 | ||
8 | R 48 | R 49 | R 49 | R 50 | R 51 | R 49 | R 49 | R 50 | ||
10 | R 52 | R 53 | R 53 | R 54 | R 55 | R 53 | R 53 | R 54 | ||
12 | R 56 | R 57 | R 57 | R 58 | R 60 | R 57 | R 57 | R 57 | R 57 | |
14 | R 59 | R 61 | R 62 | R 63 | R 61 | R 61 | R 61 | R 62 | ||
16 | R 64 | R 65 | R 66 | R 67 | R 65 | R 65 | R 65 | R 66 | ||
18 | R 68 | R 69 | R 70 | R 71 | R 69 | R 69 | R 69 | R 70 | ||
20 | R 72 | R 73 | R 74 | R 75 | R 73 | R 73 | R 73 | R 74 | ||
22 | R 81 | |||||||||
24 | R 76 | R 77 | R 78 | R 79 | R 77 | R 78 | ||||
26 | R 93 | R 100 | ||||||||
28 | R 94 | R 101 | ||||||||
30 | R 95 | R 102 | ||||||||
32 | R 96 | R 103 | ||||||||
34 | R 97 | R 104 | ||||||||
36 | R 98 | R 105 |
The Style RX is an adaptation of the standard Style R which is energized when the assembly is pressurized. The RX is designed to fit the same groove design as a standard Style R, making the joints interchangeable. The geometry of this modified design induces a pressure energizing effect when the assembly is pressurized, improving the efficiency of the seal.
Specification: ASME B 16.20 API 6A, ISO 10423 International Standards: API 6B Flanges
Material: Duplex, Avesta 254 SMO, Nickel 200, Nickel 201, Monel 400, Inconel 600, Inconel 600, Inconel 625, Incoloy 800, Incoloy 825, Hastelloy B2, Hastelloy C276, Titanium, Zirconium
Nominal Pipe Size: 1 ½” to 20”
Ring Nos.: RX20 to RX99, RX201, 205, 210 & 215
Pressure: 720-5,000 PSI
Surface Finish: Sealing faces (23° angled faces) shall not be greater than 1.6 μm Ra / 63 μin RMS. Packing: Wooden
Value-Added Services: Protective Coating of Soft Iron and Low carbon Steel with electroplated zinc to a maximum Ports: Mumbai, Maharashtra, Chennai, Mundra
Marking: Manufacturer’s Name/Identification Trademark, Gasket Ring Number, Gasket Material identification. Application: •Refineries • Power plants • Petrochemical industry •Pipelines • Valves • Pressure vessels
Nominal Pipe Size (Inches) | PRESSURE RATING (PSI) | |||||
API 6B | ||||||
720# | 960# | 2000# | 2900# | 3000# | 5000# | |
1 | RX 82 | |||||
1 3/8 | RX 201 | |||||
1 1/2 | RX 20 | RX 20 | RX 20 | RX 84 | RX 20 | RX 20 |
1 13/16 | RX 205 | |||||
2 | RX 23 | RX 23 | RX 23 | RX 85 | RX 24 | RX 24 |
2 1/2 | RX 26 | RX 26 | RX 26 | RX 86 | RX 27 | RX 27 |
2 9/16 | RX 210 | |||||
3 | RX 31 | RX 31 | RX 31 | RX 87 | RX 31 | RX 35 |
3 1/2 | RX 89 | |||||
4 | RX 37 | RX 37 | RX 37 | RX 88 | RX 37 | RX 39 |
4 1/16 | RX 215 | |||||
5 | RX 41 | RX 41 | RX 41 | RX 90 | RX 41 | RX 44 |
6 | RX 45 | RX 45 | RX 45 | RX 45 | RX 46 | |
8 | RX 49 RX 99 | RX 49 | RX 49 | RX 49 RX 99 | RX 50 | |
10 | RX 53 | RX 53 | RX 53 | RX 91 | RX 53 | RX 54 |
12 | RX 57 | RX 57 | RX 57 | RX 57 | ||
14 | RX 63 | |||||
16 | RX 65 | RX 65 | RX 65 | RX 69 | ||
18 | RX 69 | RX 69 | RX 69 | RX 73 | ||
20 | RX 73 | RX 73 | RX 73 | RX 82 |
BX gaskets are designed to allow virtual face-to-face contact of the flanges to ensure that the gasket is fully trapped on both the inner and outer diameters. BX gaskets include a pressure balance hole to allow equalization of pressure which may build up in the grooves. The Style BX is not interchangeable with any other style, and is only suited for API 6BX flanges. Style BX ring type joints are designed to seal pressure up to 20,000 PSI (1,360 bar) in accordance with API 6A pressure ratings. Dimensions of gaskets and corresponding grooves are designed in such a way that style BX gaskets do become self-sealing characteristics. This effect is also known as pressure energized sealing.
The American Petroleum (API) decided to standardize the subsea utilization of metallic gaskets with SBX style RTJ wherein there shall be no dimensional difference between the standard BX and SBX gaskets. Manufactured to API 17D, it is used for Subsea Wellhead and Tree Equipment. The “S” identifies these gaskets as having cross-drilled holes to assure that any liquid trapped behind the ring gasket on either side will flow to the I.D. bore. It allows a pressure-less metal-to-metal initial contact between the gasket and the flange groove.
Specification: API 17D (ISO 13628-4) International Standards: API 6BX Flanges
Material: Duplex, Avesta 254 SMO, Nickel 200, Nickel 201, Monel 400, Inconel 600, Inconel 600, Inconel 625, Incoloy 800, Incoloy 825, Hastelloy B2, Hastelloy C276, Titanium, Zirconium
Nominal Pipe Size: 1 11/16” to 30”
Ring Numbers: BX150 to BX172 & BX303 Pressure: 5,000-20,000 PSI
Surface Finish: Not rougher than 0.8 micrometers (32 micro-inches).
thickness of 13μm. TSI can also do the Cadmium, Silver and PTFE/Xylan coating. Packing: Wooden
Value-Added Services: Protective Coating of Soft Iron and Low carbon Steel with electroplated zinc to a maximum Ports: Mumbai, Maharashtra, Chennai, Mundra
Marking: Manufacturer’s Name/Identification Trademark, Gasket Ring Number, Gasket Material identification. Application: •Refineries • Power plants • Petrochemical industry •Pipelines • Valves • Pressure vessels
Nominal Pipe Size (Inches) | PRESSURE RATING (PSI) | |||||
API 6BX | ||||||
2000# | 3000# | 5000# | 10,000# | 15,000# | 20,000# | |
1 11/16 | BX 150 | BX 150 | ||||
1 13/16 | BX 151 | BX 151 | BX 151 | |||
2 1/16 | BX 152 | BX 152 | BX 152 | |||
2 9/16 | BX 153 | BX 153 | BX 153 | |||
3 1/16 | BX 154 | BX 154 | BX 154 | |||
4 1/16 | BX 155 | BX 155 | BX 155 | |||
5 1/8 | BX 169 | |||||
6 5/8 | BX 170 | BX 170 | ||||
7 1/16 | BX 156 | BX 156 | BX 156 | |||
8 9/16 | BX 171 | BX 171 | ||||
9 | BX 157 | BX 157 | BX 157 | |||
11 | BX 158 | BX 158 | BX 158 | |||
11 5/32 | BX 172 | BX 172 | ||||
13 5/8 | BX 160 | BX 159 | BX 159 | BX 159 | ||
16 3/4 | BX 161 BX 162 | BX 162 | BX 162 | |||
18 3/4 | BX 163 | BX 164 | BX 164 | |||
21 1/4 | BX 165 | BX 166 |
