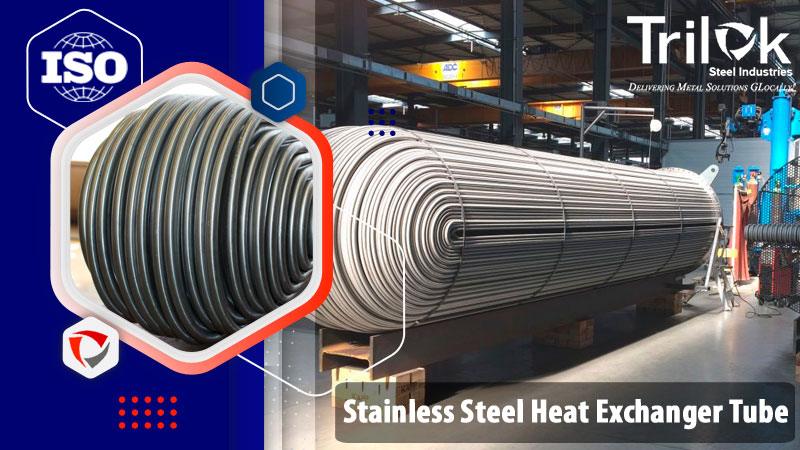

Stainless Steel Heat Exchanger Tube Manufacturer In India
SS 304 Heat Exchanger Pipe and 316 Stainless Steel Heat Exchanger Shell and Tube Supplier
A heat exchanger tube is a component that is employed to transfer heat between two or more set of fluids. A stainless steel heat exchanger tube can be used for both heating and cooling procedures. The shell tube of these heat exchangers has superior strength and tolerance across stress-induced systems. The stainless steel heat exchange tube doesn’t easily dissociate or get damaged due to extreme pressures and temperatures they are induced towards. The robust modules can be designed as U-tube, fixed sheet and floating heat exchanger. The versatile Stainless steel Heat Exchanger Tubing is commonly a feature in pressurized vessel grades, chemical processing systems, oil and gas production equipment. They are also seen in condensing gases, evaporating liquids, and cooling fluids. Our institution is a Stainless Steel Heat Exchanger Tube Manufacturer In India who have a wide stock of inventory of different tubes that can be designed in an array of shapes and sizes. These tubes are quality assured and produced with the best raw materials and latest technology.
The robust Seamless Heat Exchanger Tubes are designed without any welds or seams. This gives the tubes the ability to work in high pressure and temperature applications. These tubes are high-strength components and don’t easily puncture under this extreme conditions. They can be produced in either 304 or 316 configurations. The SS 304 Heat Exchanger Tube is produced with a superior content of nickel and chromium giving them enhanced resistance to corrosive and oxidative media. The SS 316L Heat Exchanger Pipe on the contrary, is a low-carbon grade designed with a superior content of nickel, chromium and molybdenum. The content gives it slightly better performance than the SS304 composition. For any queries or questions with regards to our products or want to customize them, contact us or visit us for more information.
Buy Austenitic and Ferritic Stainless Steel Heat Exchanger Tube or Straight Tubing with polished bright surface at highly competitive prices in Mumbai
Table of Content
- Stainless Steel Heat Exchanger Tube Specification
- SS 304 Heat Exchanger Pipe Price
- Types of 316 Stainless Steel Heat Exchanger Shell and Tube
- TP304L welded Stainless Steel Heat Exchangers Tolerance
- SS Heat Exchanger Shell and Tube Chemical Composition
- SS Seamless Heat Exchanger Tubes Mechanical Properties
- Stainless Steel Heat Exchanger Tube Equivalent material
- Stainless Steel Heat Exchanger Tube sizes
Stainless Steel Heat Exchanger Tube Specification
Manufacturer & supplier of TP304L welded Stainless Steel Heat Exchangers and SS 316L Heat Exchanger Pipe in India, check sizes, dimensions and weight chart
| Standard | ASTM A249/ ASME SA 249, ASTM A269/ ASME SA 269, ASTM A789/ ASME SA 789 |
| Wall Thickness Range | 0.5 To 5 mm |
| Delivery Condition | Annealed and Pickled, Bright Annealed, Polished, Cold Drawn, MF |
| Size Range | 6.53 to 127 mm |
| Length | up to 20 Meter |
| Bending radius | 1.25 x Outer Diameter up to 1700mm |
| Tolerance | +/-0.05 Mm |
| Processing Service | Cutting, Decoiling, Bending, Punching, Welding, Moulding |
| END | Plain End, Beveled End, Treaded |
| Technique | Hot rolled, Cold rolled, Cold drawn, Extrusion Tube |
Download PDF: Catalogue 1, Catalogue 2
SS 304 Heat Exchanger Pipe Price
Per Kg
6inch polished stainless steel stove pipe heat exchanger tube
$ 24.31
Per Kg
High Pressure sus304 Stainless Steel Shell and Tube Heat Exchanger
$ 20.68
Per Kg
AISI 304 1 Inch BWG 16 stainless steel heat exchanger tube
$ 32.06
Types of 316 Stainless Steel Heat Exchanger Shell and Tube
Stainless Steel Heat Exchanger Tube
Stainless Steel Coil Tubing Heat Exchanger
SS 304 Heat Exchanger Pipe
Stainless Steel Shell And Tube Heat Exchanger
Corrugated Stainless Steel Tubing Heat Exchanger
316 Stainless Steel Heat Exchanger Shell and Tube
Stainless Steel Heat Exchanger Straight Tubing
SS 316L Heat Exchanger Pipe
SS Seamless Heat Exchanger Tubes
TP304L welded Stainless Steel Heat Exchangers Tolerance
PDO approved Stainless Steel Heat Exchanger Straight Tubing supplier in polished bright finish, Buy SS Heat Exchanger Shell and Tube at factory price in Mumbai, India
| Outer Diameter Size in Inch | Standard | Tolerances Chart | |||
|---|---|---|---|---|---|
| Outer Diameter | Wall Thickness | ||||
| Plus | Minus | Plus | Minus | ||
| 2.000 to 2.499 | Heat Exchanger Tube | .010 | .010 | 22% | 0% |
| 1.000 to 1.500 | ASME-SA-213 | .006 | .005 | 20% | 0% |
| Under 1.000 | ASTM-A-213 | .004 | .004 | 20% | 0% |
| 1.501 to 1.999 | Cold Finished Seamless | .008 | .008 | 22% | 0% |
| 2.500 to 2.999 | Minimum Wall | .012 | .012 | 22% | 0% |
| 4.001 to 5.000 | .015 | .025 | 22% | 0% | |
| 3.000 to 4.000 | .015 | .015 | 22% | 0% | |
SS Heat Exchanger Shell and Tube Chemical Composition
| Grades | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Nickel | Chromium | Other |
| SS 304 | 0.08 | 2 | 0.04 | 0.03 | 0.075 | 8.00 11.00 | 18.00 20.00 | |
| SS 304L | 0.035 | 2 .00 | 0.04 | 0.03 | 0.75 | 8.00 13.00 | 18.00 20.00 | |
| SS 304H | 0.04 0.1 | 2 | 0.04 | 0.03 | 0.75 | 8.00 11 | 18.00 20 | |
| SS 310 | 0.15 | 2 | 0.04 | 0.03 | 0.75 | 19.00 22 | 24.00 26 | |
| SS 316 | 008 | 2.00 | 0.040 | 0.030 | 0.75 | 11.00 4.00 | 16.00 18.00 | Mo2.00- 3.00 |
| SS 316L | 0.035 | 2 | 0.04 | 0.03 | 0.75 | 10.00 15 | 16.00 18 | Mo 2.00 3.00 |
| SS 316H | 0_04 0.10 | I 2.00 | 0040 | 0.030 | 0.75 | 11.00 14.00 | 16.00 18.00 | Mo2.00-3.00 |
| SS 317 | 0.08 | 2 | 0.04 | 0.03 | 0.75 | 11.00 14 | 18.00 20 | Mo 3.00 4.00 |
| SS 321 | 0.48 | 203 | 0.04 | 0.03 | 0.75 | 9.00 13 | 17.00 20 | Ti 5XC-0.60 |
| SS 347 | 0.08 | 200 | 0.04 | 0.03 | 0.75 | 7.00 13 | 17.00 20 | Cb + Ta 10 XC-1.00 |
| 21-6-9 | 0.04 | 8.00 | 60 | 0.03 | 1 | 5.50 7.5 | 19.00 21.5 | N 0.15 0.40 |
| SS 416 | 0.15 | 1.25 | 0.066 | 0.15 | 1.00 | 12.00 14.00 |
SS Seamless Heat Exchanger Tubes Mechanical Properties
Stockist of 316 Stainless Steel Shell and Tube, Finned Tube, Heating and Cooling Heat Exchanger in Mumbai, Check Size, Dimension and updated price list
| Type | Yield | Elongation | Tensile | Rockwell Hardness |
| SS 304 | 35000 75000 |
55 20 |
85000 105000 |
RB80 RB95 |
| SS 304L | 30000 75000 |
55 20 |
80000 105000 |
RB75 RB95 |
| SS 304H | 35,000 | 55 | 85,000 | RB80 |
| SS 310 | 45,000 | 45 | 95,000 | RB85 |
| SS 316 316L 316H |
35000 30000 35000 |
50 50 50 |
85000 80000 85000 |
RB80 RB75 RB80 |
| SS 317 | 40,000 | 45 | 90,000 | RB85 |
| SS 321 | 35000 75000 |
55 20 |
90,000 105000 |
RB80 RB95 |
| SS 347 | 40,000 | 50 | 95,000 | RB85 |
| 21-6-9 | 60000 120000 |
45 20 |
100000 142000 |
RB9,0 RC30. |
| SS 416 | 35,000 | 20 | 75,000 | RB95 |
Stainless Steel Heat Exchanger Tube Equivalent material
| Stainless Steel Heat Exchanger tube Standard | UNS | EN | WERKSTOFF NR. | JIS | GOST | BS | AFNOR |
| SS 304 | S30400 | X5CrNi18-10 | 1.4301 | SUS 304 | 08Х18Н10 | 304S31 | Z7CN18‐09 |
| SS 304L | S30403 | X2CrNi18-9 / X2CrNi19-11 | 1.4306 / 1.4307 | SUS 304L | 03Х18Н11 | 3304S11 | Z3CN18‐10 |
| SS 304H | S30409 | – | 1.4301 | – | – | – | – |
| SS 310 | S31000 | X15CrNi25-20 | 1.4841 | SUS 310 | 20Ch25N20S2 | 310S24 | – |
| SS 310S | S31008 | X8CrNi25-21 | 1.4845 | SUS 310S | 20Ch23N18 | 310S16 | – |
| SS 310H | S31009 | – | – | – | – | – | – |
| SS 316 | S31600 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | 1.4401 / 1.4436 | SUS 316 | – | 316S31 / 316S33 | Z7CND17‐11‐02 |
| SS 316L | S31603 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | 1.4404 / 1.4435 | SUS 316L | 03Ch17N14M3 / 03Ch17N14M2 | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
| SS 316H | S31609 | – | 1.4401 | – | – | – | – |
| SS 316Ti | S31635 | X6CrNiMoTi17-12-2 | 1.4571 | SUS 316Ti | 08Ch17N13M2T | 320S31 | Z6CNDT17‐123 |
| SS 317 | S31700 | – | 1.4449 | SUS 317 | – | – | – |
| SS 317L | S31703 | X2CrNiMo18-15-4 | 1.4438 | SUS 317L | – | – | – |
| SS 321 | S32100 | X6CrNiTi18-10 | 1.4541 | SUS 321 | – | – | – |
| SS 321H | S32109 | X12CrNiTi18-9 | 1.4878 | SUS 321H | – | – | – |
| SS 347 | S34700 | X6CrNiNb18-10 | 1.4550 | SUS 347 | 08Ch18N12B | – | – |
| SS 347H | S34709 | X6CrNiNb18-12 | 1.4961 | SUS 347H | – | – | – |
| SS 904L | N08904 | X1NiCrMoCu25-20-5 | 1.4539 | SUS 904L | STS 317J5L | 904S13 | Z2 NCDU 25-20 |

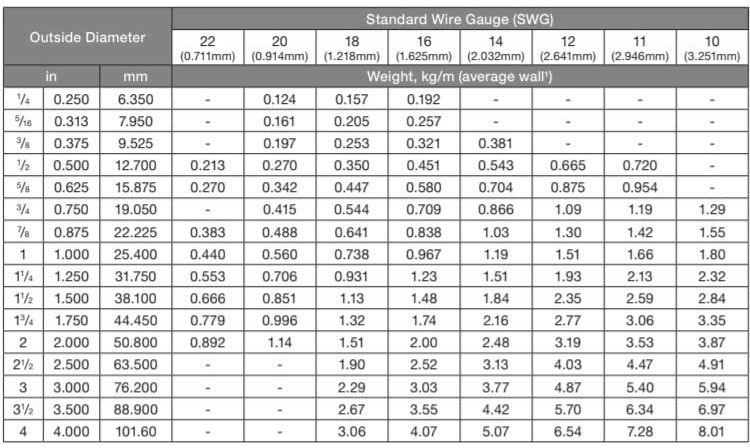

Stainless Steel Heat Exchanger Tube sizes
