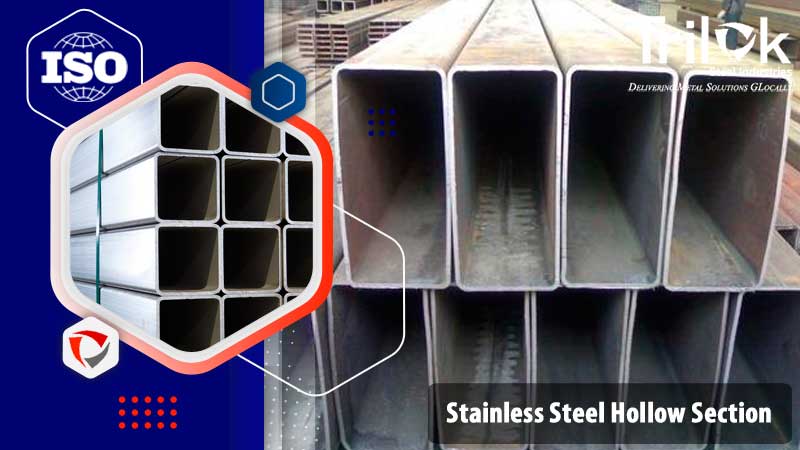

Stainless Steel Hollow Section Supplier
ASTM A554 Gr 304 Hollow Section and SS 316 Circular Hollow Tube Exporter in India
A hollow section metal covers the profile for a hollow cross-sectional area. Stainless Steel Hollow Pipe is a high-strength grade that is produced in a cold or hot forming process. These pipes are structural steel applications that provide good stability and torsion to different modules. The lightweight grade is very durable and can be produced in different shapes and sizes. We are the Stainless Steel Hollow Section Supplier who believes in quality over anything. Our esteemed workers make use of the latest technology and best raw materials to produce top-of-line products. These sections we produce can be custom designed in different shapes and sizes to meet different product requirements.
The ASTM A554 Gr 304 Rectangular Hollow Tube is designed with superior mechanical properties and enhanced corrosion resistance properties. Designed in a rectangular cross section these tubes are designed in different finishes and can be used for multiple purposes. ASTM A554 Gr 304L Rectangular Hollow Section possesses a lower content of carbon than the 304 hollow sections. These tubes are resistant to sensitization and prevent grade boundary formation when they are welded in place. The SS 316 circular hollow Pipe is cold worked and can be welded or bolted in place. These pipes have a superior chemical composition and showcase enhanced resistance to corrosive and oxidative media. The low carbon ASTM A554 Tp 316L Seamless Hollow Tube is manufactured without the need for welds or seams. These tubes have enhanced strength and outstanding load-bearing capacity across stress-induced environments. Our tie-ups with some of the best logistical chains allow us to supply all our tubes to your doorstep within a short period. If you have any queries about our range of products or want to get a quote on them, contact us for more information.
Distributor of Jindal/ ISMT make Stainless Steel Hollow Pipe, wide stock of ASTM A554 Gr 304L Rectangular Hollow Section in India
Table of Content
- ASTM A554 Gr 304 Hollow Section Specification
- SS 316 Circular Hollow Tube Price List
- Stainless Steel Hollow Pipe Types
- ASTM A554 Gr 304L Rectangular Hollow Section Size Chart
- Stainless Steel Square Hollow Section Weight
- Tolerance of ASTM A554 Tp 316L Seamless Hollow Tube
- SS 304 Square Hollow Section Wall Thickness
ASTM A554 Gr 304 Hollow Section Specification
Supplier and exporter of Stainless Steel Square Hollow Section & ASTM A554 Tp 316L Seamless Hollow Tube in various materials & grades in India
| Standard Specification | ASTM A554/ ASTM A312 |
| ASME / ANSI Specification | ANSI/ASME B36.10M, ANSI/ASME B36.19M |
| Stainless Square Tube Available Grades | 304L, 304, 309S, 316, 316L, 310S, 308, 310 |
| Manufacturing Type | ERW, Welded, CDW, Seamless, 100% X Ray Welded, Fabricated |
| Different Delivery Conditions Types | Polished, Annealed and Pickled, Cold Drawn, Bright Annealed |
| Various Surface Finishing | No.1, 2B, No.4, No.8 Mirror Finish |
| Different Wall Thicknesses | SCH 40, SCH 5, SCH10, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Method used for welding | TIG + Plasma TIG |
Download PDF: Catalogue 1, Catalogue 2
SS 316 Circular Hollow Tube Price List
Per Kg
80*90mm weld square Stainless Steel Hollow Section
$ 4.75
Per Kg
150x75mm Hot Dipped Pre Galvanized Hollow Section
$ 10.36
Per Kg
Hollow Section 2 inch stainless steel square tube
$ 8.29
Stainless Steel Hollow Pipe Types
Stainless Steel Hollow Section
Stainless Steel Hollow Pipe
SS 316 Circular Hollow Tube
ASTM A554 Gr 304 Hollow Section
Stainless Steel Square Hollow Section
ASTM A554 Tp 316L Seamless Hollow Tube
SS 304 Square Hollow Section
ASTM A554 Grade 201 Rectangular Hollow Tube
Stainless Steel Circular Hollow Section
ASTM A554 Gr 304L Rectangular Hollow Section Size Chart
| Size mm | kg/m | Size mm | kg/m |
| 40*20*2.5 | 1.68 | 40*20*2.0 | 2.03 |
| 40*25*1.5 | 2.36 | 40*20*3.0 | 1.44 |
| 40*25*2.5 | 1.89 | 40*25*2.0 | 2.23 |
| 50*25*2.5 | 2.21 | 50*25*2.0 | 2.72 |
| 50*30*2.5 | 3.22 | 50*25*3.0 | 2.92 |
| 50*30*4.0 | 3.45 | 50*30*3.0 | 4.46 |
| 60*40*2.0 | 3.77 | 50*40*3.0 | 2.93 |
| 60*40*3.0 | 3.71 | 60*40*2.5 | 4.39 |
| 70*50*2 | 5.72 | 60*40*4.0 | 3.56 |
| 70*50*3.0 | 4.39 | 70*50*2.5 | 5.19 |
| 80*40*2.5 | 6.71 | 70*50*4.0 | 4.26 |
| 80*40*4.0 | 5.34 | 80*40*3.0 | 6.97 |
| 80*50*3.0 | 8.54 | 80*40*5.0 | 5.66 |
| 90*50*3.0 | 7.34 | 80*50*4.0 | 6.28 |
| 90*50*5.0 | 7.46 | 90*50*3.6 | 10.11 |
| 100*50*3.0 | 5.63 | 100*50*2.5 | 6.75 |
| 100*50*5.0 | 8.86 | 100*50*4.0 | 10.90 |
| 100*60*3.6 | 7.22 | 100*60*3.0 | 8.59 |
| 120*80*2.5 | 11.70 | 100*60*5.0 | 7.65 |
| 120*80*4.0 | 9.03 | 120*80*3.0 | 12.00 |
| 120*80*6.0 | 14.80 | 120*80*5.0 | 17.60 |
| 150*100*5.0 | 22.9 | 120*80*8.0 | 18.70 |
| 150*100*8.0 | 22.30 | 150*100*6.0 | 29.10 |
| 160*80*5.0 | 35.70 | 150*100*10.0 | 18.00 |
| 160*80*8.0 | 21.30 | 160*80*6.0 | 27.90 |
| 200*100*6.0 | 22.70 | 200*100*5.0 | 27.00 |
| 200*100*10.0 | 35.4 | 200*100*8.0 | 43.60 |
| 250*150*6.0 | 30.5 | 250*150*5.0 | 38.2 |
| 250*150*10 | 48.0 | 250*150*8.0 | 59.3 |
| 300*200*8.0 | 48.10 | 300*200*6.0 | 60.50 |
| 400*200*8.0 | 75.00 | 300*200*10.0 | 73.10 |
| 400*200*16 | 90.70 | 400*200*10.0 | 142.00 |
Stainless Steel Square Hollow Section Weight
Don't forget to check and compare our price of SS 304 Square Hollow Section & ASTM A554 Grade 201 Rectangular Hollow Tube suppliers in Mumbai
| Nominal | SS Square Pipe Schedule 10 | SS Square Pipe Schedule 5 | SS Square Pipe Schedule 40 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | MM | Wt./MM | Kg./M | Kg./Ft | Wt./MM | Kg./M | Kg./Ft | Wt./MM | Kg./M | Kg./Ft |
| 1 1 / 4 | 33.40 | 2.77 | 2.690 | 0.820 | 1.65 | 1.650 | 0.503 | 3.56 | 3.380 | 1.030 |
| 3 / 4 | 21.30 | 2.11 | 1.280 | 0.390 | 1.65 | 1.020 | 0.311 | 2.87 | 1.680 | 0.512 |
| 2 | 48.30 | 2.77 | 3.920 | 1.200 | 1.65 | 3.340 | 0.728 | |||
| 1 / 2 | 21 | 2.11 | 0.999 | 0.305 | 1.65 | 0.801 | 0.244 | 2.77 | 1.270 | 0.387 |
| 1 | 26.70 | 2.77 | 2.090 | 0.637 | 1.65 | 1.290 | 0.393 | 3.38 | 2.500 | 0.762 |
| 1 1 / 2 | 42.20 | 2.77 | 3.110 | 0.948 | 1.65 | 1.900 | 0.579 | 3.68 | 4.050 | 1.230 |
| 2 1 / 2 | 73.00 | 3.05 | 5.260 | 1.600 | 2.11 | 3.690 | 1.130 | |||
| 3 | 88.90 | 3.05 | 6.450 | 1.970 | 2.11 | 4.510 | 1.380 | |||
| 3 1 / 2 | 101.60 | 3.05 | 7.400 | 2.260 | 2.11 | 5.190 | 1.580 | |||
Tolerance of ASTM A554 Tp 316L Seamless Hollow Tube
| Nominal Pipe Size | Permissible Variations in Outside Diameter | |
|---|---|---|
| Over In. | Under In. | |
| Over 8 to 18, incl | 3/23 (0.093) | 1/32 (0.031) |
| Over 1-1/2 to 4, incl | 1/32 (0.031) | 1/32 (0.031) |
| 1/8 to 1-1/2, incl | 1/64 (0.015) | 1/32 (0.031) |
| Over 4 to 8, incl | 1/16 (0.062) | 1/32 (0.031) |
SS 304 Square Hollow Section Wall Thickness
Buy directly from Stainless Steel Hollow Section manufacturers for wide size range and high quality material, Ask for a free sample now!
| Nominal Pipe Size | Outside Diameter in. | Schedule 160 in. | Schedule 40S in. | Schedule 80S in. | Schedule 10S in. | Schedule XX in. |
|---|---|---|---|---|---|---|
| 1/4 | 0.540 | 0.088 | 0.119 | 0.065 | ||
| 3/8 | 0.675 | 0.091 | 0.126 | 0.065 | ||
| 1/2 | 0.840 | .188 | 0.109 | 0.147 | 0.083 | .294 |
| 3/4 | 1.050 | .218 | 0.113 | 0.154 | 0.083 | .308 |
| 1.0 | 1.315 | .250 | 0.133 | 0.179 | 0.109 | .358 |
| 1 1/4 | 1.660 | .250 | 0.140 | 0.191 | 0.109 | .382 |
| 1 1/2 | 1.900 | .281 | 0.145 | 0.200 | 0.109 | .400 |
| 2 | 2.375 | .343 | 0.154 | 0.218 | 0.109 | .436 |
| 2 1/2 | 2.875 | .375 | 0.203 | 0.276 | 0.120 | .552 |
| 3 | 3.500 | .438 | 0.216 | 0.300 | 0.120 | .600 |
| 3 1/2 | 4.000 | 0.226 | 0.318 | 0.120 | .636 | |
| 4 | 4.500 | .534 | 0.237 | 0.337 | 0.120 | .674 |
| 5 | 5.563 | .625 | 0.258 | 0.375 | 0.134 | .750 |
| 6 | 6.625 | .719 | 0.280 | 0.432 | 0.134 | .864 |
| 8 | 8.625 | .906 | 0.322 | 0.500 | 0.148 | .875 |
| 10 | 10.750 | 1.125 | 0.365 | 0.500 | 0.165 | |
| 12 | 12.750 | 1.312 | 0.375 | 0.500 | 0.180 | |
| 14 | 14.000 | 1.406 | 0.375 | 0.500 | 0.188 | |
| 16 | 16.000 | 1.594 | 0.375 | 0.500 | 0.188 |
