304 Stainless Steel Hydraulic Tubing and SS Welded Hydraulic Pipe Supplier in India


A hydraulic pipe is a cylindrically shaped module that is utilized in connecting an array of hydraulic systems. Stainless Steel Hydraulic Pipe allows the user to have a smooth passage of fluids and gases. Designed with superior strength these pipes have enhanced resistance against corrosive media in the system. The 304 Stainless Steel Hydraulic Tubing has a good content of nickel and chromium with other constituent alloys. This allows the tubes to work well in elevated pressure as well as in stress-induced environments. A High Pressure Hydraulic Tube combines strength with excellent handling enabling the tubes to work well in high pressure applications while ensuring optimum safety in the system. These hydraulic tubes have an excellent service life and are easy to work with. Industrial Hydraulic Tubes are very reliable and can be shaped in different dimensions and shapes to meet project requirements. Out tie-ups with some of the leading logistical systems allow us to transport products to your doorstep in a short span of time.

Supplier and exporter of SS Hydraulic Tubing & Stainless Steel Seamless Hydraulic Pipe in various materials & grades in India

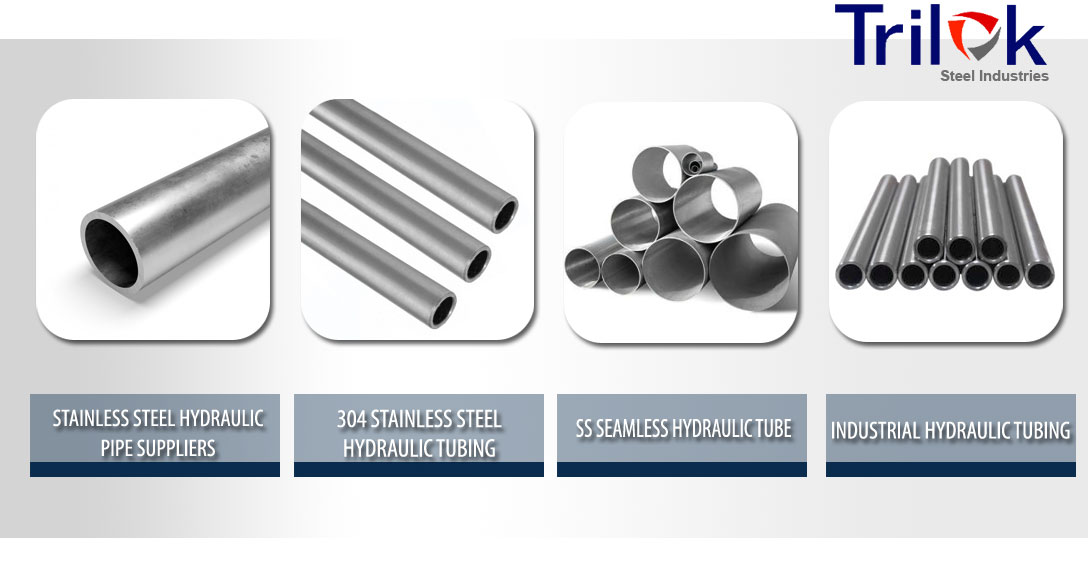

Stainless Steel Hydraulic Pipe Suppliers in India

The pipes in this grade are produced in either seamless or welded configurations. A Stainless Steel Seamless Hydraulic Pipe is designed via an extrusion process as hot steel billets are passed through metal to shape them in correct dimensions. The versatile grade of pipes have excellent strength and exhibit 20% higher load-bearing capacity over an SS Welded Hydraulic Pipe. The welded pipe cannot handle extreme pressures, but can be shaped in different dimensions and are considerably cheaper than the seamless grade. The Stainless Steel Welded Hydraulic Pipe is produced as steel is rolled and welded in place with or without filler material. These pipes are durable and offer good service to customers. For any questions and queries about our products or their pricing, contact us or visit any of our outlets for more information.

Stainless Steel Hydraulic Pipe Suppliers

Stainless Steel Hydraulic Pipe Suppliers

304 Stainless Steel Hydraulic Tubing

304 Stainless Steel Hydraulic Tubing

SS Seamless Hydraulic Tube

SS Seamless Hydraulic Tube

Trilok Steel Industries

Table of Content


Stainless Steel Hydraulic Tubing Specification

Distributor of Stainless Steel Welded Hydraulic Pipe in India, wide stock of SS Hydraulic Tubing and High Pressure Hydraulic Tube in Mumbai

Stainless Steel Hydraulic Pipe Suppliers Size Range OD 6 mm 60.3 mm
Stainless Steel Hydraulic Tubing Standrads EN 10216-5 TC1/TC2, ASTM A 269, PED 97/23/EC, AD 2000 , NACE MR0175
Stainless Steel Hydraulic Tube Dimenisons ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS
Stainless Steel Hydraulic Tubing Material SS 304, SS 304L,SS 316,SS 316L, SS 321, SS321H, SS347, Ss347H
Stainless Steel Hydraulic Tubing Surface bright annealed condition, and pickled + polished condition on customer's request.
Stainless Steel Hydraulic Tubing advantages smooth surface, good hardness (below 80 HRB), no defects, clean inside surface, and high precision tolerances
Looking for Stainless Steel Hydraulic Pipe manufacturers India? Check price and available sizes of 304 Stainless Steel Hydraulic Tubing & Industrial Hydraulic Tubes in Mumbai.

Types of Stainless Steel Hydraulic Tubing

SS Hydraulic Tubing

SS Hydraulic Tubing

SS 304L Hydraulic Tubing

SS 304L Hydraulic Tubing

SS 316 Hydraulic Tubing

SS 316 Hydraulic Tubing

Stainless Steel 316L Hydraulic Tubing

Stainless Steel 316L Hydraulic Tubing

Seamless hydraulic pipe

Seamless hydraulic pipe

Ultra Hydraulic Tubing

Ultra Hydraulic Tubing

Medium Hydraulic Tubing

Medium Hydraulic Tubing

Stainless Steel Hydraulic Tubing

Stainless Steel Hydraulic Tubing

Stainless Steel Hydraulic Tubing Sizes

Stainless steel Hydraulic Tubings are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a stainless steel Hydraulic Tubing is manufactured according to current standards API, ASTM, and ASME. If required for special projects we can also supply large diameter Hydraulic Tubings.

Stainless Steel Hydraulic Pipe Sizes

Nominal
Pipe
Size
(inches)		 Outside
Diameter		 Hydraulic Pipe Schedule Chart
5S 10S 40S 80S
(mm) (inches) Wall Thickness and Weight
mm
(in)		 kg/m mm
(in)		 kg/m mm
(in)		 kg/m mm
(in)		 kg/m
1/8 10.3 0.405 - - 1.25
(0.049)		 0.28 1.73
(0.068)		 0.37 2.42
(0.095)		 0.47
1/4 13.7 0.540 - - 1.66
(0.065)		 0.49 2.24
(0.088)		 0.63 3.03
(0.119)		 0.80
3/8 17.2 0.675 - - 1.66
(0.065)		 0.63 2.32
(0.091)		 0.85 3.20
(0.126)		 1.10
1/2 21.3 0.840 1.65
(0.065)		 0.81 2.11
(0.083)		 1.00 2.77
(0.109)		 1.27 3.74
(0.147)		 1.62
3/4 26.7 1.050 1.65
(0.065)		 1.02 2.11
(0.083)		 1.28 2.87
(0.113)		 1.68 3.92
(0.154)		 2.20
1 33.4 1.315 1.65
(0.065)		 1.30 2.77
(0.109)		 2.09 3.38
(0.133)		 2.50 4.55
(0.179)		 3.24
1 1/4 42.2 1.660 1.65
(0.065)		 1.66 2.77
(0.109)		 2.69 3.56
(0.140)		 3.39 4.86
(0.191)		 4.47
1 1/2 48.3 1.900 1.65
(0.065)		 1.91 2.77
(0.109)		 3.11 3.69
(0.145)		 4.06 5.08
(0.200)		 5.41
2 60.3 2.375 1.65
(0.065)		 2.40 2.77
(0.109)		 3.93 3.92
(0.154)		 5.45 5.54
(0.218)		 7.49
2 1/2 73.0 2.875 2.11
(0.083)		 3.69 3.05
(0.120)		 5.26 5.16
(0.203)		 8.64 7.01
(0.276)		 11.4
3 88.9 3.500 2.11
(0.083)		 4.52 3.05
(0.120)		 6.46 5.49
(0.216)		 11.3 7.62
(0.300)		 15.3
3 1/2 101.6 4.000 2.11
(0.083)		 5.18 3.05
(0.120)		 7.41 5.74
(0.226)		 13.6 8.08
(0.318)		 18.6
4 114.3 4.500 2.11
(0.083)		 5.84 3.05
(0.120)		 8.37 6.02
(0.237)		 16.1 8.56
(0.337)		 22.3
5 141.3 5.563 2.77
(0.109)		 9.46 3.41
(0.134)		 11.6 6.56
(0.258)		 21.8 9.53
(0.375)		 31.0
6 168.3 6.625 2.77
(0.109)		 11.3 3.41
(0.134)		 13.9 7.12
(0.280)		 28.3 10.98
(0.432)		 42.6
8 219.1 8.625 2.77
(0.109)		 14.8 3.76
(0.148)		 20.0 8.18
(0.322)		 42.5 12.70
(0.500)		 64.6
10 273.1 10.750 3.41
(0.134)		 22.7 4.20
(0.165)		 27.8 9.28
(0.365)		 60.4 12.70
(0.500)		 81.5
12 323.9 12.750 3.97
(0.156)		 31.3 4.58
(0.180)		 36.1 9.53
(0.375)		 73.9 12.70
(0.500)		 97.4

Stainless Steel Hydraulic Tube Sizes / Stainless Steel Hyudraulic Tube Dimenisons

Hydraulic Tube Size Chart

Dimensions of Stainless Steel Hydraulic Tube, Stainless Steel Hydraulic Tubing Sizes

Tolerances of outside diameter:
O.D. 4 - 30 mm ± 0,08
O.D. 35 - 38 mm ± 0,15 mm
O.D. 42 - 50 mm ± 0,20 mm

Wall thickness tolerance:
T: ± 10%, min. ± 0,1 mm
Outside Wall Inside Tolerance Flow Weight
diameter thickness diameter of inside cross
diameter section
[mm] [mm] [mm] [cm2] [kg/m]
4 0,5 3 0,15 0,071 0,043
4 1 2 0,15 0,031 0,074
5 0,75 3,5 0,15 0,096 0,079
5 1 3 0,15 0,071 0,099
6 1 4 0,12 0,13 0,123
6 1,5 3 0,15 0,071 0,166
6 2 2 0,15 0,031 0,197
8 1 6 0,10 0,28 0,173
8 1,5 5 0,10 0,20 0,240
8 2 4 0,15 0,13 0,296
8 2,5 3 0,15 0,071 0,339
10 1 8 0,08 0,50 0,222
10 1,5 7 0,12 0,38 0,314
10 2 6 0,15 0,28 0,395
10 2,5 5 0,15 0,20 0,462
12 1 10 0,08 0,79 0,271
12 1,5 9 0,10 0,64 0,389
12 2 8 0,12 0,50 0,493
12 2,5 7 0,15 0,38 0,586
12 3 6 0,15 0,28 0,666
14 1 12 0,08 1,13 0,321
14 1,5 11 0,08 0,95 0,462
14 2 10 0,10 0,79 0,592
14 2,5 9 0,12 0,64 0,709
14 3 8 0,15 0,50 0,814
15 1 13 0,08 1,33 0,345
15 1,5 12 0,08 1,13 0,499
15 2 11 0,10 0,95 0,641
15 2,5 10 0,12 0,79 0,771
15 3 9 0,15 0,64 0,888
16 1 14 0,08 1,54 0,37
16 1,5 13 0,08 1,33 0,536
16 2 12 0,15 1,13 0,691
16 2,5 11 0,12 0,95 0,832
16 3 10 0,15 0,79 0,962
18 1 16 0,08 0,01 0,419
18 1,5 15 0,08 1,77 0,610
18 2 14 0,08 1,54 0,789
18 2,5 13 0,15 1,33 0,956
18 3 12 0,15 1,13 1,11
20 1,5 17 0,08 2,27 0,684
20 2 16 0,08 2,01 0,888
20 2,5 15 0,15 1,77 1,08
20 3 14 0,15 1,54 1,26
20 3,5 13 0,15 1,33 1,424
20 4 12 0,15 1,13 1,58
22 1 20 0,08 3,14 0,518
22 1,5 19 0,08 2,84 0,758
22 2 18 0,08 2,55 0,986
22 2,5 17 0,08 2,27 1,2
22 3 16 0,15 2,01 1,41
22 3,5 15 0,15 1,77 1,60
22 4 14 0,15 1,54 1,78
25 1,5 22 0,08 3,80 0,869
25 2 21 0,08 3,46 1,13
25 2,5 20 0,08 3,14 1,39
25 3 19 0,15 2,84 1,63
25 4 17 0,15 2,27 2,07
25 4,5 16 0,15 2,01 2,28
25 5 15 0,15 1,77 2,47
28 1,5 25 0,08 4,91 0,980
28 2 24 0,08 4,52 1,28
28 2,5 23 0,08 4,16 1,572
28 3 22 0,15 3,80 1,85
28 4 20 0,15 3,14 2,37
28 5 18 0,15 2,55 2,84
30 2 26 0,08 5,31 1,38
30 2,5 25 0,08 4,91 1,70
30 3 24 0,15 4,52 2,00
30 4 22 0,15 3,80 2,57
30 5 20 0,15 3,14 3,08
30 6 18 0,15 2,55 3,55
35 2 31 0,15 7,55 1,63
35 2,5 30 0,15 7,07 2,004
35 3 29 0,15 6,61 2,37
35 4 27 0,15 5,73 3,06
35 5 25 0,15 4,91 3,70
35 6 23 0,15 4,16 4,29
38 2 34 0,15 9,08 1,766
38 2,5 33 0,15 8,55 2,19
38 3 32 0,15 8,04 2,59
38 4 30 0,15 7,07 3,35
38 5 28 0,15 6,16 4,07
38 6 26 0,15 5,31 4,74
38 7 24 0,15 4,52 5,35
38 8 22 0,15 3,8 5,92
42 2 38 0,20 11,34 1,97
42 3 36 0,20 10,18 2,89
42 4 34 0,20 9,08 3,75
42 5 32 0,20 8,04 4,56
42 6 30 0,20 7,07 5,33
42 8 26 0,20 5,31 6,71
50 4 42 0,20 13,85 4,54
50 5 40 0,20 7 5,55
50 6 38 0,20 11,34 6,51
50 8 34 0,20 9,08 8,29
50 9 32 0,20 8,04 9,1
50 10 30 0,20 7,07 9,86
55 4 47 0,25 17,34 5,03
55 6 43 0,25 14,51 7,25
55 8 39 0,25 11,95 9,27
55 10 35 0,25 9,62 11,10
60 5 50 0,25 19,63 6,78
60 8 44 0,25 15,20 10,26
60 10 40 0,25 7 12,33
60 35 0,25 9,62 14,64
70 5 60 0,30 28,26 8,02
70 8 54 0,30 22,89 12,23
70 10 50 0,30 19,63 14,80
70 45 0,30 15,90 17,72
80 6 68 0,35 36,30 10,95
80 8 64 0,35 32,15 14,21
80 10 60 0,35 28,26 17,26
80 55 0,35 23,75 20,81

Tolerances of outside diameter:

O.D. 4 - 30 mm ± 0.08 mm
O.D. 35 - 38 mm ± 0.15 mm
O.D. 42 - 50 mm ± 0.20 mm
O.D. 55 - 60 mm ± 0.25 mm
O.D. 70 mm ± 0.30 mm
O.D. 80 mm ± 0.35 mm
Other dimensions upon agreement, tolerances according
to EN 10305-1

Stainless Steel Hydraulic Tube Pressure Rating

Stainless Steel Hydraulic Tube Pressure Rating Swagelok

Fitting Series

OD in. Note: For gas service, select a tube wall thickness outside of the shaded area.
1/16 5600 6800 8100 9400 12 000 100
1/8 8500 10 900 200
3/16 5400 7 000 10 200 300
1/4 4000 5 100 7 500 10 200➀ 400
5/16 4 000 5 800 8 000 500
3/8 3 300 4 800 6 500 7500➀➁ 600
1/2 2 600 3 700 5 100 6700 810
5/8 2 900 4 000 5200 6000 1010
3/4 2 400 3 300 4200 4900 5800 1210
7/8 2 000 2 800 3600 4200 4800 1410
1 2 400 3100 3600 4200 4700 1610
1 1/4 2400 2800 3300 3600 4100 4900 2000
1 1/2 2300 2700 3000 3400 4000 4900 2400
2 2000 2200 2500 2900 3600 3200

Stainless Steel Hydraulic Tube Chemical Composition

Don't forget to check and compare our price of Industrial Hydraulic Tubing & High Pressure Hydraulic Tube with other Stainless Steel Hydraulic Pipe suppliers in Mumbai

The below table shows the chemical composition of the used for Stainless Steel Hydraulic Tube:

Chemical Composition % Cr Ni C Mg Mo Si P S
304 (UNS S30400) 18.0 – 20.0 8.0 – 11.0 0.08 (max) 2.00 -. 1.00 0.045 (max) .030 (max)
316/L (UNS S31600 / S31603) 16.0 – 18.0 10.0 – 14.0 0.03 (max) 2.00 2.0 – 3.0 1.00 0.045 (max) .030 (max)
317L (UNS S31703) 18.0 – 20.0 11.0 – 15.0 .035 (max) 2.00 3.0 – 4.0 1.00 0.045 (max) .030 (max)

Stainless Steel Hydraulic Tube Mechanical Properties

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35

Stainless Steel hydraulic Tube Equivalent Grades

GRADE UNS NO DIN/WERKSTOFF
SS 304 Hydraulic Tube S30400 1.4301
SS 304H Hydraulic Tube S30409 –
SS 304L Hydraulic Tube S30403 1.4306
SS 310S Hydraulic Tube S31008 1.4845
SS 316S Hydraulic Tube S31600 1.4436
SS 316H Hydraulic Tube S31609 –
SS 316 TI Hydraulic Tube S31635 1.4571
SS 316L (2.5 MIN MOLY) Hydraulic Tube S31603 1.4435
SS 316L Hydraulic Tube S31603 1.4404
SS 317L Hydraulic Tube S31703 1.4438
SS 321 Hydraulic Tube S32100 1.4541
SS 321H Hydraulic Tube S32109 –
SS 347 Hydraulic Tube S34700 1.4550

Available Stock of SS Hydraulic Tubing

Stainless Steel Hydraulic Pipe Suppliers Seamless Hydraulic Tubing Supplier
High Pressure Stainless Steel Hydraulic Tubing Supplier Stainless Steel Hydraulic Pipe Manufacturer in India
Seamless High Pressure Stainless Steel Tubing Supplier Stainless Steel Hydraulic Line Tubing Importer
Stainless Steel Metric Hydraulic Pipe Supplier 1/4" Stainless Steel Hydraulic Tubing Trader
Stainless Steel Hydraulic Tube Manufacturer in India stainless steel 304 hydraulic line tubing Exporter
304 Stainless Steel Hydraulic Tubing 316L Stainless Steel Hydraulic Tubing
9/16" Stainless Steel Hydraulic Tubings Supplier Polished 316 Stainless Steel Hydraulic Tubing Supplier
Stainless Steel 304 Hydraulic Tubing Manufacturer in India Stainless Steel 304 / 304L Hydraulic Tubing Manufacturer in India
SS Hydraulic Tubing Manufacturer in India 316 Stainless Steel Hydraulic Tubing Supplier
304 Stainless Steel Hydraulic Tubing supplier Utlra Pressure Stainless Steel Tubing Supplier
Seamless Stainless Steel hydraulic pipe Suppliers in India 3/8" Stainless Steel Hydraulic Tubing
Bright Annealed stainless steel Hydraulic Tubing Supplier High Pressure Stainless Steel Seamless Hydraulic Tubing Supplier
high quality stainless steel Hydraulic Tubing Supplier 316 Stainless Steel Hydraulic Tubing Manufacturer in India
stainless steel Hydraulic Tubing Importer ASTM / ASME Stainless Steel Hydraulic Tubing Supplier
stainless steel Hydraulic Tube Trader SS 304l Hydraulic Pipe Supplier
Stainless steel Hydraulic Tubing Exporter SS 316L Hydraulic Tubing Supplier
stainless steel Hydraulic Line Pipe Supplier Stainless Steel Seamless Hydraulic Tubing Supplier
SS Seamless Hydraulic Tubing Supplier Stainless Steel T2 hydraulic pipe Exporter
304 316 316L Stainless steel Hydraulic Tubing seamless Hydraulic Tubing Manufacturer in India
316 Stainless Steel Hydraulic Tubing Manufacturer in India Stainless Steel Hot Rolled Hydraulic Tubings
hydraulic stainless steel pipe bender stainless steel pipe for hydraulic
Hydraulic Tubing Supplier in India AISI Stainless Steel Hydraulic Tubings

Stainless Steel Hydraulic Tubing Price List

  • stainless steel Hydraulic Tubing
    FOB Price: US $1o00-2100 / Ton
  • 316 stainless steel Hydraulic Tubing
    FOB Price: US $1400-2500 / Ton
  • stainless steel seamless Hydraulic Tubing
    FOB Price: US $1-4000 / Ton
  • 316l Stainless Steel Hydraulic Tubing
    FOB Price: US $1200-2200 / Ton
  • 316L high pressure Stainless Steel Tube
    FOB Price: US $1500-2200 / Ton
  • high quality seamless Hydraulic Tubing
    FOB Price: US $1400-2200 / Metric Ton
  • 304 stainless steel Hydraulic Tubing
    FOB Price: US $1200-2200 / Ton
  • 304l stainless steel Hydraulic Tubing
    FOB Price: US $1200-2000 / Ton
  • China warehouse stainless steel Hydraulic Tubing
    FOB Price: US $1000-2200 / Ton
  • seamless high presure tubing for sale
    FOB Price: US $2100-3500 / Ton
  • High Quality 316 316L 304L 304 Stainless Steel Hydraulic Tubing Price
    FOB Price: US $1200-2200 / Ton
  • ultra high pressure stainless steel Tubing
    FOB Price: US $1000-2500 / Metric Ton
  • Factory wholesale stainless steel Hydraulic Tubing 304 for sale
    FOB Price: US $4-5 / Kilogram
  • price of stainless steel Hydraulic Tubing
    FOB Price: US $1000-3500 / Metric Ton
  • medium pressure stainless steel tubing price
    FOB Price: US $1200-2200 / Metric Ton
  • seamless stainless steel Hydraulic Tubing
    FOB Price: US $1000-2200 / Ton
  • 3/8 Stainless Steel Hydraulic Tubing
    FOB Price: US $690-1200 / Ton
  • 5/16 Stainless Steel Hydraulic Tubing
    FOB Price: US $1000-3000 / Ton
  • hydraulic pipe price
    FOB Price: US $100-1000 / Ton
  • China new 304 stainless steel Hydraulic Tubing price per meter
    FOB Price: US $2-2.5 / Kilogram
  • 1/4" stainless steel Hydraulic Tubing
    FOB Price: US $1500.0-2300.0 / Metric Tons
  • tp316 bright annealed Stainless Steel Hydraulic Tubing
    FOB Price: US $1-30 / Kilogram
  • high pressure polished stainless steel tubing competitive price
    FOB Price: US $800-2000 / Metric Ton
  • 304 Stainless Steel Hydraulic Tubing Manufacturer
    FOB Price: US $780-1690 / Ton
  • China Manufacturers high pressure stainless steel tube
    FOB Price: US $1200-2500 / Ton
  • high pressure seamless tubing
    FOB Price: US $1-15 / Kilogram
  • SS 304/316 Stainless Steel Hydraulic Tubing
    FOB Price: US $1600-2800 / Ton
  • Stainless Steel Hydraulic Tubing manufacturers price
    FOB Price: US $1000-4500 / Ton
  • 304 316 stainless steel Hydraulic Tubing
    FOB Price: US $1000-3500 / Ton

Stainless Steel Hydraulic Tubings Stock Supply Applications

These stainless steel Hydraulic Tubings are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • Stainless Steel Hydraulic Tubing for Aircraft Industry
  • Stainless Steel Hydraulic Tubing for Chemical and petrochemical
  • Stainless Steel Hydraulic Tubing used for Power generation
  • Stainless Steel hydraulic pipe for Renewable energy
  • Stainless Steel Hydraulic Tubing for Pulp and Paper
  • Stainless Steel Hydraulic Tubing for Process piping
  • Stainless Steel hydraulic pipe used for Pharmaceutical
  • Stainless Steel Hydraulic Tubing applications for Food and beverage
  • Stainless Steel Hydraulic Tubing used for Oil and gas
  • Stainless Steel Hydraulic Tubing applications in Mining
  • Stainless Steel Hydraulic Tubing used for Water/waste
  • Stainless Steel Hydraulic Tubing application for Marine Industry
  • SS Hydraulic Tubing application for Fertilizers

Stainless Steel


Stainless Steel Pipe


Stainless Steel Tube

Stainless Steel Gasket

Stainless Steel O Rings


ASTM Standards



Pipe Specifications



Stainless Steel Pipe Weight Calculator
Trilok Steel Industries
