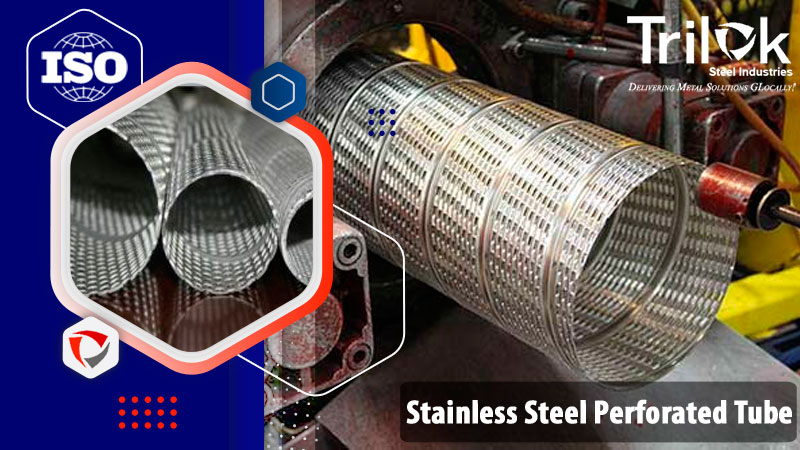

A perforated tube is produced by stamping the metal with machines to create different shapes on the tube. The Perforated Stainless Steel Tubing allows for water to enter and exit easily in the component. They are widely seen in underground drainage and piping systems as they can absorb water easily. SS Perforated Metal Pipe is very strong and provides good structural stability. The holes on these pipes can be punched in different dimensions and shapes, giving them an aesthetical outlook. These pipes allow for creativity using light, sound, and visual depth. The versatile Perforated Stainless Steel Tube is very durable and designed with the best raw materials and machinery. The tubes are highly resistant to corrosive and oxidative media across an array of stress-induced environments. We are the leading Stainless Steel Perforated Tube Manufacturer In India who can provide quality assured products across all our outlets. Our experienced workers can custom-design all our modules in different shapes and sizes as per customer requirements.
The perforated tubes are generally produced in the common 304 and 316 specifications. The A554 Grade 316 Perforated Steel Tube has a good appearance with excellent mechanical properties. These tubes have an excellent chemical composition of nickel, chromium, and molybdenum, making them highly tolerant to different chemical and acid attacks in different conditions. The ASTM A554 Gr 304 Perforated Stainless Steel Pipe is a cost-effective alternative to the 316 grade. These tubes have nearly identical nickel and chromium content but don’t possess any content of molybdenum. This gives them lower resistance to corrosion and pitting in the system. The 304 Stainless Steel Perforated Tube is however very reliable and can be maintained for long periods of time. For any queries or questions about our products or to get a quote on them, contact us or visit any of our outlets for more information.
Table of Content
ASTM | ASTM A249, A269, A270 |
Thickness | 0.2 to 15mm |
Outer Diameter | 1/8 to 24 Inch Nominal bore, 1/4 to 24 Inch Outer Diameter sizes |
Hole size | 3mm dia on a 6mm pitch |
Opening diameter | 0.2 to 100mm |
Mill Test Certificate | EN10204 3.1 |
Finish | BA Finish inside and outside, Perforated finish inside and outside |
Material | SS 304L,SS 304, SS 316L, SS 316,SS201 |
Type | As EFW, Welded, ERW, Semi Seamless, Seamless, Bead Removed |
Packing | Ends Capped, Sleeved, Wooden Boxed |
Per Kg
Filter stainless steel exhaust perforated tube
$ 2.07
Per Kg
stainless steel 304 perforated mesh tubes for motorcycle exhausts
$ 4.03
Per Kg
10mm Outside Diameter SS Exhaust Perforated filter Pipe
$ 3.10
Stainless Steel Perforated Tube
ASTM A554 304 Perforated Round Tubing
316 Mesh Tubing
Perforated Stainless Steel Tubing
A554 Grade 316L Perforated Tubing
Stainless Steel Perforated Pipe
Perforated Round Tubing
304 Stainless Steel Perforated Tube
SS Perforated Tubing
Stainless Steel | Lbs. Per Square Foot | ||||
---|---|---|---|---|---|
Gauge | Minimum of Gauge | Mean of Gauge | Maximum of Gauge | 400 Series | 300 Series |
7 | .1735 | .1875 | .2015 | 7.70 | 7.871 |
8 | .1510 | .1650 | .1790 | 6.78 | 6.930 |
9 | .136 | .150 | .164 | 6.165 | 6.300 |
10 | .129 | .135 | .141 | 5.562 | 5.670 |
11 | .115 | .120 | .125 | 4.944 | 5.040 |
12 | .1004 | .1054 | .1104 | 4.342 | 4.427 |
13 | .0860 | .090 | .094 | 3.708 | 3.780 |
14 | .0711 | .0751 | .0791 | 3.094 | 3.154 |
15 | .0643 | .0673 | .0703 | 2.766 | 2.826 |
16 | .0565 | .0595 | .0625 | 2.451 | 2.499 |
17 | .0508 | .0538 | .0568 | 2.211 | 2.259 |
18 | .045 | .048 | .051 | 1.978 | 2.016 |
19 | .039 | .042 | .045 | 1.726 | 1.764 |
20 | .0335 | .0355 | .0375 | 1.463 | 1.491 |
21 | .0304 | .0324 | .0344 | 1.33 | 1.360 |
22 | .0273 | .0293 | .0313 | 1.207 | 1.231 |
23 | .0249 | .0264 | .0279 | 1.085 | 1.1088 |
24 | .0220 | .0235 | .0250 | .968 | .987 |
25 | .0194 | .0209 | .0224 | .8589 | .8778 |
26 | .0163 | .0178 | .0193 | .7315 | .748 |
27 | .0150 | .0165 | .0180 | .6781 | .693 |
28 | .0136 | .0151 | .0166 | .6206 | .634 |
29 | .0123 | .0138 | .0153 | .5671 | .5796 |
30 | .0110 | .0125 | .0140 | .5137 | .525 |
Holes | Gauge | Open Area | Centers |
---|---|---|---|
1/32 | 26 | 22% | 1/16 |
3/16 | 18,11 | 33% | 5/16 |
050 | 26 | 37% | 5/64 |
1/8 | 26-11 | 40% | 3/16 |
.033 | 26 | 29% | .055 STRAIGHT |
3/64 | 24 | 23% | 3/32 |
1/4 | 20-14,11 | 40% | 3/8 |
.020 | 30 | 20% | .045 |
.050 | 26 | 52% | .066 STRAIGHT |
3/32 | 20,18,16 | 33% | 5/32 |
1/16 | 22 | 40% | 3/32 |
1/4 | 22-16 | 58% | 5/16 |
1/2 | 20,16,14,11 | 48% | 11/16 |
1/16 | 22,26 | 30% | 7/64 |
1/16 | 20,18 | 23% | 1/8 |
5/64 | 22,20 | 35% | 1/8 |
.117 | 22 | 51% | 5/32 |
5/32 | 20-16 | 63% | 3/16 |
3/16 | 24-14 | 51% | 1/4 |
3/8 | 10 | 51% | 1/2 |
3/8 | 18,16,11 | 40% | 9/16 |
3/4 | 11 | 51% | 1 |
Grade | Carbon | Manganese | Phosphorous | Sulphur | Silicon | Chromium | Nickel | Molybdenum |
304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Material | Temperure | Heat | Yield Strength | Tensile Strength | Elongation |
---|---|---|---|---|---|
Min. | Treatment | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
304L | 1900 (1040) | Solution | 25(170) | 70(485) | 35 |
316L | 1900(1040) | Solution | 25(170) | 70(485) | 35 |
304 | 1900 (1040) | Solution | 30(205) | 75(515) | 35 |
316 | 1900(1040) | Solution | 30(205) | 75(515) | 35 |
Grade | Unified Numbering System | Werkstoff Nr. |
---|---|---|
304L | S30403 | 1.4306 |
304 | S30400 | 1.4301 |
316 | S31600 | 1.4436 |
316L | S31603 | 1.4404 |
