SS 304 High Pressure Seamless Tubing and 316 Pressure Tube Supplier in India

Stainless Steel Pressure Tubing Suppliers

A pressure tubing is an industrial-grade that is designed to carry gases and fluids at a pressure higher than normal atmospheric pressures. A Stainless Steel Pressure Tubing is a high-strength flexible module that can withstand heavy loads without inducing any damage or fracture in the system. The High Pressure Stainless Steel Pipe can withstand pressures up to 150,00 pounds per square inch. The pressure ratings determine their utilization in the systems. Amongst their most common uses are their use in the transportation of caustic chemicals, high or low temperature fluids, toxic gases, etc. Ultra High Pressure Stainless Steel Tubing is designed with superior tensile and yield strength. This allows them to work well in very turbulent and reducing environments. Low Pressure Tubing, on the contrary, is a common feature in low pressure applications where the stress and load-bearing capacity on the system is lower.

The pressure tubing grade is designed in 304 and 316 chemical configurations. An SS 304 High Pressure Seamless Tubing is manufactured without any seams or welds and produced via an extrusion process. This tubing is capable of handling high pressure fluids and gases and also exhibits enhanced resistance to oxidative and corrosive media across stress-induced environments. The 316 Pressure Tube can withstand the transmission of high-octane pressure in the system. These tubes are designed with a superior chemical composition giving them an edge over the 304 grade tubes. Our institution believes in quality over anything and makes use of the latest technology and best raw materials to produce top-of-the-line products. If you want to avail our products or want to know more about our items, visit any of our outlets or contact us for more information.

High Pressure Stainless Steel Tubing for High/ Medium Pressure, check price of 1/4 and 3/8 inch Low Pressure Tubing in Mumbai

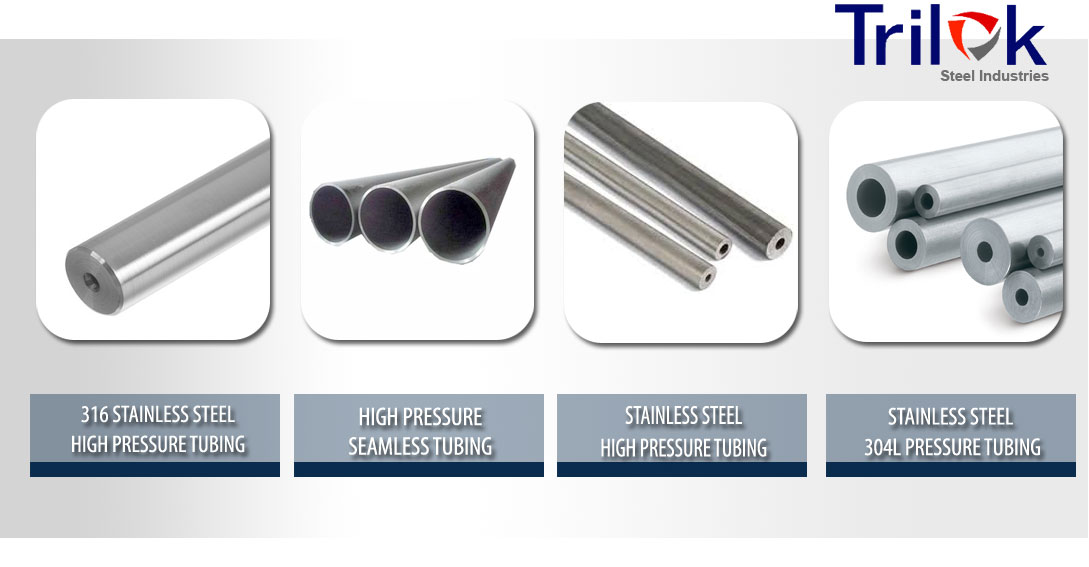

Stainless Steel Pressure Tubing Suppliers

Stainless Steel Pressure Tubing Suppliers

316 Stainless Steel High Pressure Tubing

316 Stainless Steel High Pressure Tubing

High Pressure Seamless Tubing

High Pressure Seamless Tubing


Stainless Steel Pressure Tubing Specification

PED approved High Pressure Stainless Steel Pipe suppliers in India, ask for a free sample now!

Stainless Steel Pressure Tubing Size Range 1/4", 5/16", 3/8", 9/16", and 1"
Stainless Steel Pressure Tubing Max Pressure 19000
Stainless Steel Pressure Tubing Dimenisons ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS
Stainless Steel Pressure Tubing Material SS 304, SS 304L,SS 316,SS 316L
Stainless Steel Pressure Tubing Type As Seamless
Stainless Steel Pressure Tubing Finish SS high pressure tubes and high preesure tubing pipes can be supplied to aircraft industries

All high pressure tubing products supplied to the aerospace industry. As a largest stainless steel pressure tubing Suppliers includes grades stainless Steel 304 Pressure Tubing, Stainless Steel 304L Pressure Tubing, Stainless Steel 316 Pressure Tubing, Stainless steel 316L Pressure Tubing and those are used in various indutsrial applications.

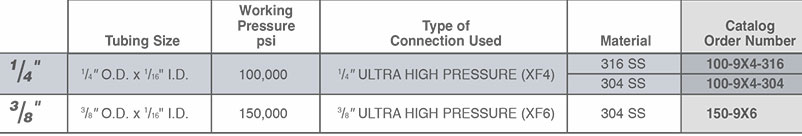

ULTRA HIGH PRESSURE TUBING

STAINLESS STEEL ULTRA HIGH PRESSURE TUBING

Testing of stainless steel high-pressure tubes includes:

  • Examination of dimensions
  • Technological tests
  • Tensile testing
  • Metallographic examination
  • Intergranular corrosion test
  • Eddy Current test

Tests made on request are, for example:

  • Hydrostatic test
  • Fatigue strength up to 4,000 bar
  • Maximum internal pressure up to 15,000 bar
  • Bursting pressure trials

The tests carried out are certified according to DIN EN 10204 3.1. Reception tests according to DIN EN 10204 3.2 by neutral experts can be made on request.

Examinations to determine the cycle fatigue behavior under defined operating conditions can be carried out on request. We offer individual advice.

Our testing laboratory for high-pressure tubes is accredited according to ISO 17025.

stainless Steel Pressure tubing Inspection

The scope of inspection depends on the customer specification.

Supplying 304/ 316 SS High Pressure Seamless Tubing with MTC reports in India, Check Dimension, Size and price list

Types of Stainless Steel Pressure Tubing

SS Pressure Tubing

SS Pressure Tubing

SS 304L Pressure Tubing

SS 304L Pressure Tubing

SS 316 Pressure Tubing

SS 316 Pressure Tubing

Stainless Steel 316L Pressure Tubing

Stainless Steel 316L Pressure Tubing

High Pressure Seamless Tubing

High Pressure Seamless Tubing

Ultra High Pressure Stainless Steel Tubing

Ultra High Pressure Stainless Steel Tubing

Medium Pressure Stainless Steel Tubing

Medium Pressure Stainless Steel Tubing

Stainless Steel Pressure Tubing Suppliers

Stainless Steel Pressure Tubing Suppliers

Stainless Steel Pressure Tubing Sizes

Stainless steel Pressure Tubings are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a stainless steel Pressure Tubing is manufactured according to current standards API, ASTM, and ASME. If required for special projects we can also supply large diameter Pressure Tubings.

Stainless Steel Pressure Tubing Sizes

Dimensions of Stainless Steel Pressure Tubing

High Pressure Tube Nominal OD† OD Tolerance ID Range Pressure Rating*
SS Pressure Tubing 1/4" - 0.007" / + 0.0" .079" / .083" 60,000 psi
SS Pressure Tubing 3/8" - 0.010" / +0.0" .121" / .125" 60,000 psi
SS Pressure Tubing 9/16" - 0.011" / + 0.0" .182" / .187"
.245" / .250"
60,000 psi
40,000 psi
SS Pressure Tubing 3/4" - 0.010" / +0.0" .245" / .250" 60,000 psi
SS Pressure Tubing 1" - 0.010" / +0.0" .432" / .437" 30,000 psi

Ultra High Pressure Tubing Sizes and Pressure Ratings:

  Nominal OD† OD Tolerance ID Pressure Rating*
SS Pressure Tubing 1/4" + 0.004" / - 0.004" 3/32"
1/16"
80,000 psi
114,000 psi
SS Pressure Tubing 3/8" + 0.004" / - 0.004" 1/8"
1/16
90,000 psi
150,000 psi
SS Pressure Tubing 9/16" + 0.004" / - 0.004" 5/16"
3/16"
60,000 psi
90,000 psi

Stainless Steel Medium Pressure Tubing Sizes and Pressure Ratings:

Wide stock of Ultra High Pressure Stainless Steel Tubing, Low Pressure SS Tubing in all grades such as 304, 304L, 316, 316 in Mumbai
Product Nominal OD† OD Tolerance ID Range Pressure Rating*
Stainless Steel Pressure Tubing 1/4" - 0.007" / + 0.0" .104" / .109" 20,000 psi
Stainless Steel Pressure Tubing 3/8" - 0.010" / + 0.0" .198" / .203" 20,000 psi
Stainless Steel Pressure Tubing 9/16" - 0.011" / + 0.0" .307" / .312"
.354" / .359"
20,000 psi
15,000 psi
Stainless Steel Pressure Tubing 3/4" - 0.010" / +0.0" .432" / .437"
.510" / .515"
20,000 psi
15,000 psi
Stainless Steel Pressure Tubing 1" - 0.010" / +0.0" .557" / .562"
.682" / .687"
20,000 psi
15,000 psi

Stainless Steel Pressure Tubing Dimensional Tolerances

TUBE SIZE OD NOMINAL WALL THICKNESS OUTSIDE DIAMETER TOLERANCE LENGTH TOLERANCE WALL THICKNESS TOLERANCE
  (in) (mm) (in) (mm) (in) (mm) (in) (mm) (%)
Stainless Steel Pressure Tubing ½ 12.7 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
Stainless Steel Pressure Tubing ¾ 19.1 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
Stainless Steel Pressure Tubing 1 25.4 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
Stainless Steel Pressure Tubing 38.1 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
Stainless Steel Pressure Tubing 2 50.8 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
Stainless Steel Pressure Tubing 63.5 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
Stainless Steel Pressure Tubing 3 76.2 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
Stainless Steel Pressure Tubing 4 101.6 0.083 2.11 +/-0.015 +/-0.38 +⅛, -0 +3.18, -0 +/-10.0%
Stainless Steel Pressure Tubing 6 152.4 0.109 2.77 +/-0.030 +/-0.76 +1, -0 +25.4, -0 +/-10.0%

Stainless Steel Pressure Tubing Ex- Stock

304 Stainless Steel Pressure Tubing
304L Stainless Steel Pressure Tubing
304H Stainless Steel Pressure Tubing
309 Stainless Steel Pressure Tubing
310 Stainless Steel Pressure Tubing
310S Stainless Steel Pressure Tubing
316 Stainless Steel Pressure Tubing
316L Stainless Steel Pressure Tubing
316Ti Stainless Steel Pressure Tubing
321/321H Stainless Steel Pressure Tubing
347/347H Stainless Steel Pressure Tubing
304 SS Pressure Tubing
304L SS Pressure Tubing
304H SS Pressure Tubing
309 SS Pressure Tubing
310 SS Pressure Tubing
SS Seamless Pressure Tubing
310S SS Pressure Tubing
316 SS Pressure Tubing
316L SS Pressure Tubing
316Ti SS Pressure Tubing
321/321H SS Pressure Tubing
347/347H SS Pressure Tubing
304 Stainless Steel Pressure Tubing
304L Stainless Steel High Pressure Tubing
304H Stainless Steel High Pressure Tubing
309 Stainless Steel High Pressure Tubing
310 Stainless Steel High Pressure Tubing
310S Stainless Steel High Pressure Tubing
316 Stainless Steel High Pressure Tubing
316L Stainless Steel High Pressure Tubing
316Ti Stainless Steel High Pressure Tubing
321/321H Stainless Steel High Pressure Tubing
347/347H Stainless Steel High Pressure Tubing

Stainless Steel Pressure Tubing Chemical Composition

The below table shows the chemical composition of the used for Stainless Steel Pressure Tubing:

Chemical Composition % Cr Ni C Mg Mo Si P S
304 (UNS S30400) 18.0 – 20.0 8.0 – 11.0 0.08 (max) 2.00 -. 1.00 0.045 (max) .030 (max)
316/L (UNS S31600 / S31603) 16.0 – 18.0 10.0 – 14.0 0.03 (max) 2.00 2.0 – 3.0 1.00 0.045 (max) .030 (max)
317L (UNS S31703) 18.0 – 20.0 11.0 – 15.0 .035 (max) 2.00 3.0 – 4.0 1.00 0.045 (max) .030 (max)

Stainless Steel Pressure Tubing Mechanical Properties

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35

Stainless Steel High Pressure Tubing Equivalent Grades

GRADE UNS NO DIN/WERKSTOFF
Stainless Steel 304 Pressure Tubing S30400 1.4301
Stainless Steel 304H Pressure Tubing S30409
Stainless Steel 304L Pressure Tubing S30403 1.4306
Stainless Steel 310S Pressure Tubing S31008 1.4845
Stainless Steel 316S Pressure Tubing S31600 1.4436
Stainless Steel 316H Pressure Tubing S31609
Stainless Steel 316 TI Pressure Tubing S31635 1.4571
Stainless Steel 316L (2.5 MIN MOLY) Pressure Tubing S31603 1.4435
Stainless Steel 316L Pressure Tubing S31603 1.4404
Stainless Steel 317L Pressure Tubing S31703 1.4438
Stainless Steel 321 Pressure Tubing S32100 1.4541
Stainless Steel 321H Pressure Tubing S32109
Stainless Steel 347 Pressure Tubing S34700 1.4550

Available Stock of SS Pressure Tubing

Stainless Steel Pressure Tubing Importer Stainless Steel Seamless Pressure Tubing Supplier
High Pressure Stainless Steel Tubings Stainless Steel High Pressure Tubing Manufacturer in India
Seamless High Pressure Stainless Steel Tubing Suppliers High Pressure Seamless Tubing Importer
Seamless Stainless Steel Pressure Tubing Supplier 1/4" Stainless Steel Pressure Tubing Trader
Stainless Steel 304 Pressure Tubing Manufacturers in India Distributors of SS 304 Pressure Tubing
Stainless Steel Pressure Tubing Manufacturer in India 3/8 high Pressure stainless steel tubing Exporter
304 Stainless Steel Pressure Tubing 316L Stainless Steel Pressure Tubing
Stainless Steel Pressure Tubing Weight Per Foot Available different Stainless Steel High Pressure Tubing Grades
9/16" Stainless Steel Pressure Tubings Supplier Polished 316 Stainless Steel Pressure Tubing Supplier
Stainless Steel Pressure Tubing Weight Chart India Stainless Steel High Pressure Tubing Properties
Stainless Steel 304 Pressure Tubing Manufacturer in India Stainless Steel 304 / 304L Pressure Tubing Manufacturer in India
SS Pressure Tubing Manufacturer in India 316 Stainless Steel Pressure Tubing Supplier
304 Stainless Steel Pressure Tubing supplier Utlra Pressure Stainless Steel Tubing Supplier
Dealers of SS Seamless Pressure Tubing Seamless Pressure Tubing Exporters
stainless steel High Pressure Tubing stockist 3/8" OD up to 20000 psi Stainless Steel Pressure Tubing
Mirror Polished stainless steel Pressure Tubing Supplier High Pressure Stainless Steel Seamless Tubings Supplier
high quality stainless steel Pressure Tubing Supplier 316 Stainless Steel Pressure Tubing Manufacturer in India
stainless steel Pressure Tubing Importer ASTM / ASME Stainless Steel Pressure Tubing Supplier
stainless steel High Pressure Tubing Trader SS 304l Pressure Tubing Supplier
Stainless steel Pressure Tubing Exporter SS 316L Pressure Tubing Supplier
stainless steel High Pressure Tubing Supplier Stainless Steel Seamless High Pressure Tubing Supplier
SS Seamless Pressure Tubing Supplier Stainless Steel T2 High Pressure Tubing Exporter
304 316 316L Stainless steel Pressure Tubing Suppliers seamless high pressure tubing Manufacturer in India
316 Stainless Steel High Pressure Tubing Stainless Steel Hot Rolled Pressure Tubings
High Pressure Tubing Supplier in India AISI Stainless Steel Pressure Tubings

Stainless Steel Pressure Tubing Price List

  • stainless steel Pressure Tubing
    FOB Price: US $1o00-2100 / Ton
  • 316 stainless steel Pressure Tubing
    FOB Price: US $1400-2500 / Ton
  • stainless steel seamless Pressure Tubing
    FOB Price: US $1-4000 / Ton
  • 316l Stainless Steel Pressure Tubing
    FOB Price: US $1200-2200 / Ton
  • 316L high pressure Stainless Steel Tube
    FOB Price: US $1500-2200 / Ton
  • high quality seamless Pressure Tubing
    FOB Price: US $1400-2200 / Metric Ton
  • 304 stainless steel Pressure Tubing
    FOB Price: US $1200-2200 / Ton
  • 304l stainless steel Pressure Tubing
    FOB Price: US $1200-2000 / Ton
  • China warehouse stainless steel Pressure Tubing
    FOB Price: US $1000-2200 / Ton
  • seamless high presure tubing for sale
    FOB Price: US $2100-3500 / Ton
  • High Quality 316 316L 304L 304 Stainless Steel Pressure Tubing Price
    FOB Price: US $1200-2200 / Ton
  • ultra high pressure stainless steel Tubing
    FOB Price: US $1000-2500 / Metric Ton
  • Factory wholesale stainless steel Pressure Tubing 304 for sale
    FOB Price: US $4-5 / Kilogram
  • price of stainless steel Pressure Tubing
    FOB Price: US $1000-3500 / Metric Ton
  • medium pressure stainless steel tubing price
    FOB Price: US $1200-2200 / Metric Ton
  • seamless stainless steel Pressure Tubing
    FOB Price: US $1000-2200 / Ton
  • 3/8 Stainless Steel Pressure Tubing
    FOB Price: US $690-1200 / Ton
  • 5/16 Stainless Steel Pressure Tubing
    FOB Price: US $1000-3000 / Ton
  • High Pressure Tubing price
    FOB Price: US $100-1000 / Ton
  • China new 304 stainless steel Pressure Tubing price per meter
    FOB Price: US $2-2.5 / Kilogram
  • 1/4" stainless steel Pressure Tubing
    FOB Price: US $1500.0-2300.0 / Metric Tons
  • tp316 bright annealed Stainless Steel Pressure Tubing
    FOB Price: US $1-30 / Kilogram
  • high pressure polished stainless steel tubing competitive price
    FOB Price: US $800-2000 / Metric Ton
  • 304 Stainless Steel Pressure Tubing Manufacturer
    FOB Price: US $780-1690 / Ton
  • China Manufacturers high pressure stainless steel tube
    FOB Price: US $1200-2500 / Ton
  • high pressure seamless tubing
    FOB Price: US $1-15 / Kilogram
  • SS304/316 Stainless Steel Pressure Tubing
    FOB Price: US $1600-2800 / Ton
  • Stainless Steel Pressure Tubing manufacturers price
    FOB Price: US $1000-4500 / Ton
  • 304 316 stainless steel Pressure Tubing
    FOB Price: US $1000-3500 / Ton

Stainless Steel Pressure Tubings Stock Supply Applications

These stainless steel Pressure Tubings are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • Stainless Steel Pressure Tubing for Aircraft Industry
  • Stainless Steel Pressure Tubing for Chemical and petrochemical
  • Stainless Steel Pressure Tubing used for Power generation
  • Stainless Steel High Pressure Tubing for Renewable energy
  • Stainless Steel Pressure Tubing for Pulp and Paper
  • Stainless Steel Pressure Tubing for Process piping
  • Stainless Steel High Pressure Tubing used for Pharmaceutical
  • Stainless Steel Pressure Tubing applications for Food and beverage
  • Stainless Steel Pressure Tubing used for Oil and gas
  • Stainless Steel Pressure Tubing applications in Mining
  • Stainless Steel Pressure Tubing used for Water/waste
  • Stainless Steel Pressure Tubing application for Marine Industry
  • SS Pressure Tubing application for Fertilizers
Trilok Steel Industries
