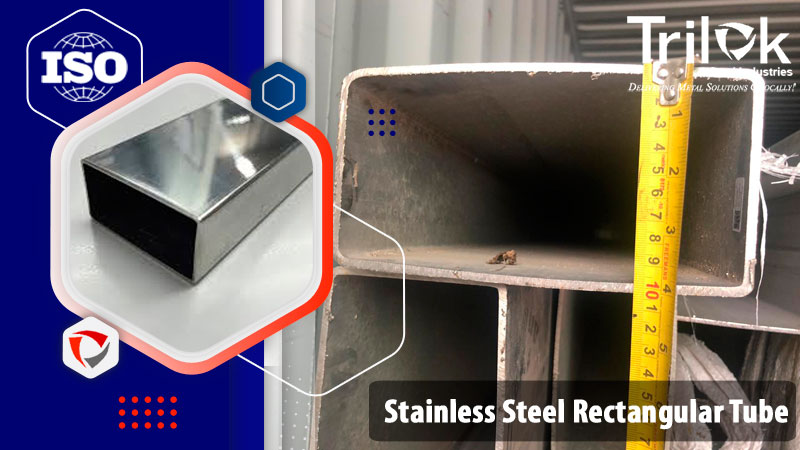

A SS rectangular tube is made with a uniform rectangular cross section. The Stainless Steel Rectangular Tube is a box section grade that is designed to provide stability and strength to different applications. Designed with a superior content of chromium these tubes have excellent resistance to corrosive and reducing media. The high-strength SS Rect tube can handle high-temperature systems and dosn’t easily disorientate under extreme pressures. The rich vein of features in these tubes allows them to be employed in different applications. We are the Stainless Steel Rectangular Tube manufacturer in India who has a reputation for producing the best materials. Our workers make use of the latest technology and best raw materials to have an edge in the market.
The versatile grade of rectangular tubes are produced in the 304 and 316 configurations. ASTM A554 Gr 304 Rectangular Pipe is an austenitic stainless steel grade designed with a superior content of chromium and nickel embedded in them. This content makes these pipes well suited for use in reducing or oxidative media. The 304L Stainless Steel Rectangular Tube is a low-carbon module that protects the tube against sensitization, allowing the tubes to be subsequently welded in place using standard procedures. A SS 316 Rectangular tubing has near identical content of nickel and chromium, but the addition of molybdenum gives them enhanced resistance to pitting, especially in marine ecosystems. Similar to the 304l grade, the 316L Stainless Steel Rectangular Tube is a low-carbon constituent of this module. These tubes are easy to machine and weld when compared to the original grade. These tubes can be processed in seamless or welded configurations. The SS Rectangular Welded Pipes are designed with welds or seams and are very durable and reliable. If you have any questions or queries about the product type, contact us for more information.
Table of Content
Size | 20*40, 20*60, 50*100, 15*30, 12.75*5.4, 10*0, 25*50, 40*80, 45*75, 20*50, 10*30, 40*60 |
---|---|
Tolerance on Length | Commercial Length: 6000 +/- 30 mm Fix Length: from 1200 up to 12000 mm with a tolerance up to -0/+ 5mm |
Grades | 316, 304, 316L, 201, 304L |
Standards | A312 A358 A409 A554 A778 A789 A790 |
Finish | Pickled, Polished Grit 120 - 600, Welded, Seamless, Brushed, Solution Annealed and Pickled up to O.D. 219.1 mm ,Mirror Polished |
Per Kg
80 * 80 Profile Stainless Steel Rectangular Steel Pipe
$ 7.22
Per Kg
400x400 Stainless steel rectangular tube
$ 4.64
Per Kg
2x2x1 8 Stainless steel rectangular Steel Pipe tube
$ 5.68
Stainless Steel Rectangular Tube
ASTM A554 Gr 304 Rectangular Pipe
SS 316 Rectangular tubing
SS 316L Rectangle Pipe
2x4 SS Rectangle Pipe
welded 304 Stainless Steel Rectangular Tube
304 Stainless Steel Rectangular Tube
ASTM A554 Gr.304L Rectangle Pipe
ASTM A312 Grade 316 Rectangular Tubing
Nominal Pipe Size Designator | Permissible Variations in Outside Diameter | |
---|---|---|
Over In. | Under In. | |
Over 8 to 18, Include | 3/23 (0.093) | 1/32 (0.031) |
Over 1-1/2 to 4, Include | 1/32 (0.031) | 1/32 (0.031) |
1/8 to 1-1/2, Include | 1/64 (0.015) | 1/32 (0.031) |
Over 4 to 8, Include | 1/16 (0.062) | 1/32 (0.031) |
Nominal Pipe Size | Outside Diameter | Wall Thickness | Weight | Weight | |||
Inch | mm | Schedule | Inch | mm | Lb/ft | kg/Mtr | |
1 1/2 | 1.900 | 48 | 40 STD | 0.145 | 3.683 | 2.718 | 4.048 |
80 STD | 0.200 | 5.080 | 3.361 | 5.409 | |||
1/2 | 0.840 | 21 | 40 STD | 0.109 | 2.769 | 0.851 | 1.268 |
80 STD | 0.147 | 3.734 | 1.088 | 1.621 | |||
1 1/4 | 1.660 | 42 | 40 STD | 0.140 | 3.556 | 2.273 | 3.385 |
80 STD | 0.191 | 4.851 | 2.997 | 4.464 | |||
1 | 1.315 | 33 | 40 STD | 0.133 | 3.378 | 1.679 | 2.501 |
80 STD | 0.179 | 4.547 | 2.172 | 3.325 | |||
8 | 8.625 | 219 | 0.188 | 4.775 | 16.940 | 25.233 | |
0.203 | 5.156 | 18.259 | 27.198 | ||||
0.219 | 5.563 | 19.661 | 29.286 | ||||
20 | 0.250 | 6.350 | 22.361 | 33.308 | |||
30 | 0.277 | 7.036 | 24.696 | 36.786 | |||
40 | 0.322 | 8.179 | 28.554 | 42.352 | |||
0.375 | 9.525 | 33.041 | 49.216 | ||||
60 | 0.406 | 10.312 | 35.638 | 53.085 | |||
80 XHY | 0.500 | 12.700 | 43.388 | 64.627 | |||
2 | 2.375 | 60 | 40 STD | 0.154 | 3.912 | 3.653 | 5.441 |
80 STD | 0.218 | 5.537 | 5.022 | 7.480 | |||
2 1/2 | 2.875 | 73 | 40 STD | 0.203 | 5.516 | 5.793 | 8.629 |
80 STD | 0.276 | 7.010 | 7.661 | 11.411 | |||
4 | 4.500 | 114 | 0.237 | 6.020 | 10.790 | 16.073 | |
0.337 | 8.560 | 14.983 | 22.318 | ||||
6 | 6.625 | 168 | 0.188 | 4.775 | 12.924 | 19.252 | |
0.203 | 5.516 | 13.923 | 20.739 | ||||
0.219 | 5.563 | 14.983 | 22.318 | ||||
0.250 | 6.350 | 17.021 | 25.354 | ||||
40 STD | 0.280 | 7.112 | 18.974 | 58.263 | |||
0.312 | 7.925 | 21.036 | 31.334 | ||||
0.375 | 9.525 | 25.031 | 37.285 | ||||
80 XHY | 0.432 | 10.973 | 28.573 | 42.561 | |||
0.500 | 12.700 | 32.708 | 48.719 | ||||
20 | 20.000 | 508 | 0.250 | 6.350 | 52.733 | 78.547 | |
0.282 | 7.163 | 59.386 | 88.458 | ||||
0.312 | 7.925 | 65.604 | 97.719 | ||||
20 STD | 0.375 | 9.525 | 78.598 | 117.075 | |||
0.438 | 11.125 | 91.508 | 136.305 | ||||
30 XHY | 0.500 | 12.700 | 104.130 | 155.106 | |||
40 | 0.594 | 15.088 | 123.110 | 183.378 | |||
0.625 | 15.875 | 129.328 | 192.640 | ||||
0.688 | 17.475 | 141.901 | 211.368 | ||||
10 | 10.750 | 273 | 0.188 | 4.775 | 21.207 | 31.588 | |
0.219 | 5.563 | 24.631 | 36.689 | ||||
20 | 0.250 | 6.350 | 28.035 | 41.759 | |||
30 | 0.307 | 7.798 | 34.240 | 51.002 | |||
0.344 | 8.738 | 38.231 | 56.946 | ||||
40 STD | 0.365 | 9.271 | 40.483 | 63.301 | |||
0.438 | 11.125 | 48.238 | 71.852 | ||||
60 XHY | 0.500 | 12.700 | 54.735 | 81.530 | |||
80 | 0.594 | 15.088 | 64.429 | 95.969 | |||
42 | 42.000 | 1067 | 0.312 | 7.925 | 138.911 | 206.914 | |
STD | 0.375 | 9.525 | 166.708 | 248.319 | |||
XHY | 0.500 | 12.700 | 221.610 | 33.097 | |||
0.750 | 19.050 | 330.413 | 492.163 | ||||
12 | 12.750 | 324 | 0.188 | 4.775 | 25.222 | 37.570 | |
0.219 | 5.563 | 29.309 | 43.657 | ||||
0.250 | 6.350 | 33.375 | 49.713 | ||||
0.281 | 7.137 | 37.420 | 55.739 | ||||
0.312 | 7.925 | 41.445 | 61.735 | ||||
0.375 | 9.525 | 49.562 | 73.824 | ||||
0.406 | 10.312 | 53.525 | 79.727 | ||||
0.500 | 12.700 | 65.415 | 97.438 | ||||
0.562 | 14.275 | 73.154 | 108.966 | ||||
3 | 3.500 | 89 | 40 STD | 0.216 | 5.486 | 7.576 | 11.284 |
80 STD | 0.300 | 7.620 | 10.253 | 15.272 | |||
14 | 14.000 | 356 | 0.188 | 4.775 | 27.732 | 41.308 | |
0.219 | 5.563 | 32.233 | 48.012 | ||||
20 | 0.250 | 6.350 | 36.713 | 54.685 | |||
0.281 | 7.137 | 41.172 | 61.327 | ||||
0.312 | 7.925 | 45.611 | 67.939 | ||||
STD | 0.375 | 9.525 | 54.568 | 81.281 | |||
40 | 0.438 | 11.125 | 63.441 | 94.498 | |||
XHY | 0.500 | 12.700 | 72.090 | 107.381 | |||
0.625 | 15.875 | 89.278 | 132.983 | ||||
16 | 16.000 | 406 | 0.188 | 4.775 | 21.748 | 47.290 | |
0.219 | 5.563 | 36.910 | 54.980 | ||||
10 | 0.250 | 6.350 | 42.053 | 62.639 | |||
0.281 | 7.137 | 47.174 | 70.268 | ||||
20 | 0.312 | 7.925 | 52.275 | 77.866 | |||
0.344 | 8.738 | 57.519 | 85.677 | ||||
30 STD |
0.375 | 9.525 | 62.578 | 93.213 | |||
0.438 | 11.125 | 72.797 | 108.433 | ||||
40 XHY |
0.500 | 12.700 | 82.770 | 123.289 | |||
18 | 18.000 | 457 | 0.219 | 5.563 | 41.588 | 61.948 | |
0.250 | 6.350 | 47.393 | 70.593 | ||||
0.281 | 7.137 | 53.176 | 79.208 | ||||
20 | 0.312 | 7.925 | 58.939 | 87.792 | |||
STD | 0.375 | 9.525 | 70.588 | 105.144 | |||
30 | 0.438 | 11.125 | 82.152 | 122.369 | |||
XHY | 0.500 | 12.700 | 93.450 | 139.198 | |||
40 | 0.562 | 14.275 | 104.666 | 155.904 | |||
0.625 | 15.875 | 115.978 | 172.754 | ||||
24 | 24.000 | 610 | 0.250 | 6.350 | 63.413 | 94.456 | |
0.281 | 7.137 | 71.183 | 106.029 | ||||
0.312 | 7.925 | 18.932 | 117.573 | ||||
20 STD | 0.375 | 9.525 | 64.618 | 140.938 | |||
0.438 | 11.125 | 110.219 | 164.176 | ||||
XHY | 0.500 | 12.700 | 125.490 | 186.923 | |||
0.625 | 15.875 | 156.028 | 232.410 | ||||
40 | 0.688 | 17.475 | 171.293 | 255.148 | |||
0.750 | 19.050 | 186.233 | 277.401 | ||||
30 | 30.000 | 762 | 0.250 | 6.350 | 79.433 | 118.318 | |
0.281 | 7.137 | 89.189 | 132.851 | ||||
10 | 0.312 | 7.925 | 98.925 | 147.353 | |||
STD | 0.375 | 9.525 | 118.648 | 176.731 | |||
0.438 | 11.125 | 138.286 | 205.983 | ||||
20 XHY | 0.500 | 12.700 | 157.530 | 234.647 | |||
30 | 0.625 | 15.875 | 196.078 | 292.066 | |||
0.688 | 17.475 | 215.380 | 320.817 | ||||
0.750 | 19.050 | 234.293 | 348.988 | ||||
3/4 | 1.050 | 27 | 40 STD | 0.113 | 2.870 | 1.131 | 1.684 |
80 STD | 0.154 | 3.912 | 1.474 | 2.195 | |||
36 | 36.000 | 914 | 0.250 | 6.350 | 95.453 | 142.180 | |
0.281 | 7.137 | 107.196 | 159.672 | ||||
10 | 0.312 | 7.925 | 118.918 | 177.133 | |||
STD | 0.375 | 9.525 | 142.678 | 215.525 | |||
0.438 | 11.125 | 166.353 | 247.790 | ||||
20 XHY | 0.500 | 12.700 | 198.570 | 282.372 | |||
0.625 | 15.875 | 236.128 | 351.723 | ||||
0.688 |
17.475 | 259.467 | 386.487 | ||||
0.750 |
19.050 | 282.353 | 420.576 | ||||
48 | 48.000 | 1219 | STD | 0.375 | 9.525 | 190.738 | 284.112 |
0.438 | 11.125 | 222.487 | 331.404 | ||||
XHY | 0.500 | 12.700 | 253.650 | 377.822 | |||
0.750 | 19.050 | 378.473 | 563.750 | ||||
0.875 | 22.225 | 440.383 | 655.969 |
Outer Diameter in Mm |
Wall Thickness in Mm | Sizes Inch. | Schedule | Kg/m |
---|---|---|---|---|
17.15 | 3.20 | 3/8 | 80S | 1.12 |
168.28 | 14.27 | 6 | 120 | 54.75 |
13.72 | 2.24 | 1/4 | 40S | 0.64 |
13.72 | 3.02 | 1/4 | 80S | 0.81 |
13.72 | 1.65 | 1/4 | 10S | 0.50 |
21.34 | 3.73 | 1/2 | 80S | 1.65 |
42.16 | 4.85 | 1¼ | 80S | 4.53 |
17.15 | 1.65 | 3/8 | 10S | 0.64 |
17.15 | 2.31 | 3/8 | 40S | 0.86 |
21.34 | 2.11 | 1/2 | 10S | 1.02 |
21.34 | 2.77 | 1/2 | 40S | 1.29 |
26.67 | 2.11 | 3/4 | 10S | 1.30 |
26.67 | 2.87 | 3/4 | 40S | 1.71 |
26.67 | 3.91 | 3/4 | 80S | 2.23 |
48.26 | 5.08 | 1½ | 80S | 5.49 |
33.40 | 2.77 | 1 | 10S | 2.13 |
48.26 | 2.77 | 1½ | 10S | 3.16 |
33.40 | 3.38 | 1 | 40S | 2.54 |
33.40 | 4.55 | 1 | 80S | 3.29 |
33.40 | 6.352) | 1 | 160 | 4.30 |
168.28 | 10.97 | 6 | 80S | 43.21 |
42.16 | 2.77 | 1¼ | 10S | 2.73 |
42.16 | 3.56 | 1¼ | 40S | 3.44 |
42.16 | 6.352) | 1¼ | 160 | 5.69 |
48.26 | 3.68 | 1½ | 40S | 4.11 |
60.33 | 2.77 | 2 | 10S | 3.99 |
60.33 | 3.91 | 2 | 40S | 5.52 |
60.33 | 5.54 | 2 | 80S | 7.60 |
60.33 | 8.742) | 2 | 160 | 11.29 |
73.03 | 3.05 | 2½ | 10S | 5.35 |
73.03 | 5.16 | 2½ | 40S | 8.77 |
73.03 | 7.01 | 2½ | 80S | 11.59 |
88.90 | 3.05 | 3 | 10S | 6.56 |
88.90 | 5.49 | 3 | 40S | 11.47 |
88.90 | 7.62 | 3 | 80S | 15.51 |
168.28 | 3.4 | 6 | 10S | 14.04 |
88.90 | 11.132) | 3 | 160 | 21.67 |
101.60 | 3.05 | 3½ | 10S | 7.53 |
141.30 | 9.53 | 5 | 80S | 31.44 |
101.60 | 5.74 | 3½ | 40S | 13.78 |
101.60 | 8.08 | 3½ | 80S | 18.92 |
114.30 | 3.05 | 4 | 10S | 8.50 |
114.30 | 6.02 | 4 | 40S | 16.32 |
114.30 | 8.56 | 4 | 80S | 22.67 |
114.30 | 13.492) | 4 | 160 | 34.05 |
141.30 | 6.55 | 5 | 40S | 22.10 |
141.30 | 15.882) | 5 | 160 | 49.87 |
168.28 | 7.11 | 6 | 40S | 28.69 |
168.28 | 18.262) | 6 | 160 | 68.59 |
219.08 | 8.18 | 8 | 40S | 43.20 |
219.08 | 12.7 | 8 | 80S | 65.63 |
219.08 | 18.23 | 8 | 120 | 91.30 |
219.08 | 23.012) | 8 | 160 | 112.97 |
Grades | Carbon | Manganese | Phosphorous | Sulphur | Silicon | Chromium | Nickel | Molybdenum |
---|---|---|---|---|---|---|---|---|
304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Material | Temperure | Heat | Yield Strength | Tensile Strength | Elongation |
---|---|---|---|---|---|
Min. | Treatment | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
304 | 1900 (1040) | Solution | 30(205) | 75(515) | 35 |
304L | 1900 (1040) | Solution | 25(170) | 70(485) | 35 |
316 | 1900(1040) | Solution | 30(205) | 75(515) | 35 |
316L | 1900(1040) | Solution | 25(170) | 70(485) | 35 |
