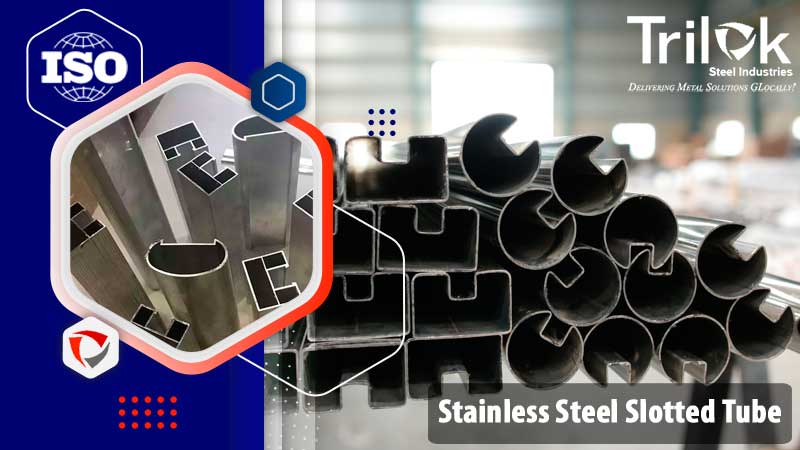

A slotted tube is punched with machines creating different designs. The SS Slotted Tubing are high-strength components that are designed to be tolerant against corrosive and oxidative media across stress-induced setups. Stainless Steel Square Slotted Tube is designed with a square cross sectional area. These tubes can be produced in both seamless and welded configurations and are generally available in thickness between 0.10mm up to 4mm. The SS oval slotted Tubing has an elongated shape and is very compact. The tubes in this grade are very compact and require little space to be installed. They can be customized in an array of shapes and sizes as per customer requirements. Our Institution is a Stainless Steel Slotted Tube Manufacturer In India who believes in quality over anything. We have a good reputation in the industry and have a very low return rate. Our tie-up with the best logistical and supply chains allows us to transport products to your doorstep on short notice.
The ASTM A554 Grade 304 Slotted Pipe is designed with a superior composition of 18/8 chromium and nickel, allowing these tubes to have enhanced tolerance and resistance across stress-induced setups. ASME SA554 Gr 316 Slotted Square Pipe is designed for use in high pressure and temperature applications. These pipes have nearly identical chromium and nickel content, but the presence of molybdenum within these tubes gives them enhanced resistance to pitting that the SS304 tubes are susceptible to. The SS 316L double slotted tubing has two slots on the surface. This tubing is a low-carbon grade that is resistant to sensitization and can be welded very easily in place. If you want to avail our products or want to know more about our items, visit any of our outlets or contact us for more information.
Table of Content
Specification | Stainless Steel Slotted Tube |
Standards | ASTM A790, ASTM 213, ASTM A312, ASTM A268, ASTM A270, ASTM A789, ASTM A269, ASTM A554, ASTM A358 |
Test Certificates | EN 10204 3.1 |
Side Length | 40 to 80 mm |
Outer Diameter | 25*25 to 50*100 |
Slot Width and Height | 10 to 30 mm |
Type | Cold Drawn, Hot Rolled, Casting, Hot Drawn, Cold Rolled, Forged |
Surface Finish | NO.2D, Pickling, Annealed, NO.1, NO.2B, NO.400 BA/2B, BA, NO.4, NO.240, NO.3, NO.7, NO.320, HL, NO.8, |
Inspection | Buyer Inspection, Seller Inspection or Third Party Inspection |
Per Kg
304 stainless steel perforated slotted round tube
$ 9.33
Per Kg
Stainless Steel Double slotted Round Tube
$ 10.36
Per Kg
Stainless Handrail slotted Rectangular Steel Tube
$ 4.14
Stainless Steel Slotted Tubes
SS Slotted Tubing
ASTM A554 Grade 304 Slotted Pipe
ASME Sa554 Gr 316 Slotted Square Pipe
ASTM A554 Type 304l Slotted Pipe
Stainless Steel Square Slotted Tube
SS 316l Double Slotted Tubing
Slotted Aluminum Square Tubing
Stainless Steel Slotted Handrail Tube
Grade | Molybdenum | Manganese | Carbon | Silicon | Sulfur | Phosphorus | Nitrogen | Chromium | Nickel | |
304L | Minimum | 18 | 8 | |||||||
Maximum | 2 | 0.03 | 0.75 | 0.03 | 0.045 | 0.1 | 20 | 12 | ||
304H | min. | 0.04 | 18 | 8 | ||||||
max. | 2 | 0.1 | 0.75 | 0.03 | 0.045 | 20 | 10.5 | |||
304 | min. | 18 | 8 | |||||||
max. | 2 | 0.08 | 0.75 | 0.03 | 0.045 | 0.1 | 20 | 10.5 | ||
446 | min. | 0.1 | 23 | |||||||
max. | 1.5 | 0.2 | 0.75 | 0.03 | 0.04 | 0.25 | 30 | 0.5 | ||
310 | min. | 0.1 | 24.0 | 19.0 | ||||||
max. | 2 | 0.015 | 0.15 | 0.015 | 0.02 | 26.0 | 21.0 | |||
316 | min. | 2.0-3.0 | 16.0 | 10.0 | ||||||
max. | 2 | 0.035 | 0.75 | 0.03 | 0.045 | 18.0 | 14.0 | |||
316L | min. | 2.0-3.0 | 16 | 10 | ||||||
max. | 2 | 0.035 | 0.75 | 0.03 | 0.045 | 18 | 14 | |||
310S | min. | 0.75 | 24 | 19 | ||||||
max. | 2 | 0.08 | 1 | 0.03 | 0.045 | 26 | 22 | |||
316TI | min. | 2.0-3.0 | 16 | 10 | ||||||
max. | 2 | 0.08 | 0.75 | 0.03 | 0.045 | 0.1 | 18 | 14 | ||
317 | min. | 3.0-4.0 | 18 | 11 | ||||||
max. | 2 | 0.08 | 1 | 0.03 | 0.04 | 20 | 14 | |||
347 | min. | 17 | 9 | |||||||
max. | 2 | 0.08 | 1 | 0.03 | 0.04 | 20 | 13 | |||
317L | min. | 3.0-4.0 | 18 | 11 | ||||||
max. | 2 | 0.08 | 1 | 0.03 | 0.04 | 20 | 15 | |||
410 | min. | 11.5 | ||||||||
max. | 1 | 0.15 | 1 | 0.03 | 0.04 | 13.5 | 0.75 | |||
904L | min. | 4.0-5.0 | 1 | 19 | 23 | |||||
max. | 2 | 0.2 | 1 | 0.035 | 0.045 | 2 | 23 | 28 |
Grade | Yield Strength | Tensile Strength (MPa) min | Elongation | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316L | 170 | 485 | 40 | 95 | 217 |
304L | 170 | 485 | 40 | 92 | 201 |
304H | 205 | 515 | 40 | 92 | 201 |
304 | 205 | 515 | 40 | 92 | 201 |
316 | 205 | 515 | 40 | 95 | 217 |
317 | 205 | 515 | 35 | 75 | 205 |
310S | 205 | 515 | 40 | 95 | 217 |
317L | 205 | 515 | 35 | 75 | 205 |
310 | 205 | 515 | 40 | 95 | 217 |
347 | 205 | 515 | 40 | 92 | 201 |
347H | 205 | 515 | 35 | 92 | 201 |
410 | 275 | 480 | 16 | 92 | 201 |
446 | 275 | 485 | 20 | 92 | 201 |
904L | 220 | 490 | 35 | 70-90 typical |
Outside Diameter | Suitable For | "U" Channel |
In MM | W/T of glass | Size in Mm |
42.4 | 8 ~ 15 | 20 X 20 |
50.8 | 8 ~ 12 | 15 X 15 |
63.5 | 8 ~ 15 | 20 X 20 |
76.2 | 8 ~ 22 | 25 X 25 |
